ASROCK MOTHERBOARD Intel Gen B660 m-ITX B660M ITX AC

Detail ASROCK MOTHERBOARD Intel Gen B660 m-ITX B660M ITX AC

Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

B660M-ITX/ac
Supports 12th Gen Intel® Core™ Processors (LGA1700)
6 Phase Dr.MOS Power Design
Supports DDR4 5000MHz (OC)
1 PCIe 4.0 x16

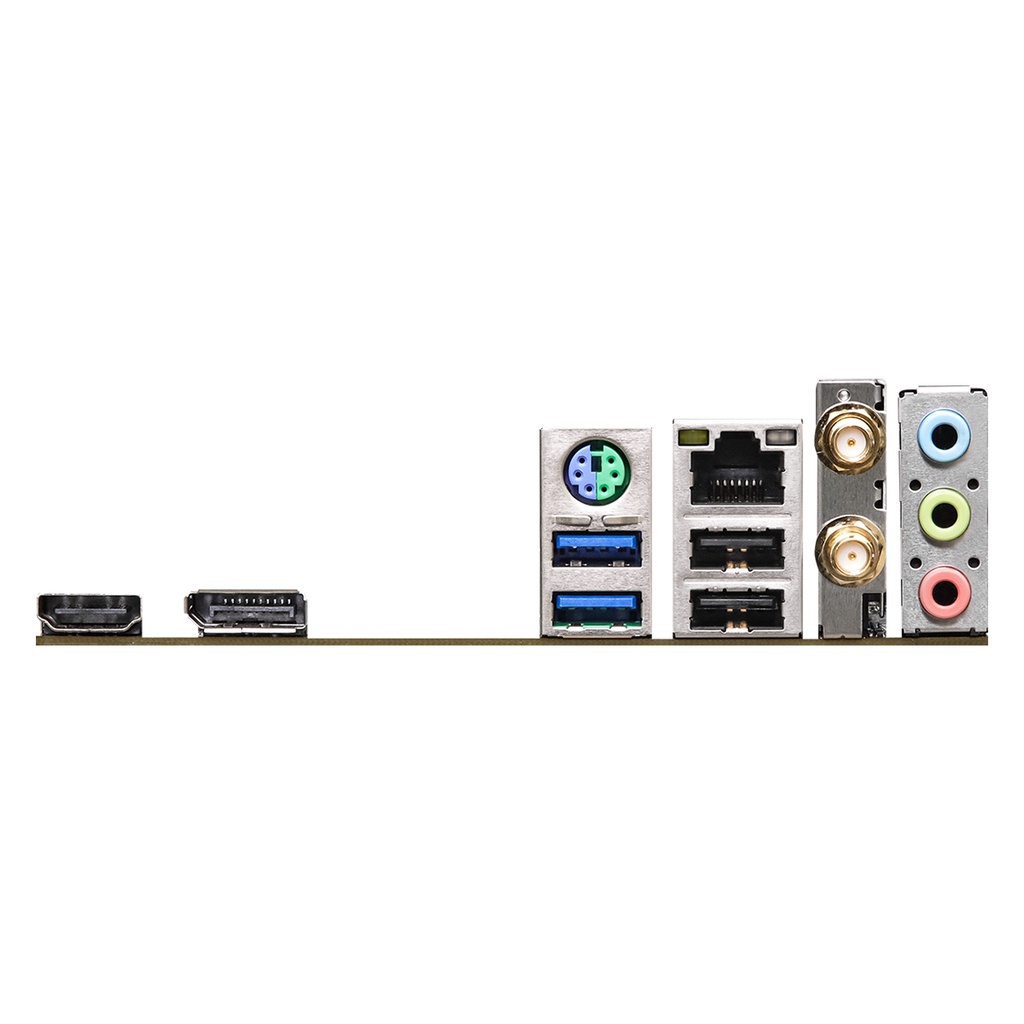

Graphics Output Options: HDMI, DisplayPort
Realtek ALC897 7.1 CH HD Audio Codec
4 SATA3
1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
5 USB 3.2 Gen1 (2 Front, 2 Rear, 1 Front Type-C)
4 Rear USB 2.0 (2 Front, 2 Rear)
Intel® Gigabit LAN
Intel® 802.11ac WiFi + Bluetooth

Specifications :
Unique Feature
ASRock Super Alloy
- Premium Power Choke
- 50A Dr.MOS
- Sapphire Black PCB
- High Density Glass Fabric PCB
CPU
- Supports 12th Gen Intel® Core™ Processors (LGA1700)
- Digi Power design
- 6 Power Phase design
- Supports Intel® Hybrid Technology
- Supports Intel® Turbo Boost Max 3.0 Technology
Memory
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC)*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB
- Supports Intel® Extreme Memory Profile (XMP) 2.0
Slots
CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)

Storage
CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
Chipset:
- 4 x SATA3 6.0 Gb/s Connectors**

OS
- Microsoft® Windows® 10 64-bit / 11 64-bit

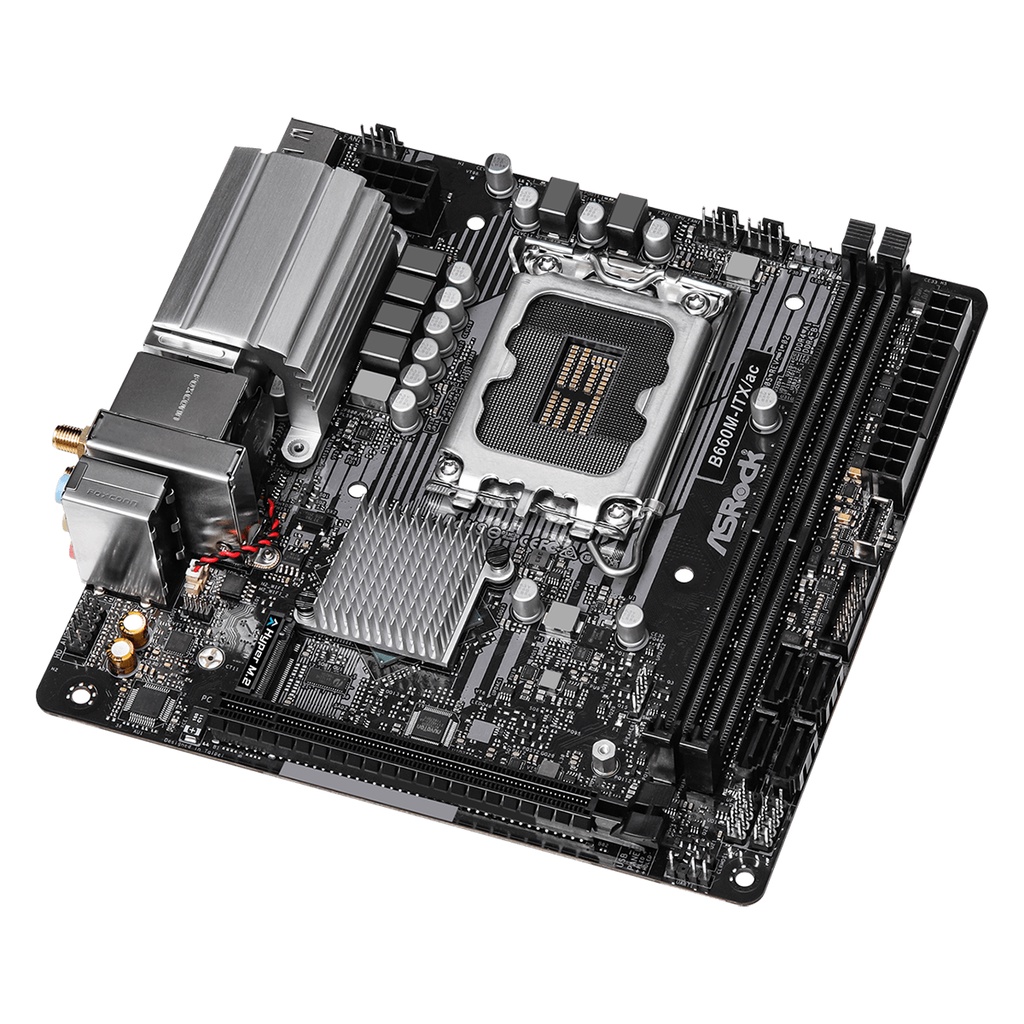

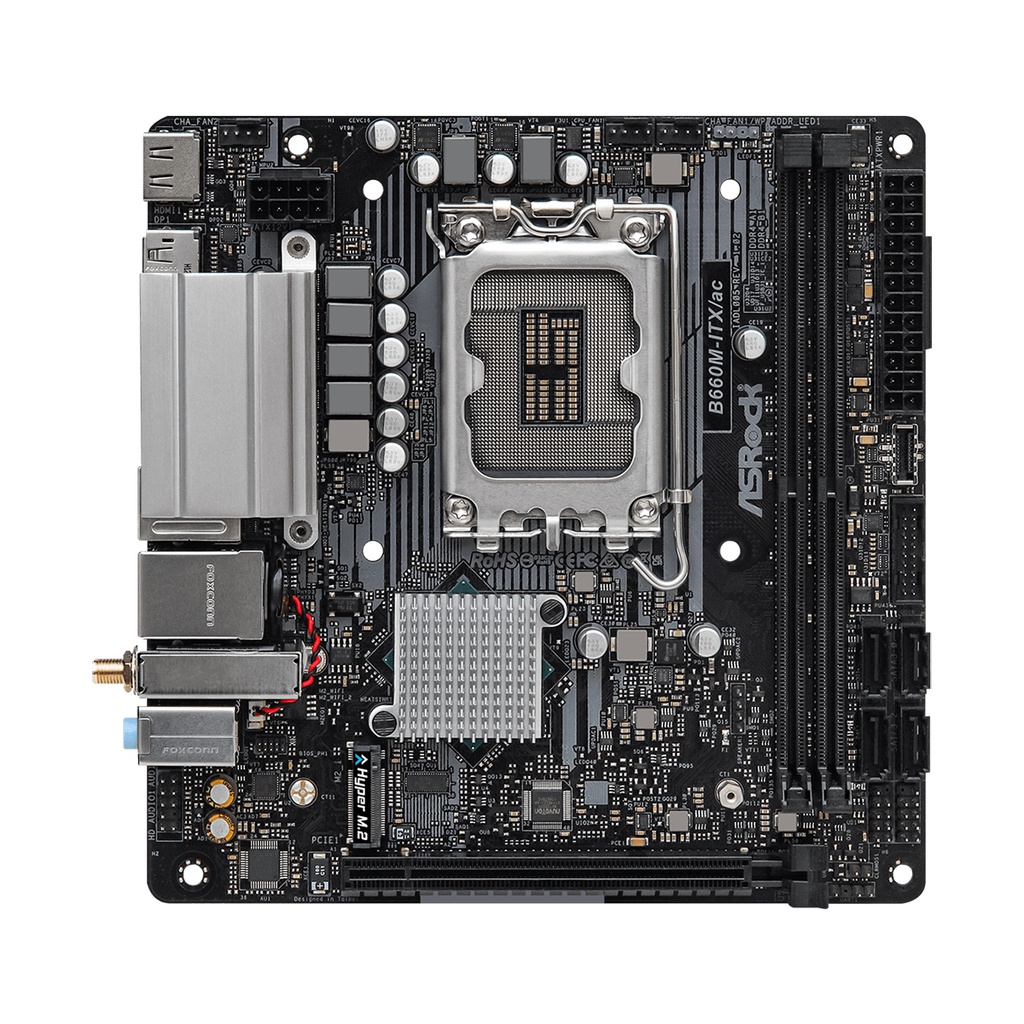

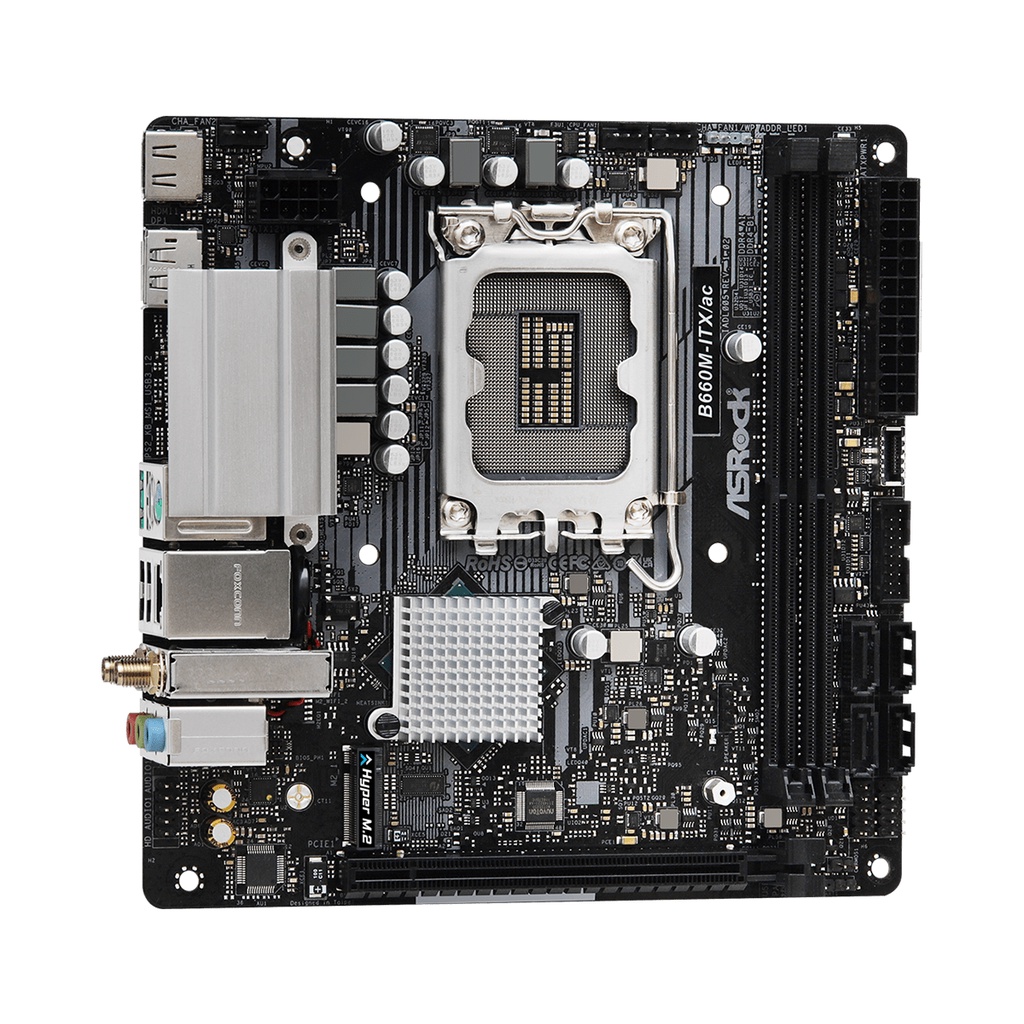

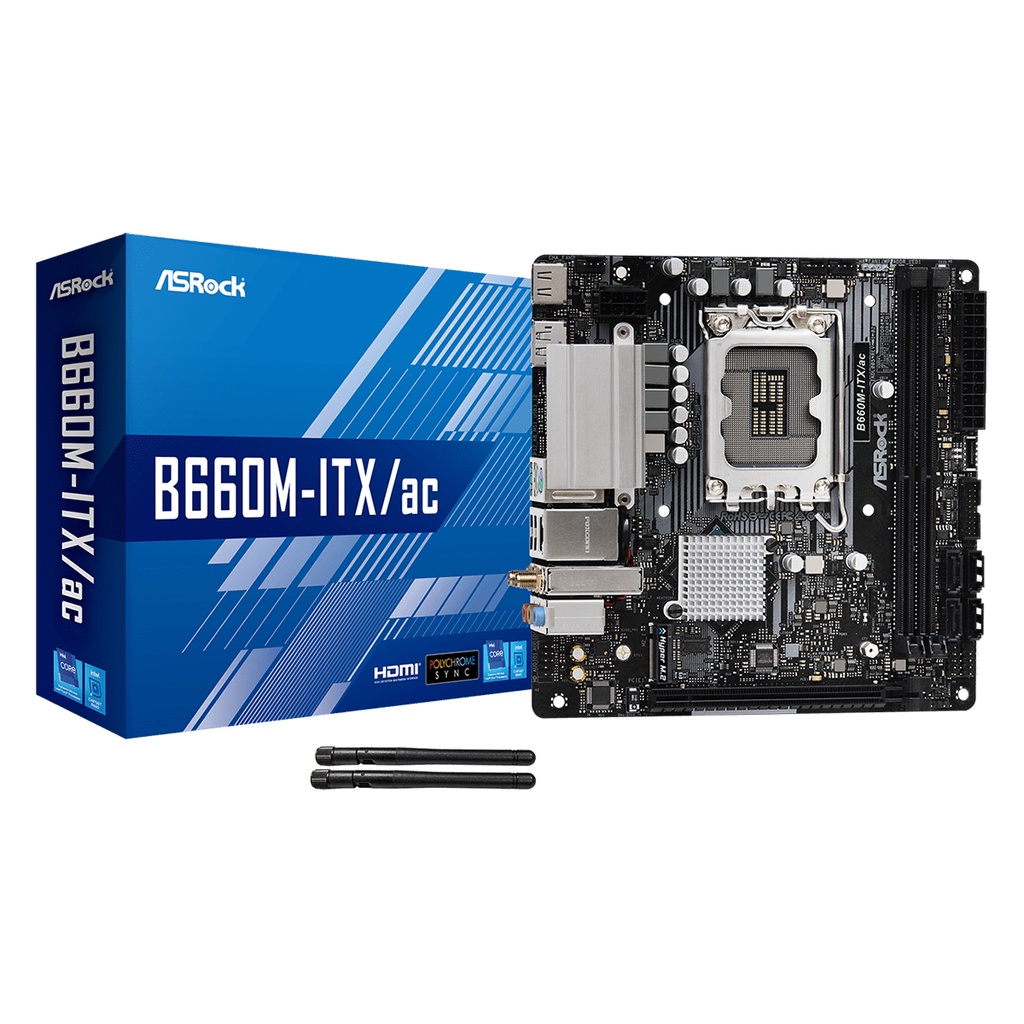

Gambar produk
