ASROCK DeskMini X300 Mini PC (AMD Zen Powered PC) - AMD Renoir Support | PC Mini Barebone Kosongan

Detail ASROCK DeskMini X300 Mini PC (AMD Zen Powered PC) - AMD Renoir Support | PC Mini Barebone Kosongan

UNTUK MENGHINDARI PEMBATALAN, MOHON MENANYAKAN STOK PRODUK SEBELUM MEMBELI
BAREBONE. Tidak termasuk prosesor, RAM, maupun HDD.
========================
100% New & Original
100% Garansi Resmi 2 tahun, KECUALI adaptor garansi 6 bulan.

ASROCK Deskmini X300 Series (AMD Zen Powered PC)

Powerful & Hemat Listrik

DeskMini X300 Series
AMD AM4 Socket CPU
- Renoir, Picasso, Raven Ridge, up to 65W
- Support MAX Height ≦ 46mm CPU Cooler
Supports Overclocking Option with X300
High-Speed DDR4-2933MHz Memory
Dual Ultra M.2 (NVMe)
- M2_1 M.2 (2280) – PCIe Gen3 x4
- M2_2 M.2 (2280) – PCIe Gen3 x2/x4
2 x 2.5" SATA 6Gb Hard Drive
Supports RAID 0/1 function
HDMI, DisplayPort, D-Sub
M.2 For Wi-Fi Module
USB 3.2 Gen1 Type-C


CPU
- Supports AMD AM4 Socket CPUs (Renoir, Picasso, Raven Ridge, up to 65W)
- AMD Ryzen 4000-Series Desktop APU ‘Renoir’
- Ryzen 7 4750G / 4650G / 4350G
- Ryzen 5 3400G / 3400GE / 3200G / 3200GE
- Ryzen 5 2400G / 2400GE
- Ryzen 3 2200G
- Ryzen 3 2200GE
- Athlon 3000G New
- Athlon 240GE / 220GE / 200GE

Memory
- Supports 2 x SO-DIMM DDR4 Memory, Max. 64GB
- AMD Ryzen 4000 series – 3200MHz
- AMD Ryzen 3000/2000 series – 2933MHz

Chipset
- AMD X300

Graphics Output
- HDMI(4K @60Hz)
- DisplayPort, D-Sub

Audio
- 1 x Head Phone with MIC Jack, 1 x MIC-In (RealtekALC233)

Front USB
- 1 x USB 3.2 Gen1 Type-C, 1 x USB 3.2 Gen1 Type-A

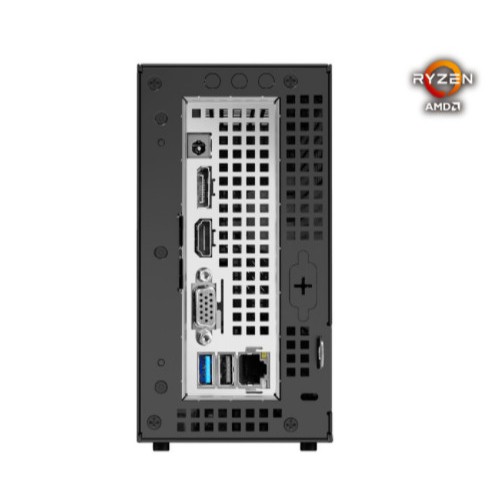

Rear USB
- 1 x USB 3.2 Gen1 Type-A, 1 x USB 2.0 Type-A,

Storage
- 2 x SATA3 with Power connectors (RAID 0/1)
- 1 x Ultra M.2 (2280) PCIe Gen3 x4 SSD Slot
- 1 x Ultra M.2 (2280) Slot
- PCIe Gen3 x4 (Renoir, Picasso and Raven Ridge APU)
- PCIe Gen3 x2 (Athlon 2xxGE series APU)

LAN
- Gigabit LAN (RealtekRTL8111H)

WLAN
- 1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module

Connectors
- 1 x USB 2.0 Header
- 1 x Front Panel Header
- 2 x 4-Pin fan connectors (CPU, SYS)
- 1 x DC-In Jack (Supports 19V Power Adapters)
- 1 x Internal Speaker Header (4-Pin)
- 1 x Chassis Intrusion Header (2-Pin)
- 1 x Audio Header (4-Pin)

Accessory
- 2 x SATA Data with Power Cable
- 1 x 120W/19V adapter
- 1 x Screws Pack

Dimension
- 155 x 155 x 80 mm (1.92L)

Gambar produk
