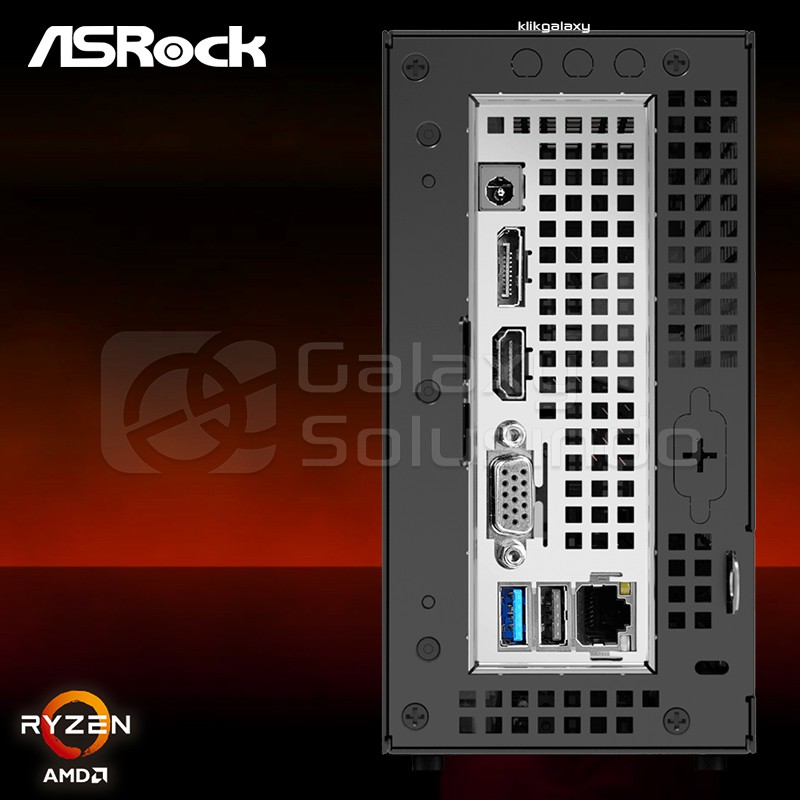

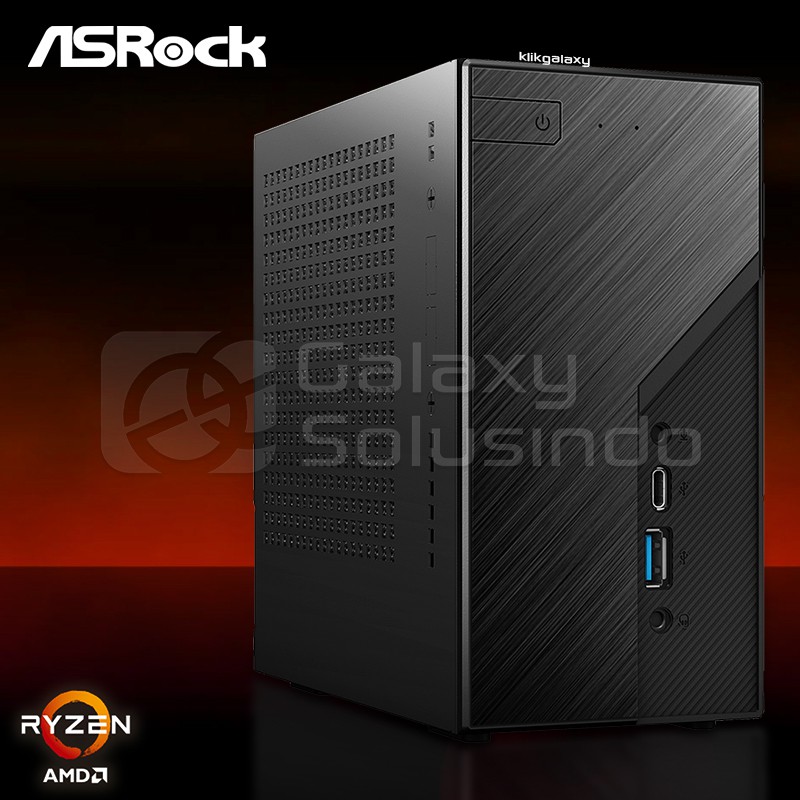

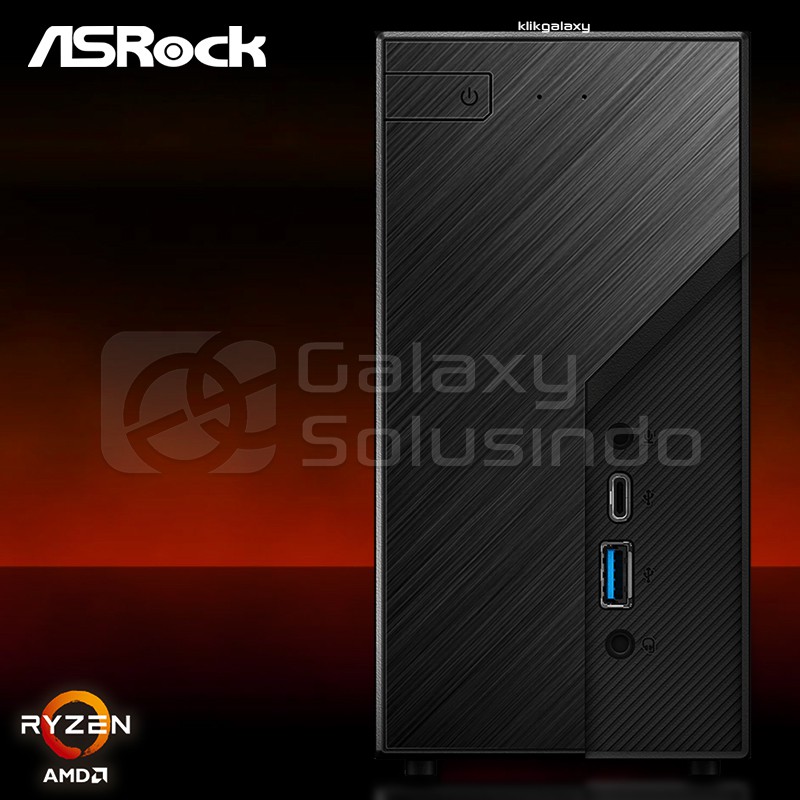

Asrock DESKMINI X300 BAREBONE Mini PC

Detail Asrock DESKMINI X300 BAREBONE Mini PC

SPECIFICATION:

CPU
- Supports AMD AM4 Socket CPUs (Renoir, Picasso, Raven Ridge, up to 65W)
Memory
- Supports 2 x SO-DIMM DDR4 Memory, Max. 64GB
- AMD Ryzen 4000 series – 3200MHz
- AMD Ryzen 3000/2000 series – 2933MHz
Chipset
- AMD X300
Graphics Output
- HDMI(4K @60Hz)
- DisplayPort, D-Sub
Audio
- 1 x Head Phone with MIC Jack, 1 x MIC-In (RealtekALC233)
Front USB
- 1 x USB 3.2 Gen1 Type-C, 1 x USB 3.2 Gen1 Type-A
Rear USB
- 1 x USB 3.2 Gen1 Type-A, 1 x USB 2.0 Type-A,
Storage
- 2 x SATA3 with Power connectors (RAID 0/1)
- 1 x Ultra M.2 (2280) PCIe Gen3 x4 SSD Slot
- 1 x Ultra M.2 (2280) Slot
- PCIe Gen3 x4 (Renoir, Picasso and Raven Ridge APU)
- PCIe Gen3 x2 (Athlon 2xxGE series APU)
LAN
- Gigabit LAN (RealtekRTL8111H)
WLAN
- 1 x M.2 (key E 2230) Slot for Wi-Fi + BT Module
Connectors
- 1 x USB 2.0 Header
- 1 x Front Panel Header
- 2 x 4-Pin fan connectors (CPU, SYS)
- 1 x DC-In Jack (Supports 19V Power Adapters)
- 1 x Internal Speaker Header (4-Pin)
- 1 x Chassis Intrusion Header (2-Pin)
- 1 x Audio Header (4-Pin)
Accessory
- 2 x SATA Data with Power Cable
- 1 x 120W/19V adapter
- 1 x Screws Pack
Dimension
- 155 x 155 x 80 mm (1.92L)

Gambar produk
