Asrock B760M B760 Pro RS/D4 Intel LGA 1700 DDR4 USB 3.2 SATA3

Detail Asrock B760M B760 Pro RS/D4 Intel LGA 1700 DDR4 USB 3.2 SATA3

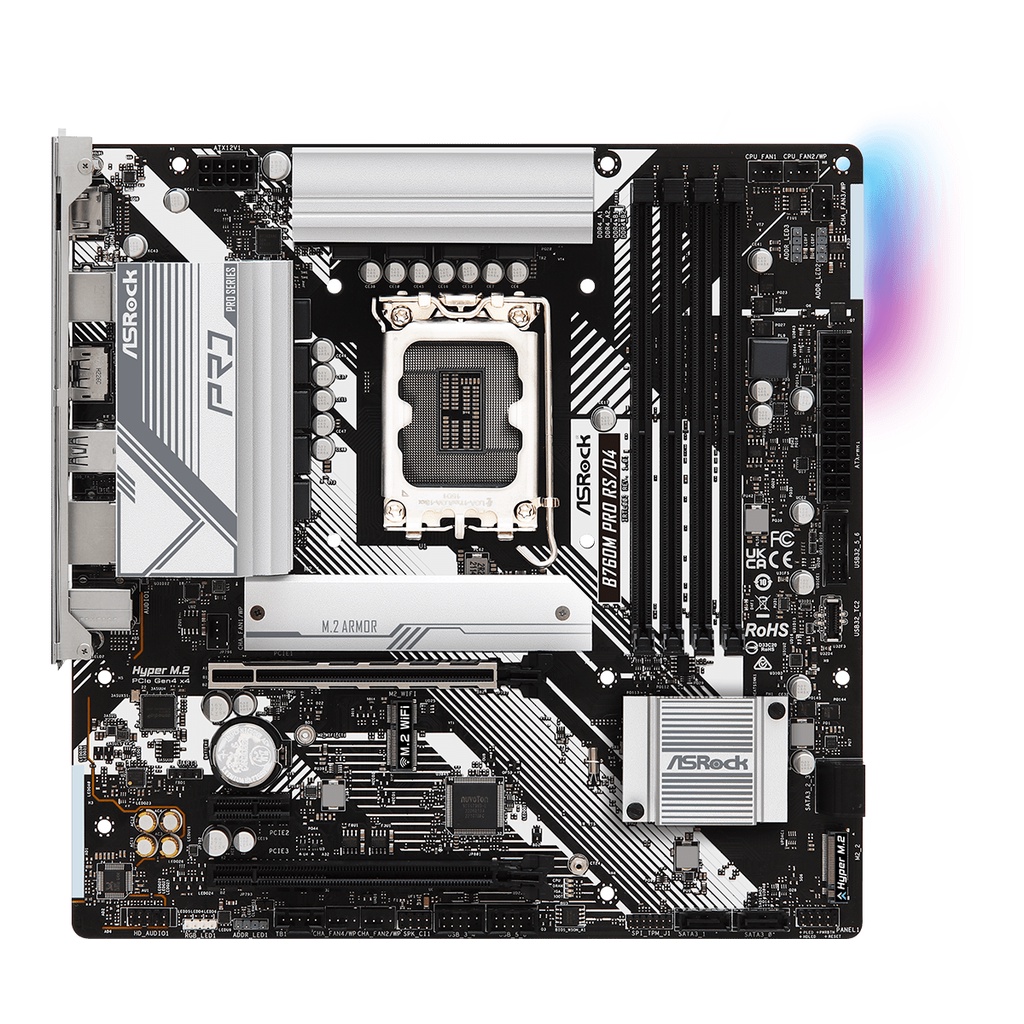

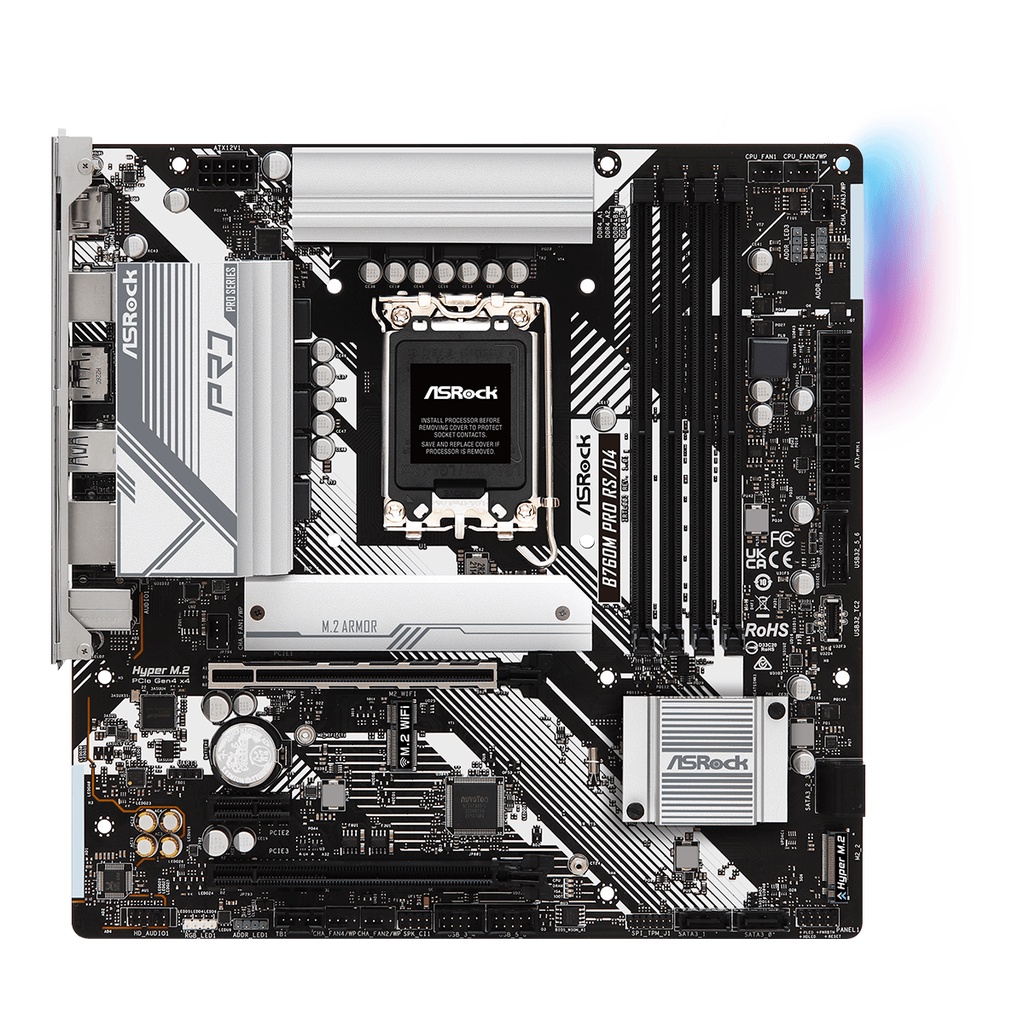

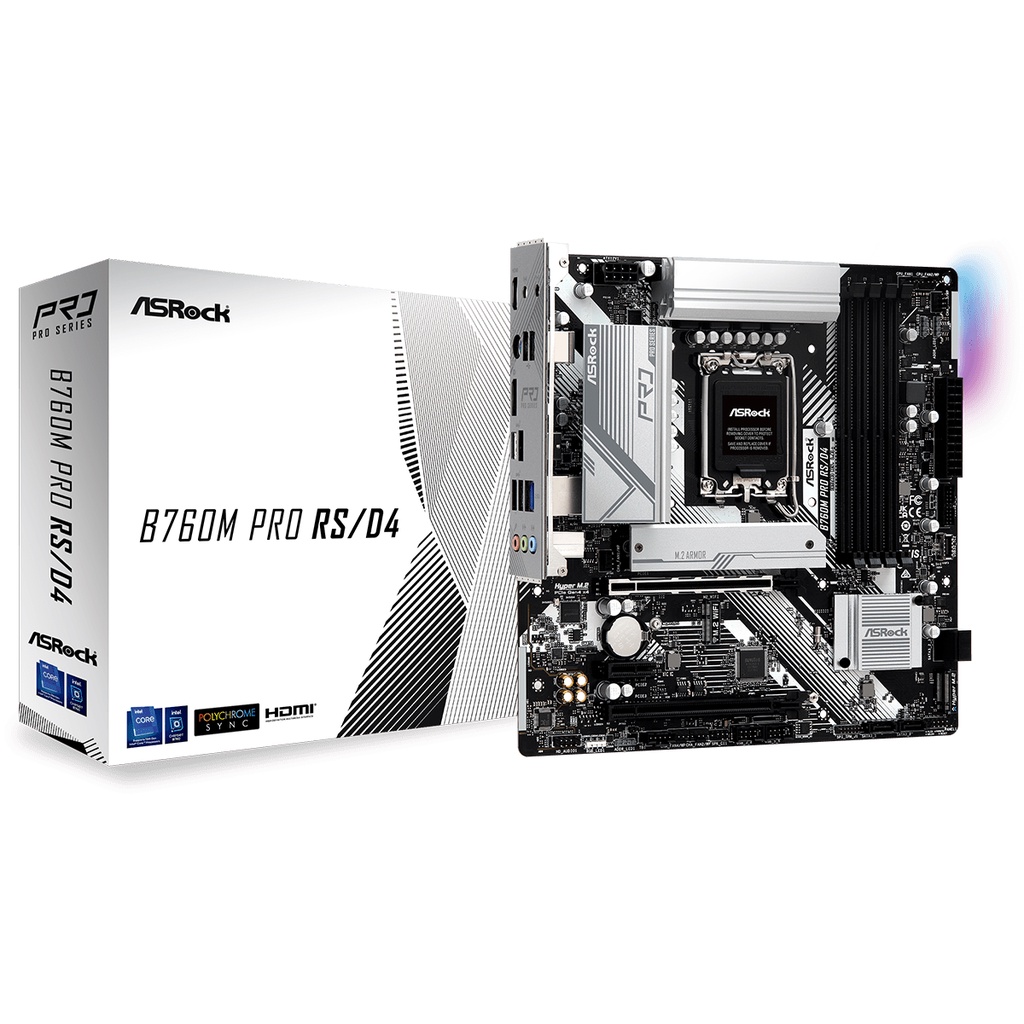

B760M Pro RS/D4

• Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
• 7+1+1 Power Phase, Dr.MOS for VCore+GT
• Supports DDR4 5333MHz (OC)
• 2 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi
• Graphics Output Options: HDMI, DisplayPort
• Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• 4 SATA3, 2 Hyper M.2 (PCIe Gen4x4)
• 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front),
• 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
• 6 USB 2.0 (2 Rear, 4 Front)
• Dragon 2.5G LAN
• Supports ASRock Auto Driver Installer

Specification :

CPU
• Supports 13th Gen & 13th Gen & 12th Gen Intel Core Processors (LGA1700)
• Supports Intel Hybrid Technology
• Supports Intel Turbo Boost Max 3.0 Technology
• Supports Intel Thermal Velocity Boost (TVB)
• Supports Intel Adaptive Boost Technology (ABT)

Chipset
• Intel B760

Memory
• Dual Channel DDR4 Memory Technology
• 4 x DDR4 DIMM Slots
• Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
• Supports ECC UDIMM memory modules (operate in non-ECC mode)
• Max. capacity of system memory: 128GB
• Supports Intel Extreme Memory Profile (XMP) 2.0

Graphics
• Intel Xe Graphics Architecture (Gen 12)
• 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
• 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

Storage
CPU:
• 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*Chipset:
• 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
• 4 x SATA3 6.0 Gb/s Connectors

Form Factor
• Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

OS
• Microsoft® Windows® 10 64-bit / 11 64-bit

Garansi Resmi 3 Tahun

Gambar produk
