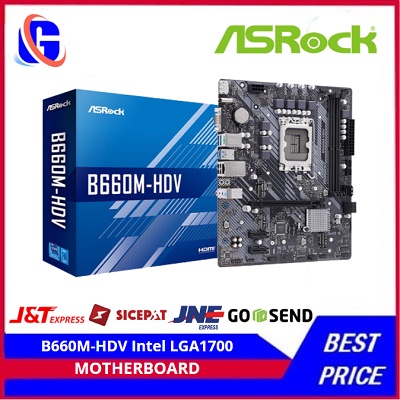

Asrock B660M-HDV Intel LGA1700 B660 DDR4

Detail Asrock B660M-HDV Intel LGA1700 B660 DDR4

B660M-HDV
Supports 12th Gen Intel® Core™ Processors (LGA1700)
6 Phase Power Design
Supports DDR4 5066MHz (OC)
1 PCIe 4.0 x16, 2 PCIe 3.0 x1
1 M.2 Key-E for WiFi
Graphics Output Options: HDMI, DisplayPort, D-Sub
Realtek ALC887/897 7.1 CH HD Audio Codec, Nahimic Audio
4 SATA3
1 Hyper M.2 (PCIe Gen4 x4)
1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front)
5 USB 2.0 (2 Rear, 3 Front)
Intel® Gigabit LAN

Memory
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 non-ECC, un-buffered memory up to 5066+(OC)*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB

Graphics
- Intel® Xe Graphics Architecture (Gen 12)
- Three graphics output options: D-Sub, HDMI and DisplayPort 1.4
- Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports

Audio
- 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec)
- Supports Surge Protection

Slots
CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Storage
CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
- 4 x SATA3 6.0 Gb/s Connectors**

Form Factor
- Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
- Solid Capacitor design
OS
- Microsoft® Windows® 10 64-bit / 11 64-bit

Garansi 3 Tahun (2 Tahun Part)
