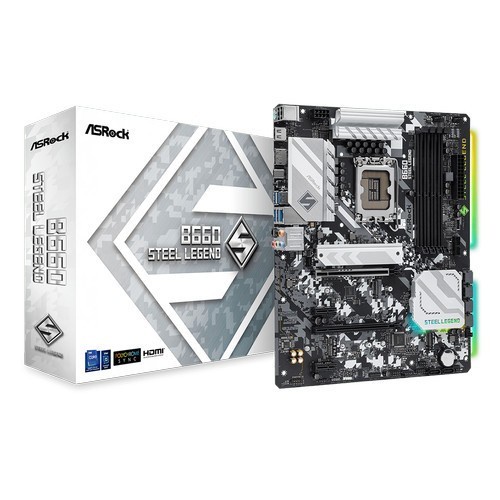

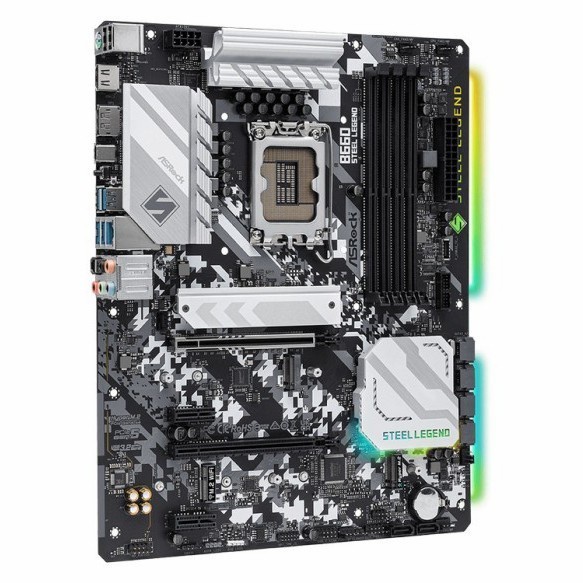

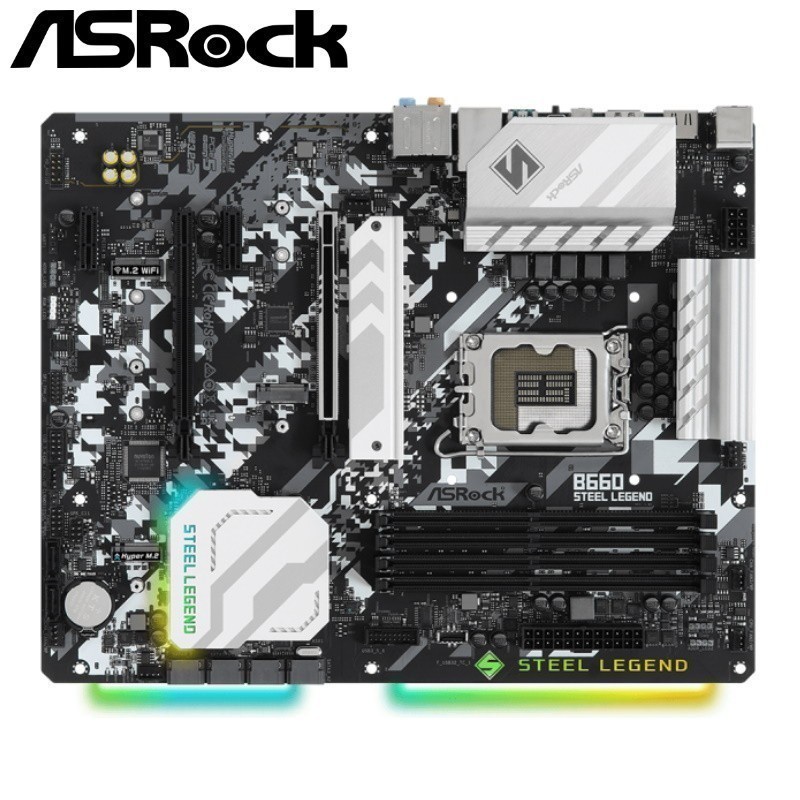

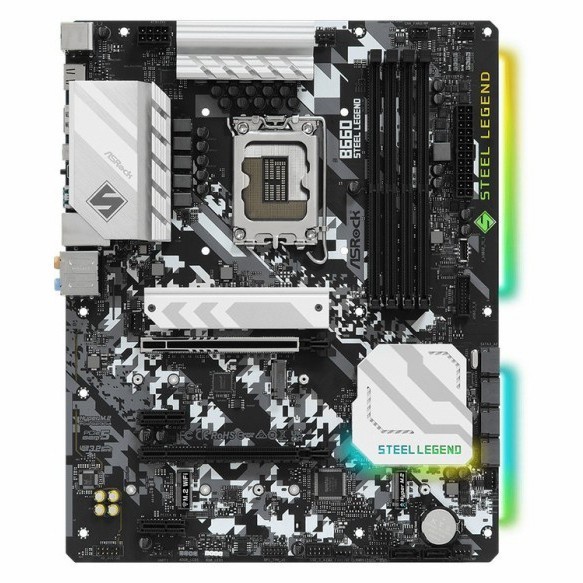

ASROCK B660 Steel Legend DDR4 (Intel B660, LGA 1700)

Detail ASROCK B660 Steel Legend DDR4 (Intel B660, LGA 1700)

GARANSI RESMI ASROCK 3TAHUN

CPU
- Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Chipset
- Intel B660

Memory
-4 x DIMM, Max. 128GB
- Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*

Graphics
- Intel® Xe Graphics Architecture (Gen 12)
- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
- Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz
- Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports

Expansion Slots
- 2 x PCIe x16 Slots (PCIE1/PCIE3: single at Gen5x16 (PCIE1); dual at Gen5x16 (PCIE1) / Gen4x2 (PCIE3))*
- 2 x PCIe Gen3x1 Slots
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)

Storage
- 4 x SATA3 6.0 Gb/s Connectors*
- 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode**
- 1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes**
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280/22110 PCIe Gen4x4 (64 Gb/s) modes**

Ethernet
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG

Form Factor
- ATX
- 30.5 cm x 24.4 cm
