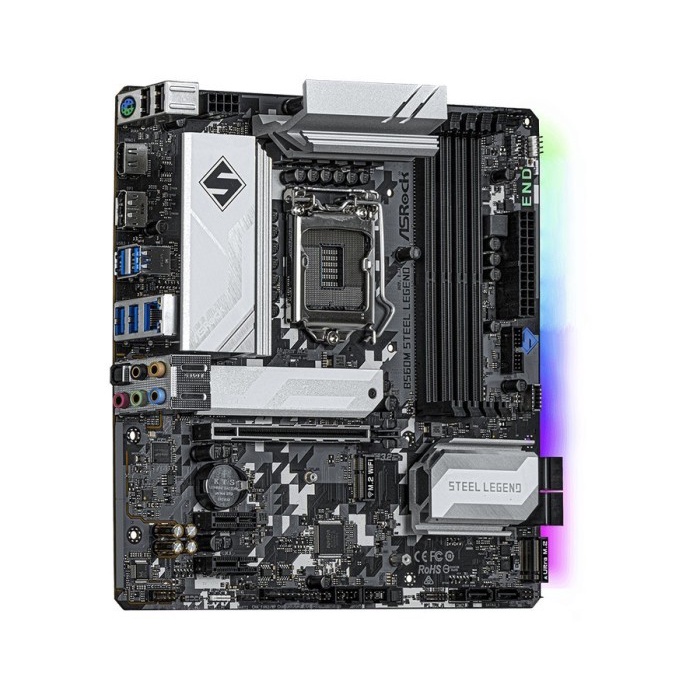

ASRock B560M Steel Legend (LGA1200, B560, DDR4, USB3.2, SATA3)

Detail ASRock B560M Steel Legend (LGA1200, B560, DDR4, USB3.2, SATA3)

SPECIFICATION :

Unique Feature
ASRock USB 3.2 Gen2
- ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- 50A Dr.MOS
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- Matte Black PCB
- High Density Glass Fabric PCB
2.5G LAN
ASRock Steel Slot
ASRock Full Coverage M.2 Heatsink
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU
- Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200)
- Digi Power design
- 10 Power Phase design
- Supports Intel Turbo Boost Max 3.0 Technology
Chipset
- Intel B560
Memory
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)*
- 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 128GB**
- Supports Intel Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots

11th Gen Intel Core (i9/i7/i5) support DDR4 up to 3200; Core (i3), Pentium and Celeron support DDR4 up to 2666.
10th Gen Intel Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.

Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCIO 1 2
