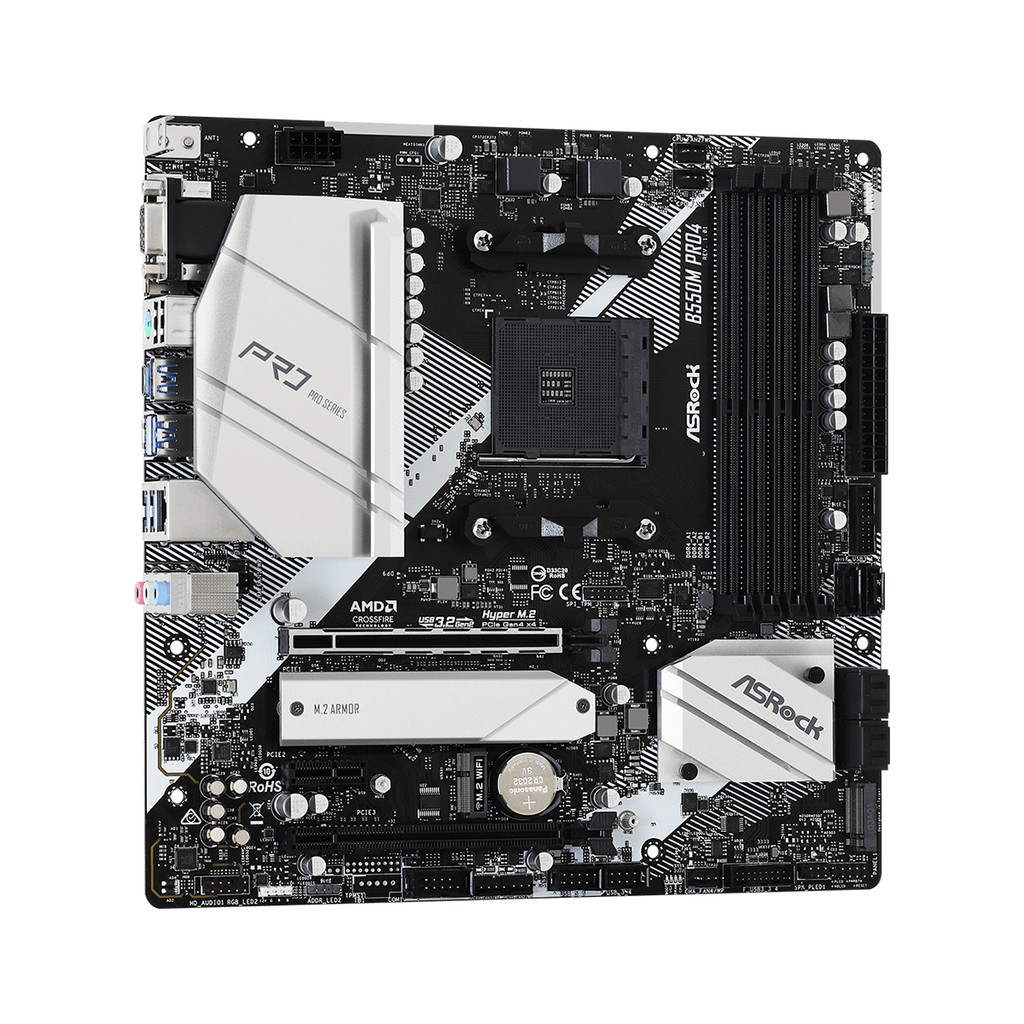

ASROCK B550M PRO4 AM4 mATX DDR4 MOTHERBOARD AMD PRO 4

Detail ASROCK B550M PRO4 AM4 mATX DDR4 MOTHERBOARD AMD PRO 4

Extra bubble wrap dan packing kayu untuk keamanan paket agan agar barang lebih aman pada saat proses pengiriman (REKOMENDASI)
- Packing Kayu
https://seller.shopee.co.id/portal/product/8001513386/
- Extra Bubble Wrap
https://seller.shopee.co.id/portal/product/5241237073/

SPECIFICATION :

CPU
- Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors*
- Digi Power design
- 8 Power Phase design

Chipset
- AMD B550

Memory
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*

Graphics
- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB.**

Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection

LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H

Slots
AMD Ryzen series CPUs (Matisse)
- 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)*
AMD Ryzen series APUs
- 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)*
Storage
- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*
- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s)

Connector
- 1 x COM Port Header
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header

Form Factor
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
- Solid Capacitor design
- 2oz Copper PCB

Note :
- Wajib tanyakan stok sebelum order melalui Diskusi/ Chat (Ketersediaan Terbatas).
- Spesifikasi lengkap dapat dicek melalui website resmi masing- masing produk.
- Gambar hanya ilustrasi, versi produk dapat berbeda tergantung kebijakan vendor, namun tidak mengurangi spesifikasi dan fungsi produk.
- Simpan dus dan invoice pembelian untuk garansi.
- HATI HATI tertipu, barang murah yang belum tentu original. Kami jamin produk yang kami

Gambar produk
