Detail ASRock B550M Pro4 (AM4, AMD Promontory B550, DDR4, USB3.2, SATA3)
Product Name : ASRock B550M Pro4 (AM4, AMD Promontory B550, DDR4, USB3.2, SATA3)
Brand : ASRock
Model : B550M Pro4
CPU Type : Supports 3rd Gen AMD AM4 Ryzen / future AMD Ryzen Processors
Chipset : AMD B550
Memory Standard : 4 x DDR4 DIMM, Up to 4533+(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
Maximum Memory Supported : Up to 128GB Dual channel
Expansion Slots : 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi
SATA Port : 6 SATA3
M.2 : 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
Onboard Video Chipset : HDMI, DP, D-Sub (Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU)
Multi-GPU support : AMD CrossFireX
Audio Chipset : Realtek ALC1200
LAN Chipset : Realtek RTL8111H

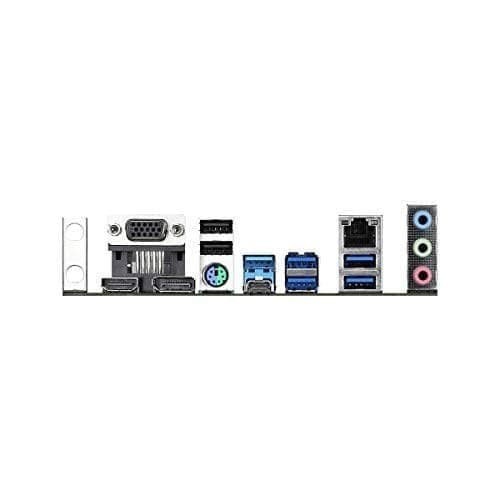

Rear Panel Ports : Antenna Bracket, PS/2, D-Sub, HDMI, DP, USB 3.2 Gen2, USB 3.2 Gen2 Type-C, 4 USB 3.2 Gen1, 2 USB 2.0, RJ-45 LAN Port, HD Audio Jacks
Form Factor : Micro ATX (24.4 cm x 24.4 cm)
Warranty : 3 Years
Gambar produk
ASRock B550M Pro4 (AM4, AMD Promontory B550, DDR4, USB3.2, SATA3)
ASRock B550M Pro4 (AM4, AMD Promontory B550, DDR4, USB3.2, SATA3)
ASRock B550M Pro4 (AM4, AMD Promontory B550, DDR4, USB3.2, SATA3)
ASRock B550M Pro4 (AM4, AMD Promontory B550, DDR4, USB3.2, SATA3)
