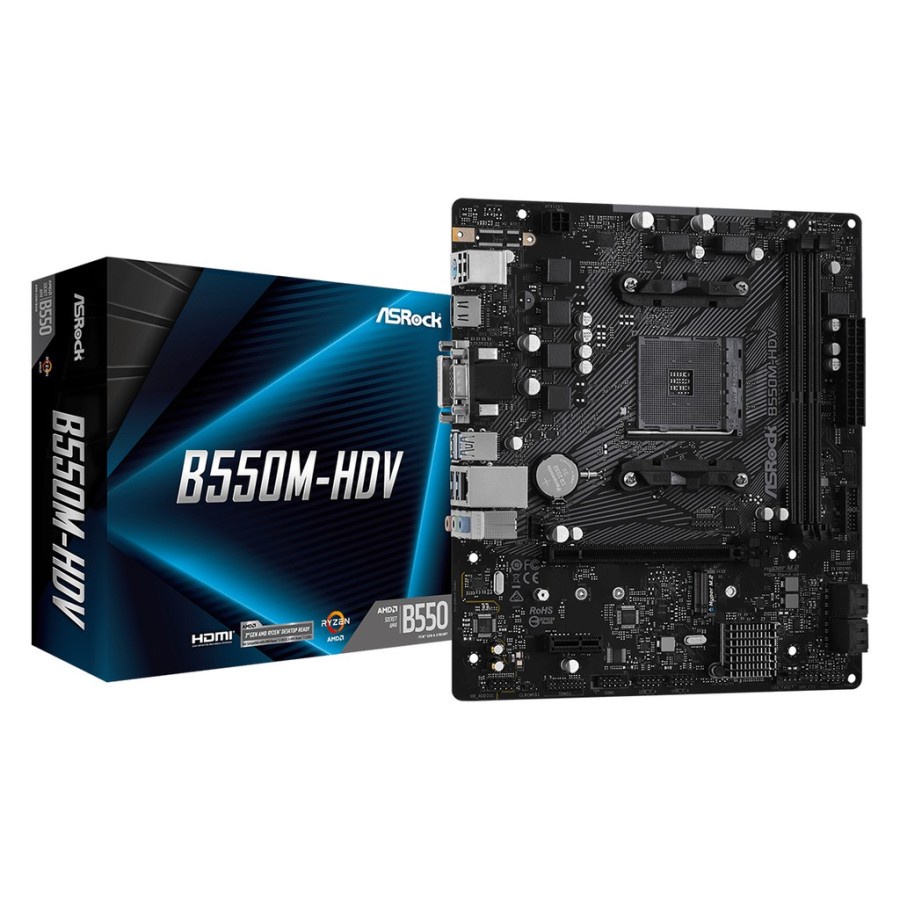

ASRock B550M HDV B 550M HDV AMD Socket AM4 DDR4 USB 3.2 SATA3

Detail ASRock B550M HDV B 550M HDV AMD Socket AM4 DDR4 USB 3.2 SATA3

B550M-HDV

Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
6 Power Phase Design
Supports DDR4 4733+ (OC)
1 PCIe 4.0 x16, 1 PCIe 3.0 x1
Graphics Output Options: HDMI, DVI-D, D-Sub
7.1 CH HD Audio (Realtek ALC887 Audio Codec)
4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
6 USB 3.2 Gen1 (2 Front, 4 Rear)
Gigabit LAN
*Not compatible with AMD Athlon™ Processors.

CPU
- Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
- 6 Power Phase design

*Not compatible with AMD Athlon™ Processors.
Chipset
- AMD B550

Memory
-2 DDR4 DIMM, Up to 4600+(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
Maximum Memory Supported : Up to 64GB Dual channel
Expansion Slots : 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
SATA Port : 4 SATA3
M.2 : 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
Onboard Video Chipset : HDMI, DVI-D, D-Sub (Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU)

Audio
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- Supports Surge Protection
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Form Factor
- Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm
- Solid Capacitor design
OS
- Microsoft® Windows® 10 64-bit / 11 64-bit

Garansi Resmi 3Tahun
