ASROCK B550 PHANTOM GAMING-ITX/ax AM4 DDR4 MINI ITX MOTHERBOARD AMD

Detail ASROCK B550 PHANTOM GAMING-ITX/ax AM4 DDR4 MINI ITX MOTHERBOARD AMD

Extra bubble wrap dan packing kayu untuk keamanan paket agan agar barang lebih aman pada saat proses pengiriman (REKOMENDASI)
- Packing Kayu
https://seller.shopee.co.id/portal/product/8001513386/
- Extra Bubble Wrap
https://seller.shopee.co.id/portal/product/5241237073/

SPECIFICATION :

Chipset
- AMD B550

Memory
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Matisse) support DDR4 5100+(OC) / 5000(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory

BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"

Graphics
- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
- DirectX 12, Pixel Shader 5.0

Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support

LAN
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- GigaLAN Intel® I225V

Wireless LAN
- Intel® 802.11ax WiFi Module
- Supports IEEE 802.11a/b/g/n/ax
- Supports Dual-Band (2.4/5 GHz)

Slots
AMD Ryzen series CPUs (Matisse)
- 1 x PCI Express x16 Slot (PCIE1: Gen4x16 mode)*
AMD Ryzen series APUs
- 1 x PCI Express x16 Slot (PCIE1: Gen3x16 mode)*

Storage
- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s)*
- 1 x Ultra M.2 Socket, supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*

Connector
- 1 x RGB LED Header*
- 1 x Addressable LED Header

Form Factor
- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
- 8 Layer PCB
- 2oz Copper PCB

Note :
- Wajib tanyakan stok sebelum order melalui Diskusi/ Chat (Ketersediaan Terbatas).
- Spesifikasi lengkap dapat dicek melalui website resmi masing- masing produk.
- Gambar hanya ilustrasi, versi produk dapat berbeda tergantung kebijakan vendor, namun tidak mengurangi spesifikasi dan fungsi produk.
- Simpan dus dan invoice pembelian untuk garansi.

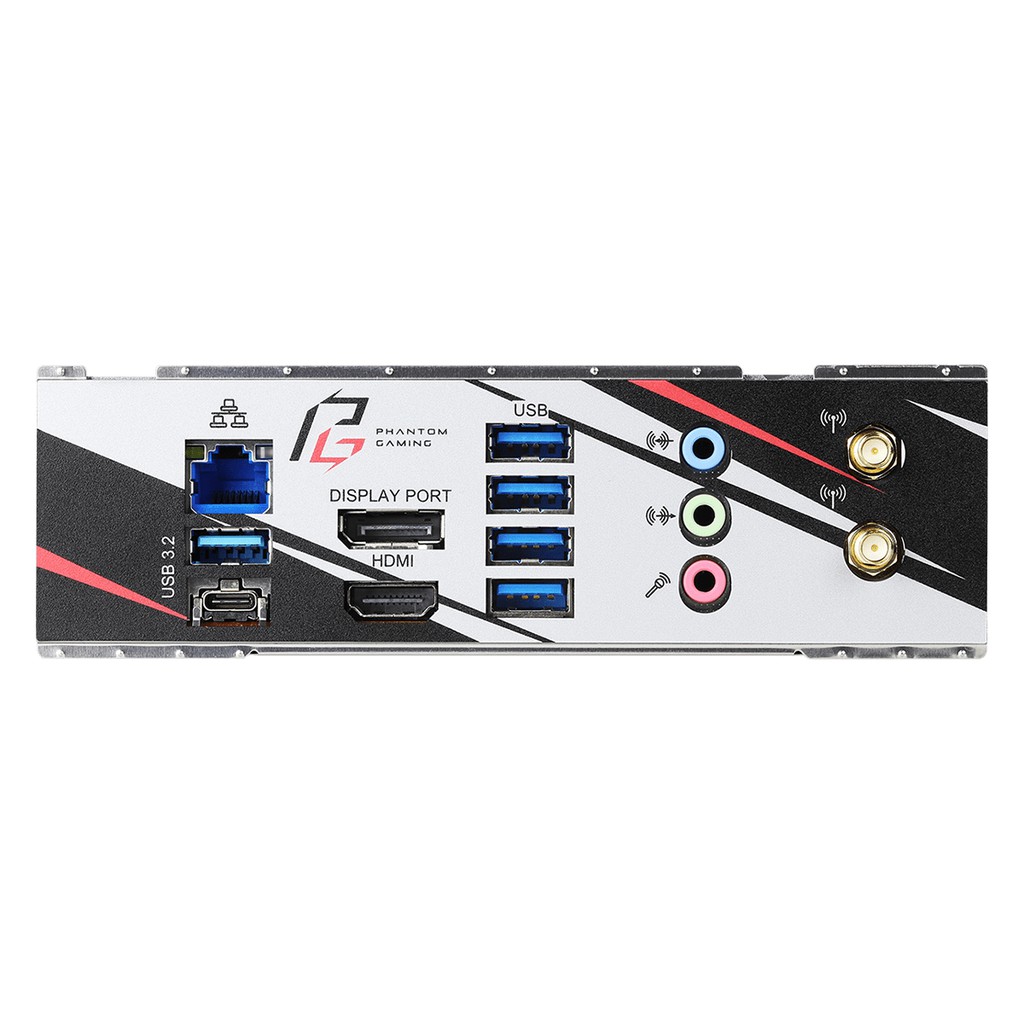

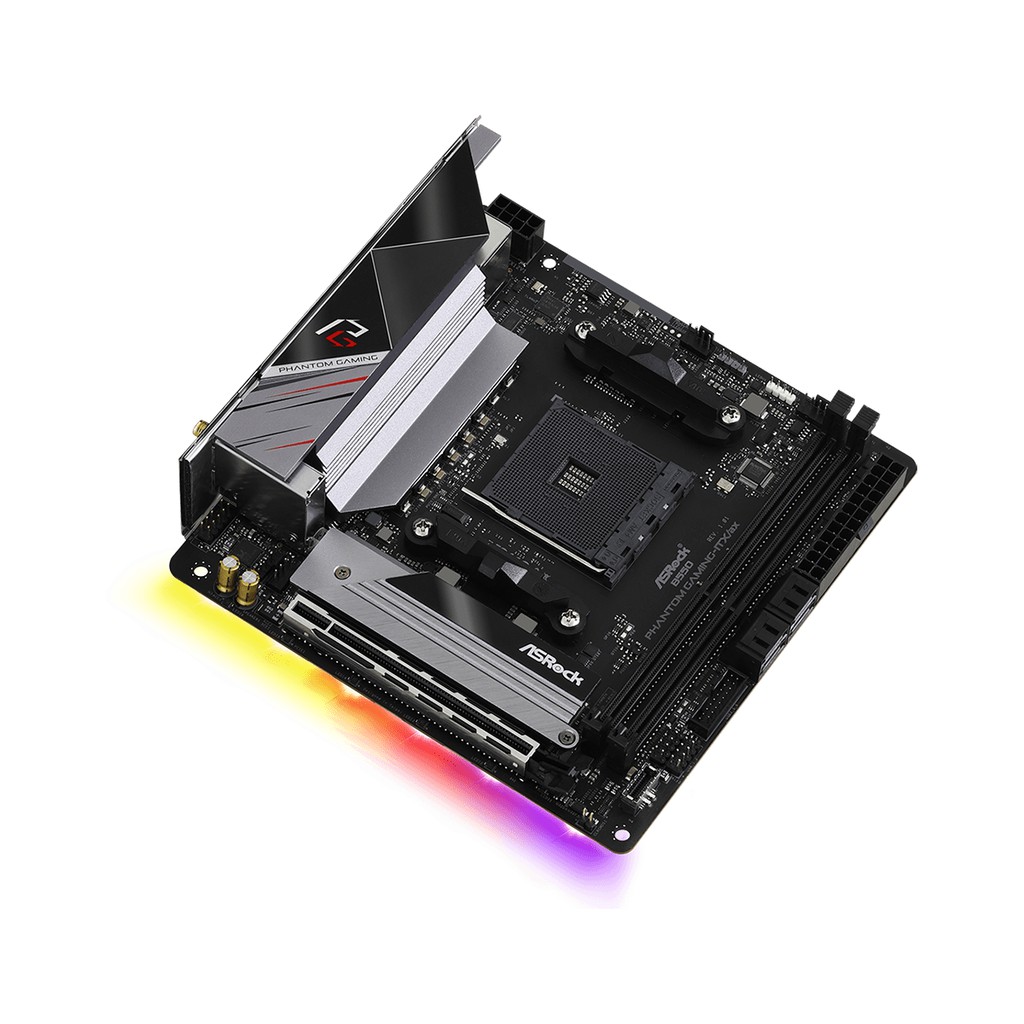

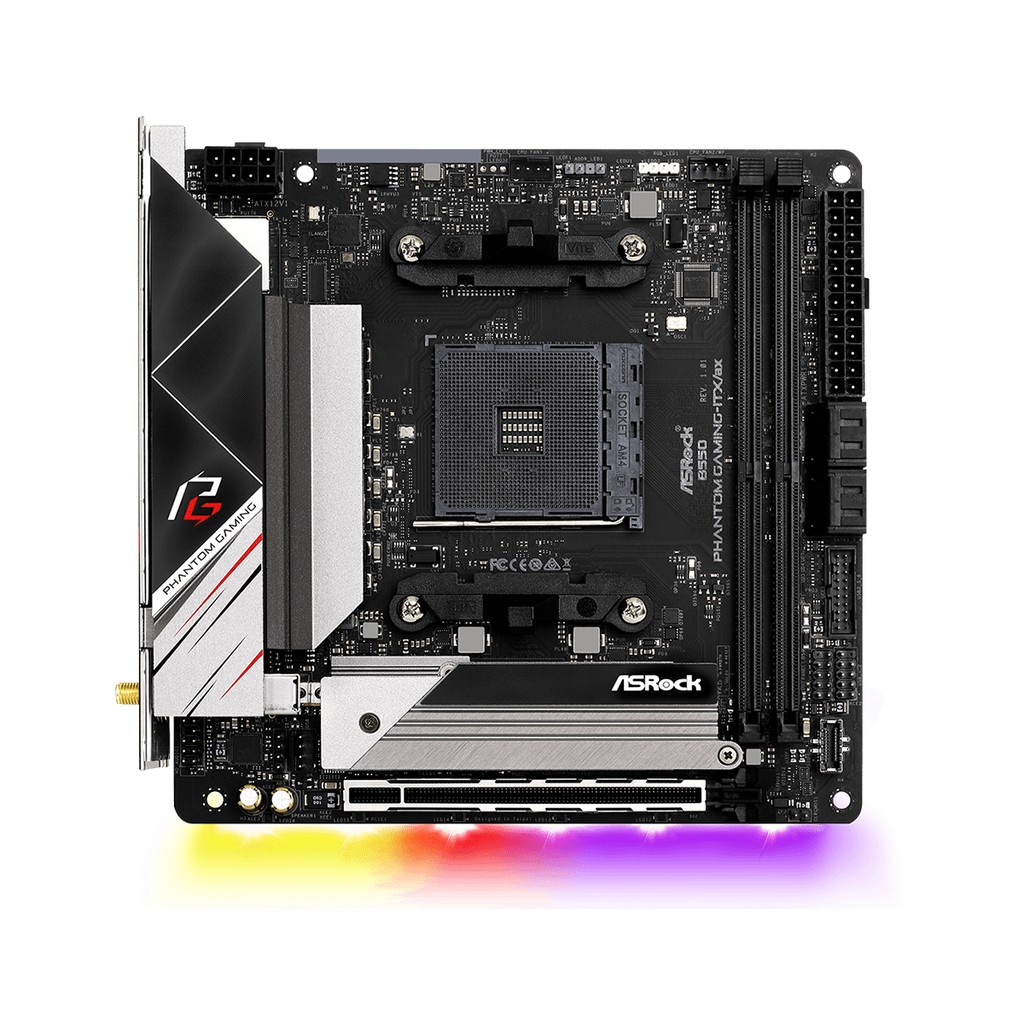

Gambar produk
