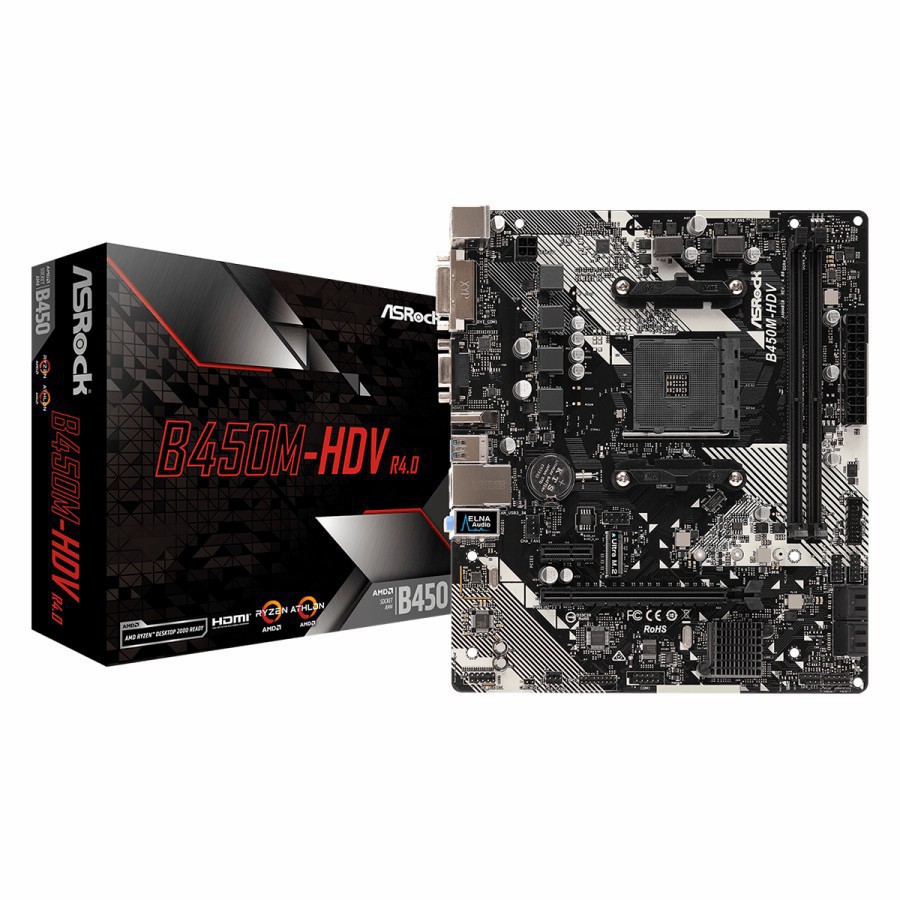

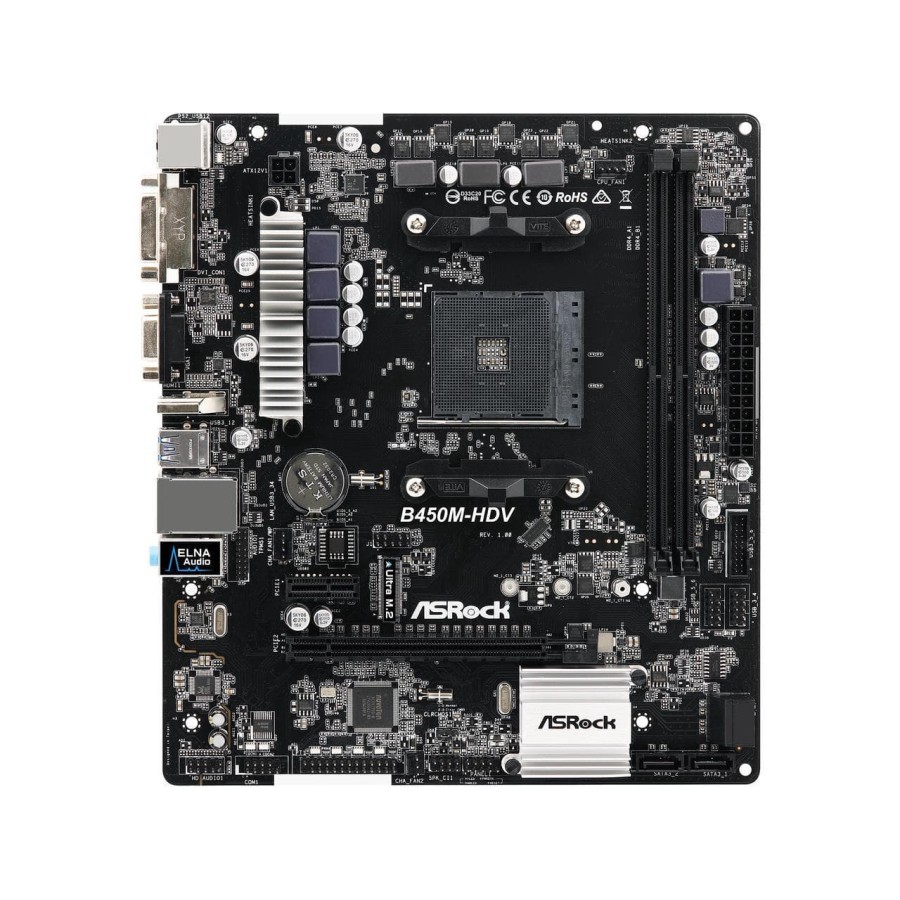

ASRock B450M-HDV (AM4, AMD Promontory B450, DDR4, USB3.1, SATA3)

Detail ASRock B450M-HDV (AM4, AMD Promontory B450, DDR4, USB3.1, SATA3)

Unique Feature
ASRock Super Alloy
- High Density Glass Fabric PCB
- Sapphire Black PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU
- AMD AM4 Socket
- Digi Power design
- 7 Power Phase design
- Supports CPU up to 105W
Chipset
- AMD Promontory B450
Memory
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 non-ECC, un-buffered memory*
- Max. capacity of system memory: 32GB**
- 15μ Gold Contact in DIMM Slots
BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- DRAM Voltage multi-adjustment
Graphics
- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
- DirectX 12, Pixel Shader 5.0
- Max. shared memory 2GB
- Three graphics output options: D-Sub, DVI-D and HDMI
- Supports Triple Monitor
- Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP with DVI-D and HDMI Ports
- Supports 4K Ultra HD (UHD) playback with HDMI Port

*Actual support may vary by CPU
Audio
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
- Supports Surge Protection
- ELNA Audio Caps
