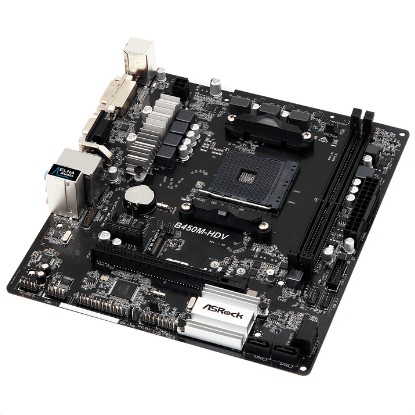

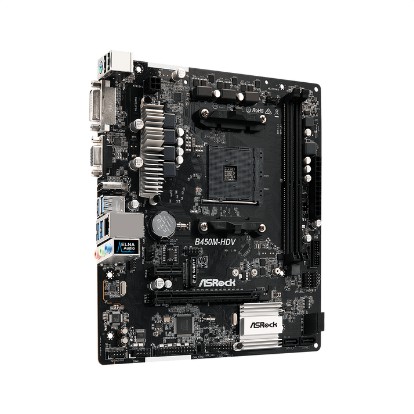

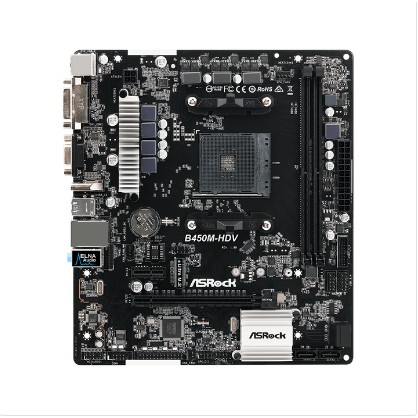

ASRock B450M-HDV (AM4, AMD Promontory B450, DDR4, USB3.1, SATA3)

Detail ASRock B450M-HDV (AM4, AMD Promontory B450, DDR4, USB3.1, SATA3)

B450M-HDV
AMD AM4 Socket
Supports DDR4 3200+ (OC)
1 PCIe 3.0 x16, 1 PCIe 2.0 x1
Graphics Output: HDMI, DVI-D, D-Sub
Supports Triple Monitor
7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
6 USB 3.1 Gen1 (2 Front, 4 Rear)
Realtek Gigabit LAN


Unique Feature
ASRock Super Alloy
- High Density Glass Fabric PCB
- Sapphire Black PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop

CPU
- AMD AM4 Socket
- Digi Power design
- 7 Power Phase design
- Supports CPU up to 105W

Chipset
- AMD Promontory B450

Memory
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 non-ECC, un-buffered memory*
- Max. capacity of system memory: 32GB**
- 15μ Gold Contact in DIMM Slots

BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- DRAM Voltage multi-adjustment

Audio
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
- Supports Surge Protection
- ELNA Audio Caps

LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE

Slots
AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge)
- 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
AMD Ryzen series CPUs (Raven Ridge)
- 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*
- 1 x PCI Express 2.0 x1 Slot

NOTE : SEBELUM DI ORDER DIHARAPKAN DISKUSI UNTUK CHECK STOCK BARANG TERSEBUT, TERIMA KASIH ATAS PERHATIAN NYA
#asrock #MB #B450M #DDR4
