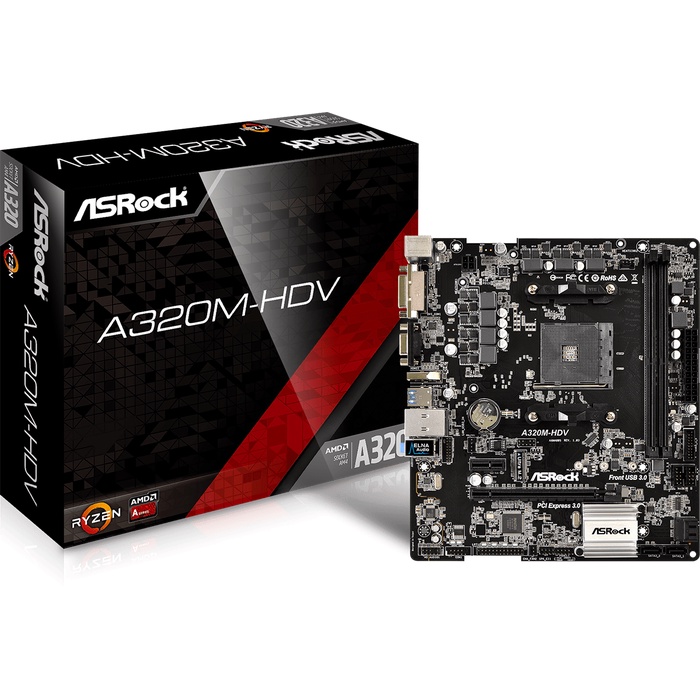

Asrock A320M-HDV (AM4, AMD Promontory A320, DDR4, SATA3)

Detail Asrock A320M-HDV (AM4, AMD Promontory A320, DDR4, SATA3)

Sebelum order silahkan tanya dulu harga barangnya karena harga bbrp barang sering berubah..

A320M-HDV

-ASRock Super Alloy

-Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge)

-Supports DDR4 3200+ (OC) (Ryzen CPU) / 2400 (A-series APU)

-1 PCIe 3.0 x16, 1 PCIe 2.0 x1

-Graphics Output:HDMI, DVI-D, D-Sub

-7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps

-4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)

-6 USB 3.0 (2 Front, 4 Rear)

-Realtek Gigabit LAN

Unique Feature

ASRock Super Alloy

- High Density Glass Fabric PCB

- Sapphire Black PCB

ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)

ASRock Full Spike Protection (for all USB, Audio, LAN Ports)

ASRock Live Update & APP Shop

CPU

- Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge)

- Digi Power design

- 7 Power Phase design

- Supports CPU up to 65W

Chipset

- AMD Promontory A320

Memory

- Dual Channel DDR4 Memory Technology

- 2 x DDR4 DIMM Slots

- AMD Ryzen series CPUs support DDR4 3200+(OC)/2933(OC)/2667/2400/2133 ECC & non-ECC, un-buffered memory*

- AMD 7th Gen A-Series APUs support DDR4 2400/2133 ECC & non-ECC, un-buffered memory**

- Max. capacity of system memory: 32GB**

- 15μ Gold Contact in DIMM Slots***

*Please refer to Memory Support List on ASRock's website for more information.

**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.

***Please refer to below table for DDR4 UDIMM maximum frequency support.

BIOS

- 128Mb AMI UEFI Legal BIOS with GUI support

- Supports "Plug and Play"

- ACPI 5.1 compliance wake up events

- Supports jumperfree

- SMBIOS 2.3 support

- DRAM Voltage multi-adjustment

Gambar produk
