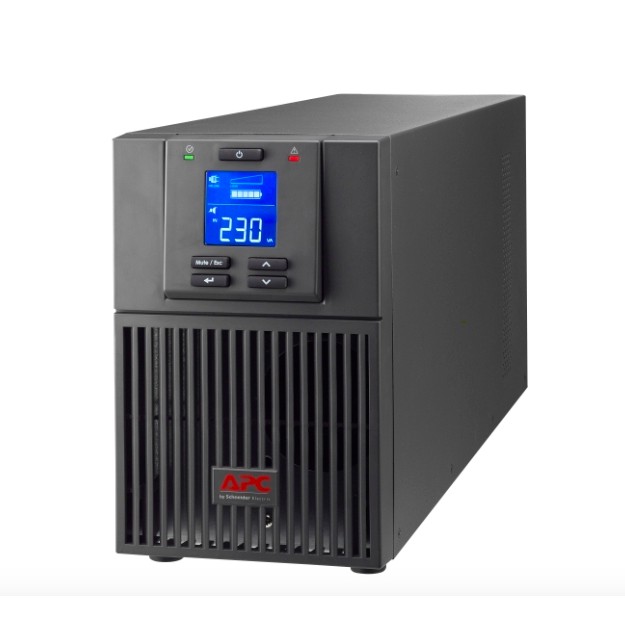

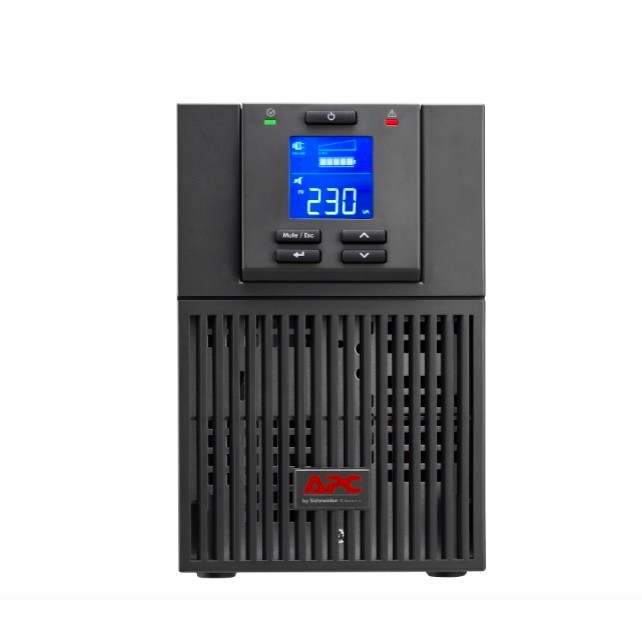

High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions
Includes: Basic UPS signalling RS-232 cable, CD with software, USB cable, User Manual

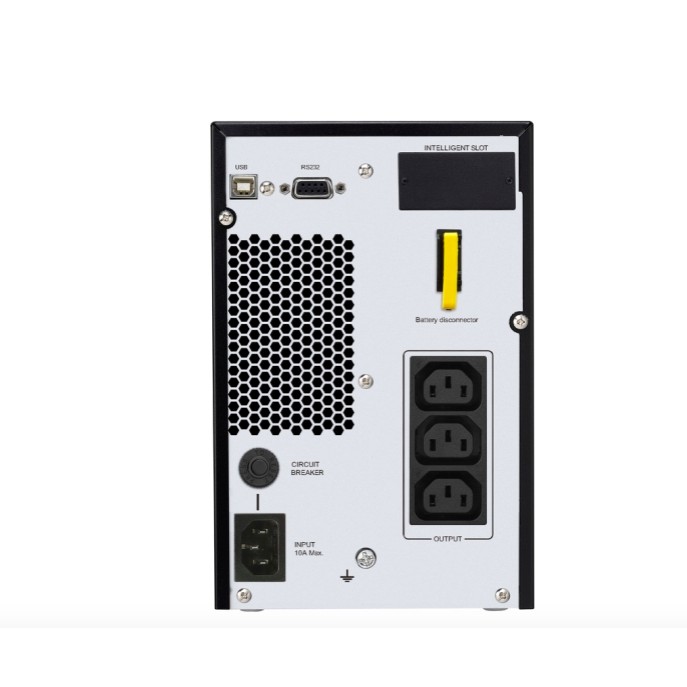

Key Features Run time for load 800 W 3m Max. Capacity Used 100% Output power capacity 800Watts / 1.0kVA Output Connections (3) IEC 320 C13 (Battery Backup) Nominal Output Voltage 230V Nominal Input Voltage 230V Input Connections IEC-320 C14 Cord Length 1.5meters
Output Max Configurable Power (Watts) 800Watts / 1.0kVA Output Voltage Note Configurable for 220 : 230 or 240 nominal output voltage Efficiency at Full Load 88.0 % Output Frequency (sync to mains) 50/60Hz +/- 3 Hz Other Output Voltages 220, 240 Load Crest Factor 3 : 1 Topology Double Conversion Online Waveform type Sine wave Bypass Internal Bypass (Automatic and Manual) Input Input frequency 40 - 70 Hz Input voltage range for main operations 160 - 280V Input voltage adjustable range for mains operation 110 - 285 (half load)V Number of Power Cords 1 Efficiency at Full Load 88.0 % Other Input Voltages 220, 240 Batteries & Runtime Battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof Included Battery Modules 1 Typical recharge time 4hour(s) Battery Charge Power (Watts) 38Watts Battery Volt-Amp-Hour Capacity 152 Runtime View Runtime Graph View Runtime Chart Efficiency View Efficiency Graph Communications & Management Interface Port(s) DB-9 RS-232, USB Control panel Multi-function LCD status and control console Audible Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm Emergency Power Off (EPO) -- Available SmartSlot™ Interface Quantity 1 Surge Protection and Filtering Surge energy rating 600Joules
