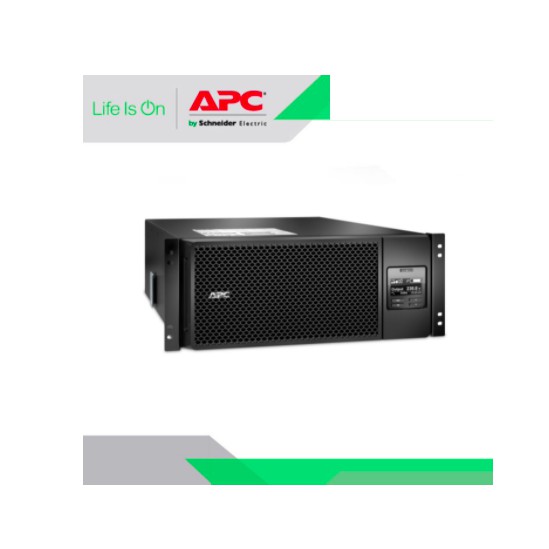

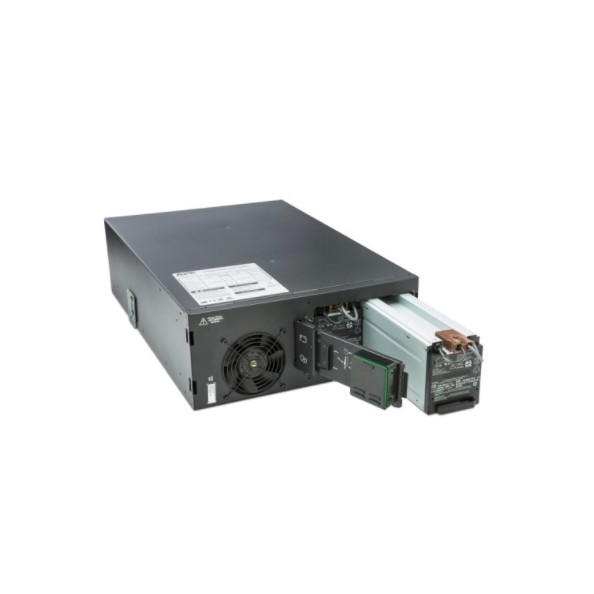

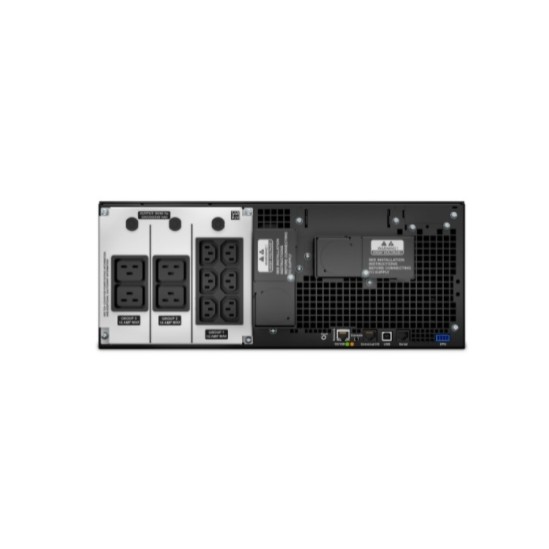

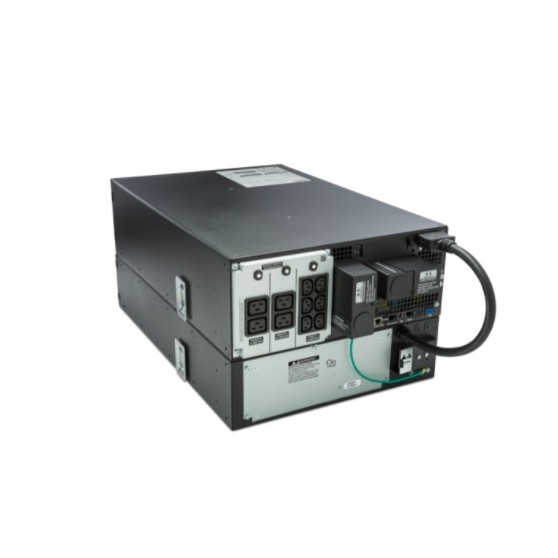

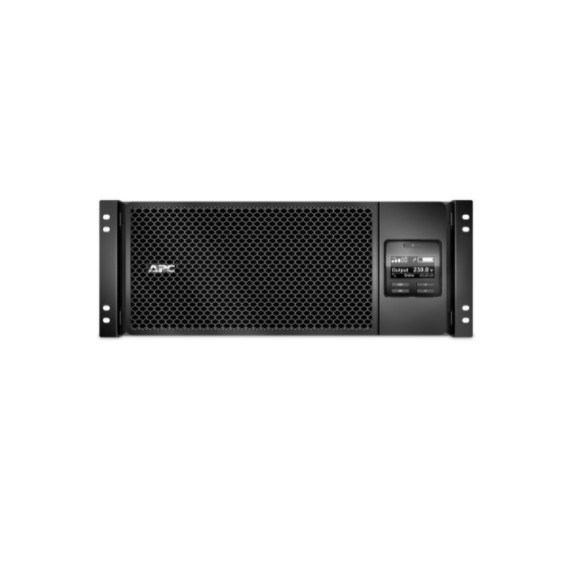

UPS APC Smart-UPS SRT 6000VA RM 230V SRT6KRMXLI

Detail UPS APC Smart-UPS SRT 6000VA RM 230V SRT6KRMXLI

Output
Max Configurable Power (Watts) : 6.0kWatts / 6.0kVA
Output Voltage Distortion : Less than 2 %
Output Frequency (sync to mains) : 50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages : 220, 240
Load Crest Factor : 3 : 1
Topology : Double conversion online
Waveform type : Sine wave
Bypass : Internal bypass (automatic and manual)

Input
Input frequency : 40 - 70 Hz Auto-sensing
Input voltage range for main operations : 100 - 275 Adjustable (half load), 160 - 275V
Other Input Voltages : 220, 240

Batteries & Runtime
Battery type : Lead-acid battery
Typical recharge time : 1.5hour(s)
Nominal Battery Voltage : 192 V
Replacement Battery : APCRBC140
Expected Battery Life (years) : 3 - 5
RBC Quantity : 1
Battery Charge Power (Watts) : 597 Watts
Extendable Run Time : 1
Battery Volt-Amp-Hour Capacity : 902

Communications & Management
Interface Port(s) : RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB
Control panel : Multifunction LCD status and control console
Audible Alarm : Audible and visible alarms prioritized by severity
Emergency Power Off (EPO) : Yes
Available SmartSlot™ Interface Quantity : 1

Surge Protection and Filtering
Surge energy rating : 480Joules

Physical
Maximum Height : 17.4CM
Maximum Width : 43.2CM
Maximum Depth : 71.94CM
Net Weight : 60.0KG
Shipping weight : 67.0KG
Shipping Height : 37.0CM
Shipping Width : 61.0CM
Shipping Depth : 96.0CM
Color : Black
Units per Pallet : 6.0

Environmental
Operating Temperature : 0 - 55 °C
Operating Relative Humidity : 0 - 95 (Non-condensing) %
Operating Elevation : 0 - 3048meters
Storage Temperature : -15 - 45 °C
Storage Elevation : 0 - 15240meters
Audible noise at 1 meter from surface of unit : 55.0dBA
Online thermal dissipation : 1300.0BTU/hr
Protection Class : IP20

Conformance
Approvals : CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE
Standard warranty : 3 years repair or replace (excluding battery) and 2 years for battery

Sustainable Offer Status
RoHS : Compliant
