Detail ZH03A Dust Sensor Laser Particle PM2.5 Detection Debu for arduino

Principle Introduction:
ZH03 Laser Dust sensor module is a common type, small size sensor, using laser scattering principle to detect the dust particles in air, with good selectivity and stability. It is easy to use, with UART output & analog output.
Applications :
ZH03 Laser Dust sensor module is a common type, small size sensor, using laser scattering principle to detect the dust particles in air, with good selectivity and stability. It is easy to use, with UART output & analog output.

Technical parameters :
Model : ZH03
Detection Gas : PM1.0, PM2.5, PM10
Output : UART OUTPUT (3V TTL), DAC (0~2V is corresponding to 0-1000), PWM output
Working Voltage : 4.5V-5.5V
Working Current : 70-140(mA)
Dormancy current : 8mA
Response Time : <=90s
Working Humidity : 15%RH-80%RH(no condensation)
Storage Temperature : -20~40 Derajat C
Life Span : 3 years (in air)
Dimension : 50*32.4*21mm

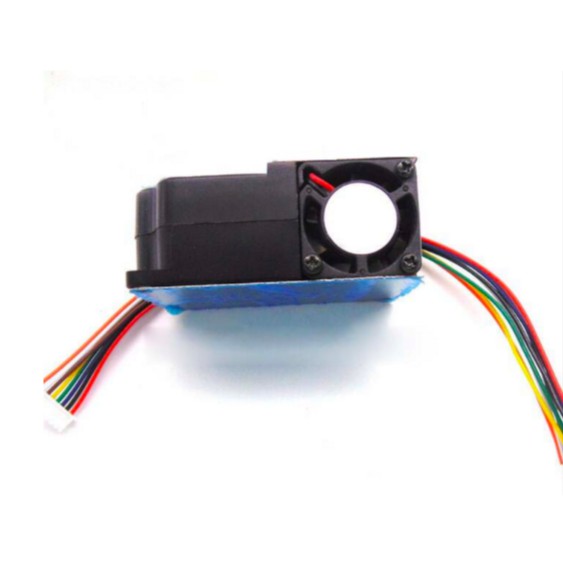

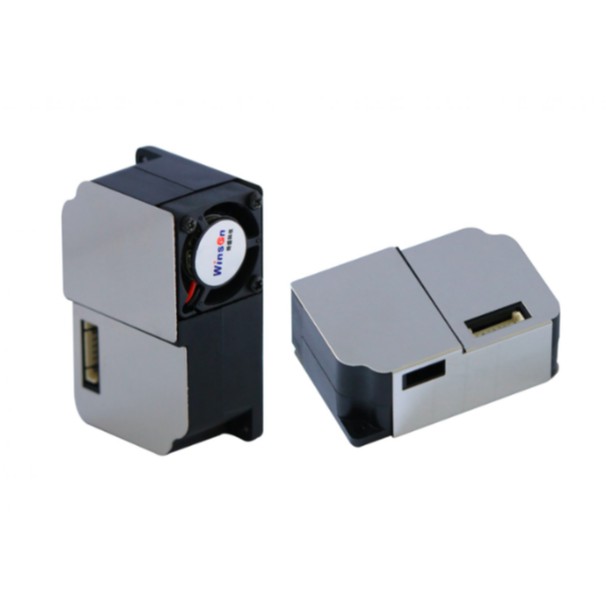

Gambar produk

ZH03A Dust Sensor Laser Particle PM2.5 Detection Debu for arduino
ZH03A Dust Sensor Laser Particle PM2.5 Detection Debu for arduino
ZH03A Dust Sensor Laser Particle PM2.5 Detection Debu for arduino
ZH03A Dust Sensor Laser Particle PM2.5 Detection Debu for arduino
