Detail Dust Sensor Debu SHARP GP2Y1014AU0F PM2.5 Optical AIR GP2Y1010AU0F module

Deskripsi :

Dust Sensor Debu SHARP GP2Y1014AU0F PM2.5 Optical AIR GP2Y1010AU0F
Description
GP2Y1014AU0F is a dust sensor by optical sensing system.
An infrared emitting diode (IRED) and an phototransistor are diagonally arranged into this device.
It detects the reflected light of dust in air. Especially, it is effective to detect very fine particle like the cigarette smoke.
In addition it can distinguish smoke from house dust by pulse pattern of output voltage.

' Features
1. Compact, thin package (46.0 30.0 17.6 mm)
2. Low consumption current (Icc: MAX. 20 mA)
3. The presence of dust can be detected by the
photometry of only one pulse
4. Enable to distinguish smoke from house dust
5. Lead-free and RoHS directive compliant

' Compliance
1. Compliant with RoHS directive (2002/95/EC)

' Applications
1. Detecting of dust in the air.
2. Example: Air purifier, Air conditioner, Air monitor

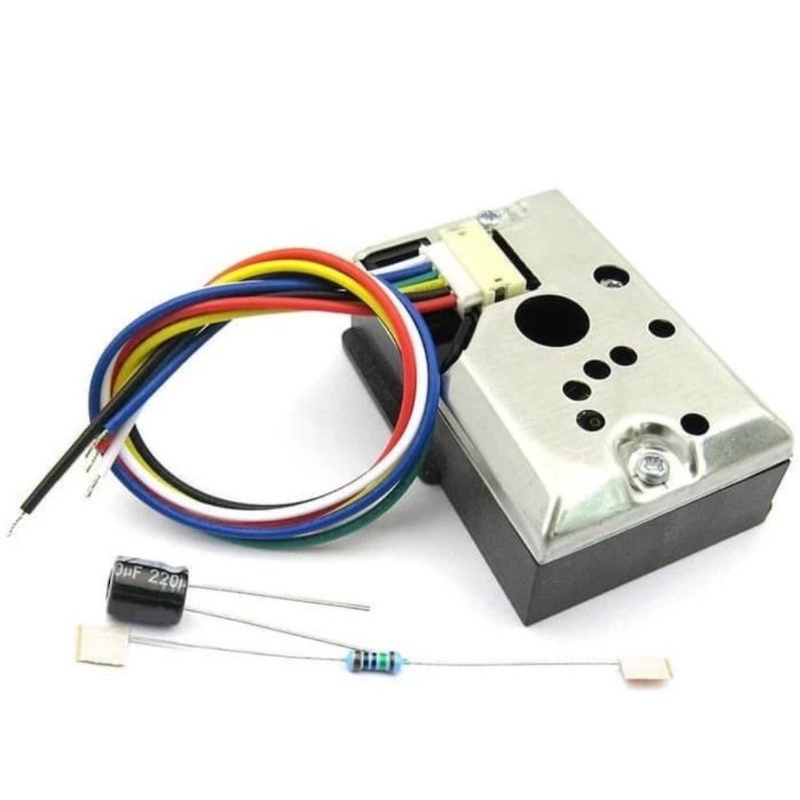

Gambar produk

Dust Sensor Debu SHARP GP2Y1014AU0F PM2.5 Optical AIR GP2Y1010AU0F module
Dust Sensor Debu SHARP GP2Y1014AU0F PM2.5 Optical AIR GP2Y1010AU0F module
