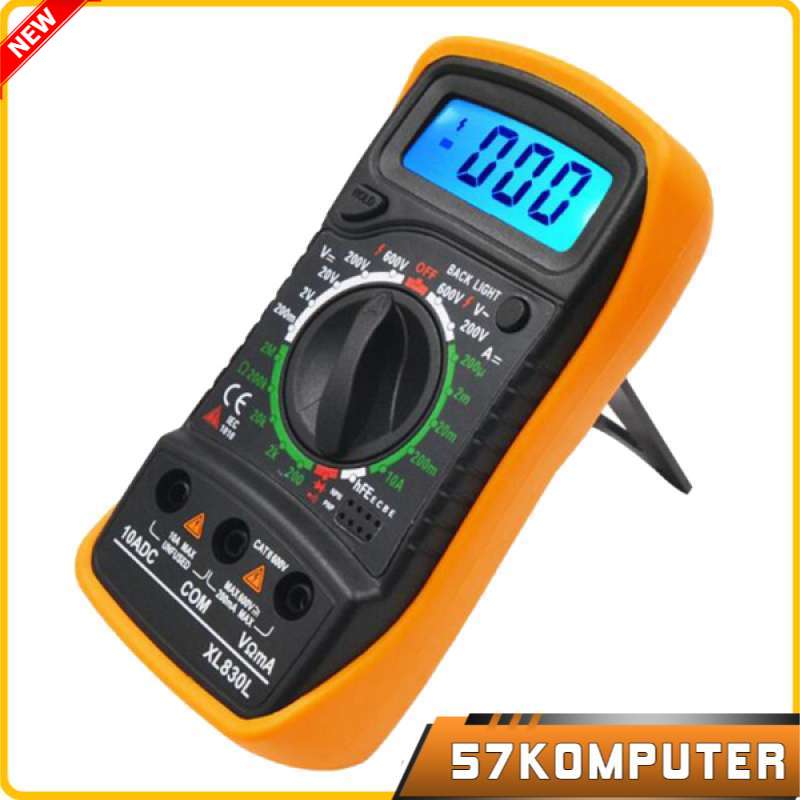

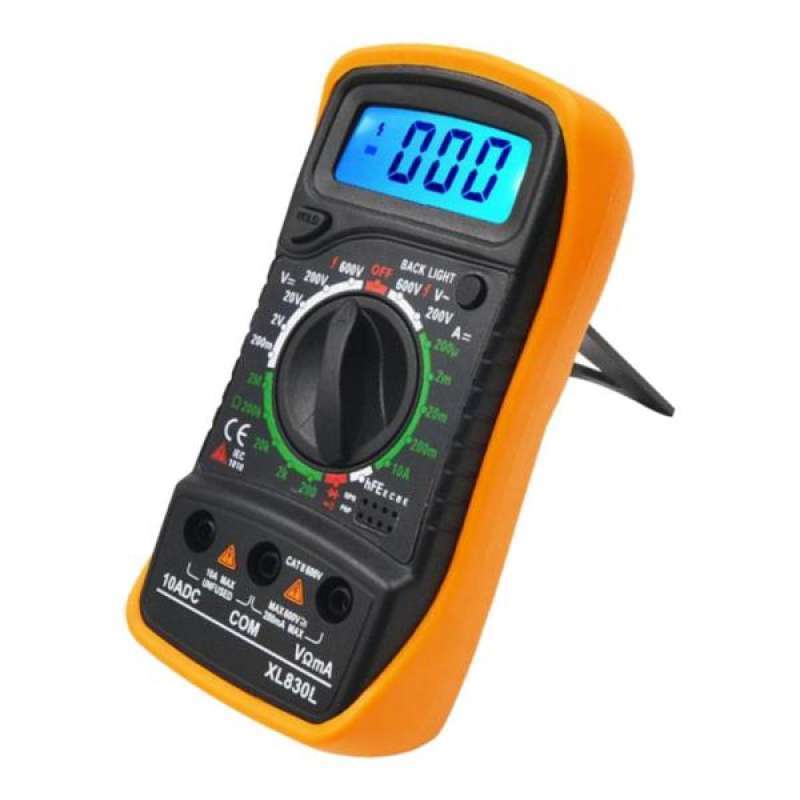

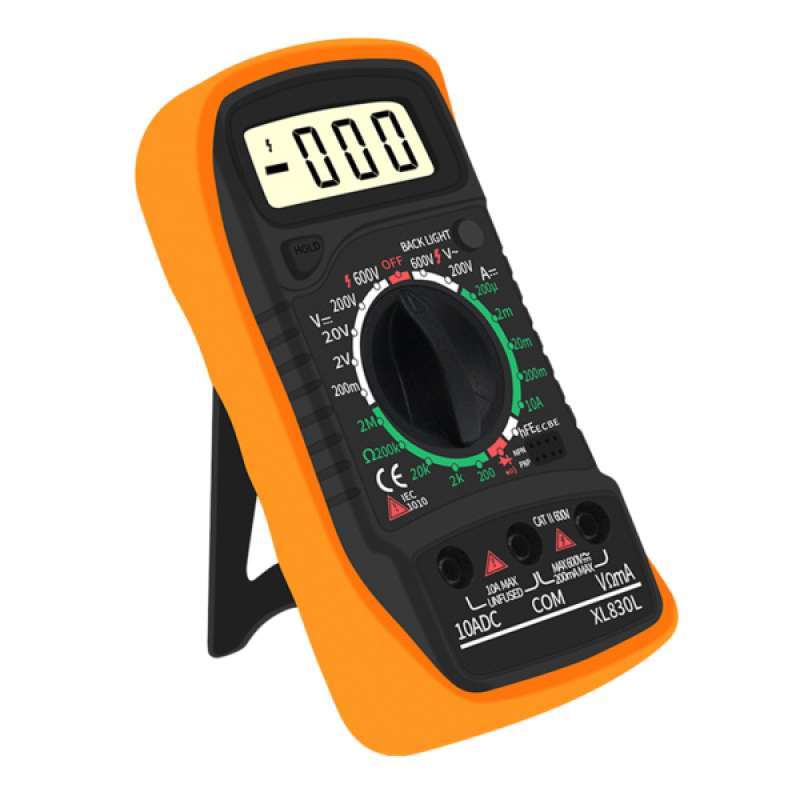

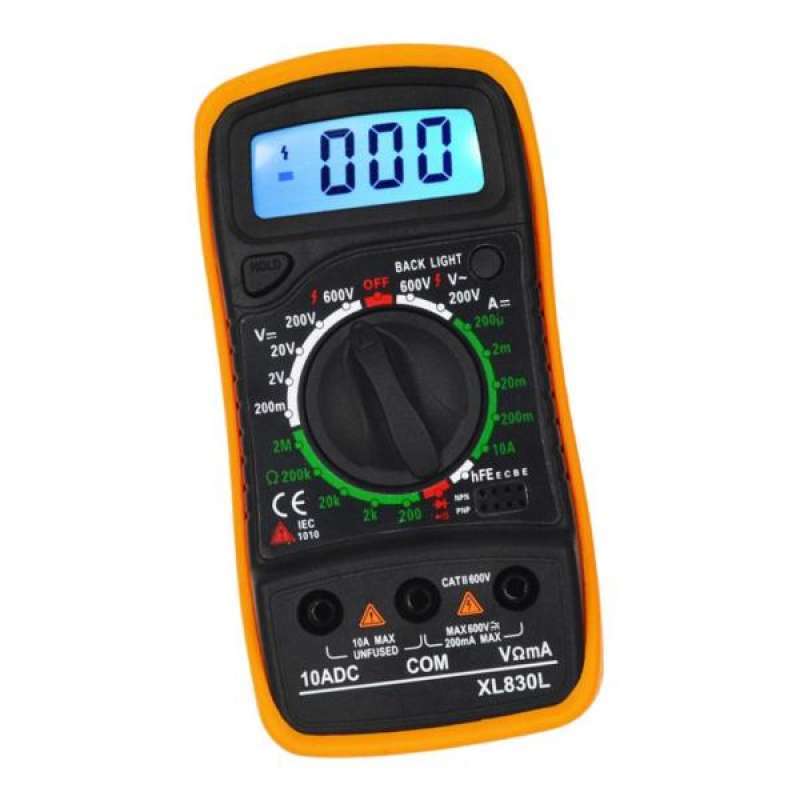

XL-830L Digital Multimeter LCD AC Voltmeter Ammeter Ohmmeter Tester Meter Tool

Detail XL-830L Digital Multimeter LCD AC Voltmeter Ammeter Ohmmeter Tester Meter Tool

Description:

The Digital Multimeter is a practical tool for electrician use. It is easy to operate and the readings indicated directly on the screen. It can be use to overhaul all kinds of circuit boards. It is also an teaching instrument for students.

15mm high LCD Display

20 Position Rotary Switch

Max display: 1999, Auto polarity display.

Portable and compact design, overload protection on all ranges.

Measures AC & DC Voltage, DC Current, Resistance, Audible Continuity, Diode assembly test/Transistor P-N junction test/Transistor HFE test.

Continuity test with buzzer sound in circuit.

Low battery voltage indication.

Housed in a rugged rubber boot with integral stand

Specification:

DC Voltage: 200mV/2V/20V/200V ±0.5%, 600V ±0.8%.

AC Voltage: 200V/600V ±1.2%.

DC Current: 200μA/2mA/20mA ±1%, 200mA ±1.5%, 10A ±3%.

Resistance: 200ω/2Kω/20Kω/200Kω/2Mω ±0.8%.

Fuse protection: F-200mA/250V.

Operating Temperature: -0 to 40.

Overrange Indication: Only figure "1" on the display.

Polarity Indication: "-" displayed for negative polarity.

Low Battery Indication: - /+ display.

Battery: 9V (Battery not include).

Dimension: Approx 138mm x 69mm x 31mm.

Package Includes:

1 x XL830L LCD Digital Multimeter.

2 x Test Loads.

1 x Orange Back Cover

1 x English User Manual.
