DT9205A LCD Digital Multimeter Electric Handheld Ammeter Voltmeter Resistance Capacitance AC and DC Power Meter Tester

Detail DT9205A LCD Digital Multimeter Electric Handheld Ammeter Voltmeter Resistance Capacitance AC and DC Power Meter Tester

Deskripsi Digital Multimeter Layar Jumbo DT9205A ( Fitur melimpah & murah )
Multitester digital dengan ukuran layar jumbo ( 6.3 cm x 3.2 cm ) dan mempunyai fitur yang lengkap, misalnya : mengukur dioda, capasitor, transistor, dll.
Fitur lengkap harga ekonomis.
Model No.: DT9205A
3 1/2 digital LCD display,max.display is 1999
Measure AC/ DC voltage, AC/ DC current, resistance, capacitance and diode, triode
Numerical hold
overlow voltage alarm
overload protection
buzzer function
Auto Power off


Please kindly check the below function and realted measuring range & accuracy.
DC voltage: 200mV-1000V +-(0.5%+1dgt)
AC Voltage: 200mV-750V +-(0.8%+3dgt)
DC: 2mA-20A +-(0.8%+1dgt)
AC: 2mA-20A +-(1.0%+3dgt)
Resistance: 200-200M +-(1.0%+1dgt)
Capacitance: 20nF-200F +-(4.0%+3dgt)
Diode: Ok
Triode: Ok
Circuit breaking or not breaking test: OK
Sleep mode:OK
Numerical hold: Ok
Power Supply: 9V battery
Max. Dislay: 1999

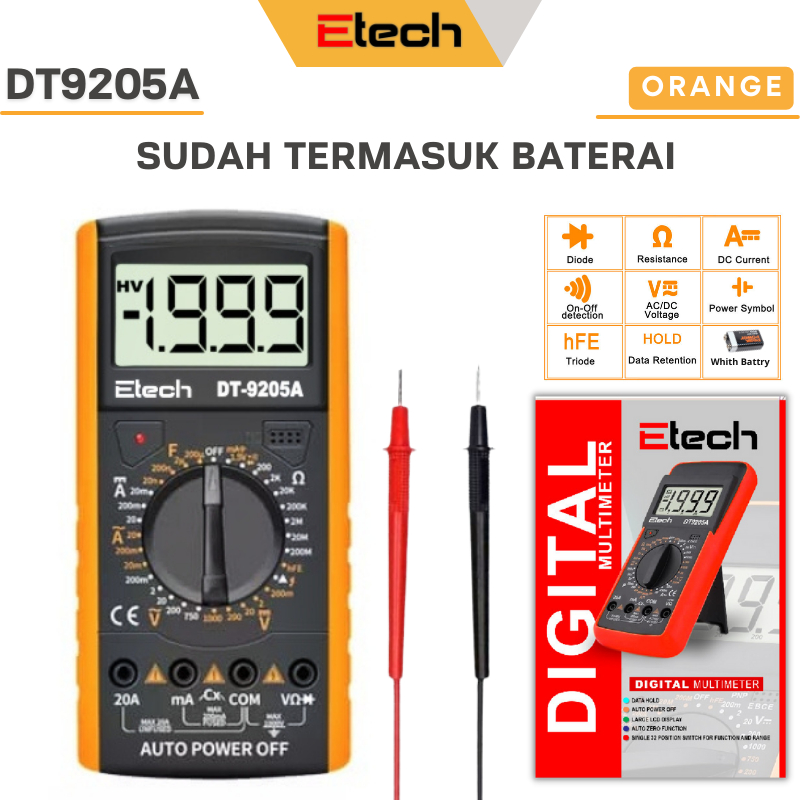

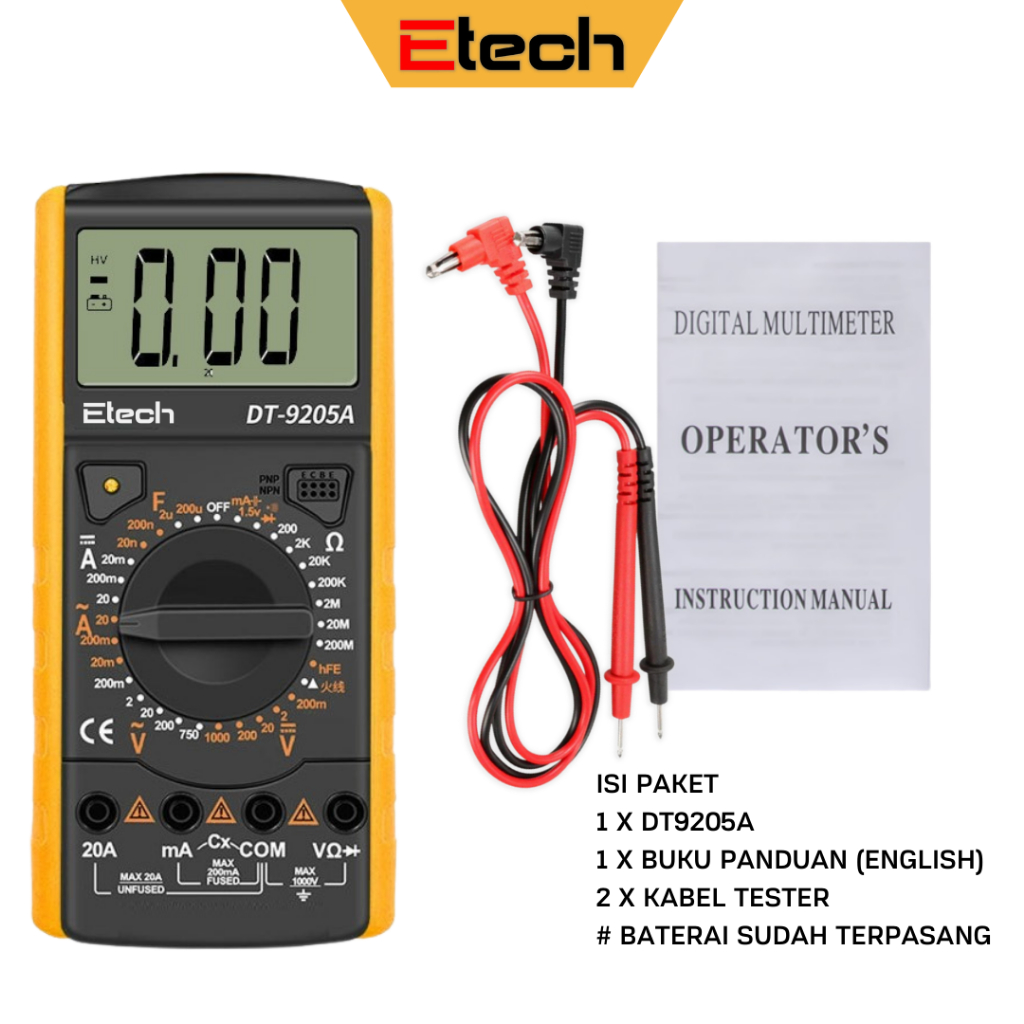

The multimeter contains following:
1) 1set of DT9205A digital multimeter.
2) 1 set of black/red test lead
3) user manual & Battery 9v

Gambar produk
