wiring gitar emerson stratocaster 250K 5way blender pre wired gitar original USA prewired kapasitor potensio jack mono switch gitar

Detail wiring gitar emerson stratocaster 250K 5way blender pre wired gitar original USA prewired kapasitor potensio jack mono switch gitar

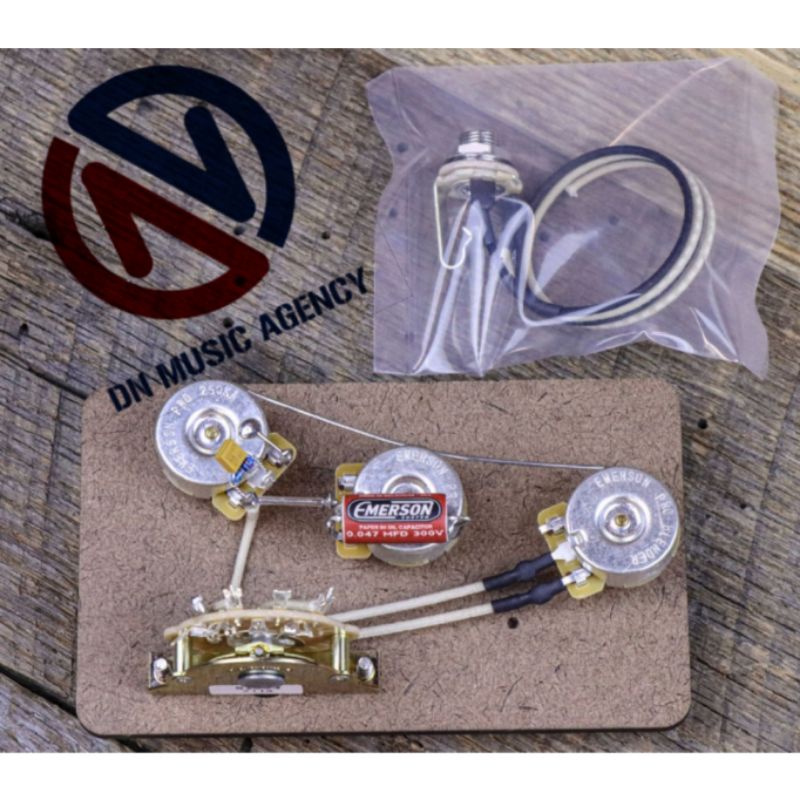

barang dan kelengkapan seperti di fhoto include wired jack switchcraft dan wiring diagram .
plug and play .
original product made in USA .
GARANSI UANG KEMBALI JIKA BARANG TIDAK SESUAI IKLAN .

Descrip tion :
Our Blender wiring has 1 volume, 1 master tone, and a Blender pot. In the neck position you can blend the bridge pickup in as much as you want. In the bridge position you can blend the neck pickup in as much as you want. In positions 2 and 4 you can have all three pickups on at once. The nicest part about it is the fact of it being so user friendly. Everything else seems to be hard to use on the fly.

Specifications :
1: Emerson Pro CTS Volume Pot (Master Volume) [3/8 and Split Shaft]
1: Emerson Pro CTS Tone Pot (Master Tone) [3/8 and Split Shaft]
1: Emerson Pro CTS 250K Blender Pot [3/8 and Split Shaft]
1: 0.047uf Emerson Paper in Oil Capacitor *(0.022uf are used with 500K-Ohm Pots Option)*
1: Volume Mod (Treble Bleed; Retains Clarity when rolling back volume knob)
1: Prewired Jack
1: Wiring Diagram

Control Layout
Master Volume
Master Tone
Blender Pot

SWITCH & BLENDER POT FUNCTION
Blender Pot on 10:
Position 1: Bridge
Position 2: Bridge & Middle
Position 3: Middle
Position 4: Middle & Neck
Position 5: Neck

Blender Pot on 1:
Position 1: Bridge w/ Neck Pickup Blended in
Position 2: Bridge n Middle w/ Neck Pickup Blended in
Position 3: Middle
Position 4: Middle and Neck w/ Bridge pickup Blended in
Position 5: Neck w/ Bridge Pickup Blended in

Installation Tips for Knobs on Split Shaft Pots
Our Emerson Pro split shaft pots are made to fit USA Spec 24 spline push-on knobs. Some USA and Import Guitars will need new USA Spec Knobs as even some US makers use import spec parts which will not work with our pots. We recommend that you dont and rush the knob install process. If your knob is too tight and is not going on ,slightly crimp together the top of the potentiometers shaft ever so slightly so that when you go to push on the knob
