wiring gitar set emerson telecaster prewired 250K 500K 4way reverse original

Detail wiring gitar set emerson telecaster prewired 250K 500K 4way reverse original

100% ORIGINAL .
REAL PICTURE .
MADE IN USA
DN MUSIC AGENCY BERIKAN GARANSI UANG KEMBALI JIKA BARANG TIDAK SESUAI IKLAN.

Description

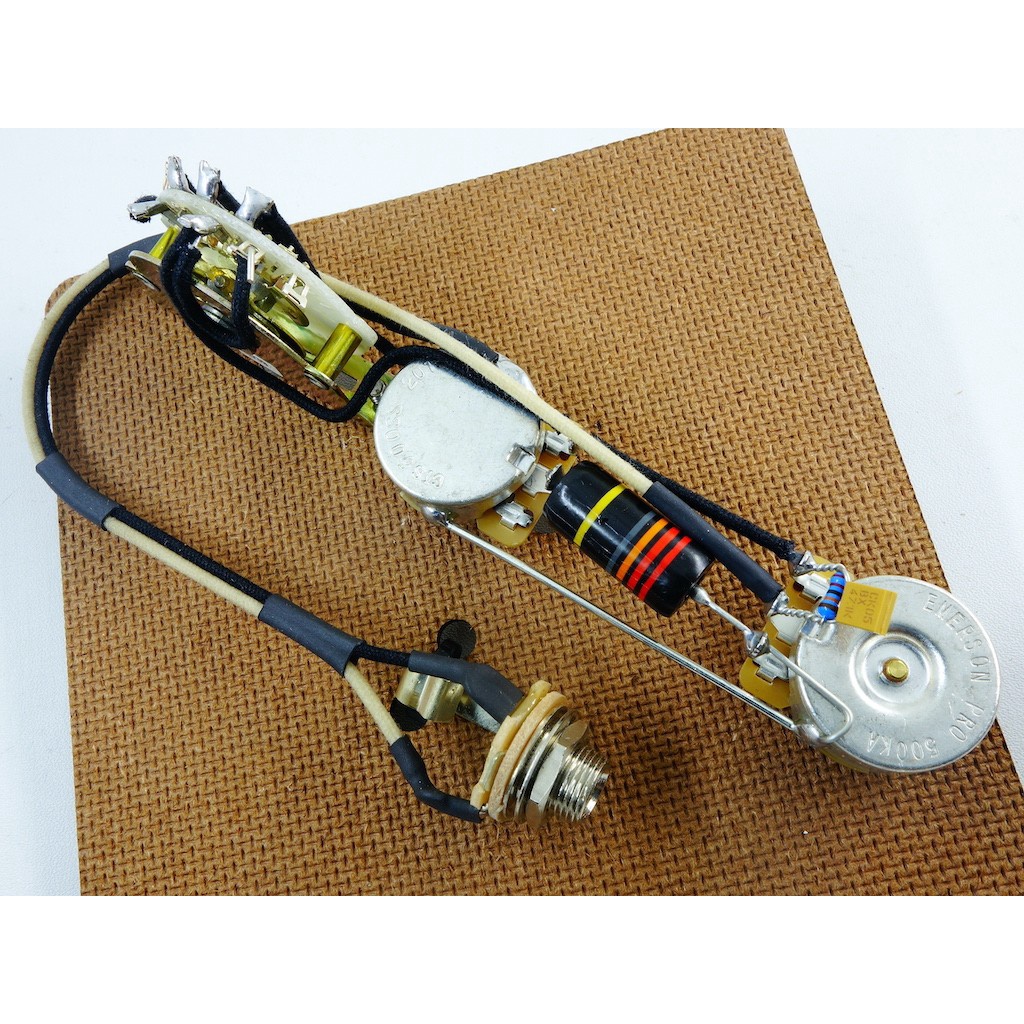

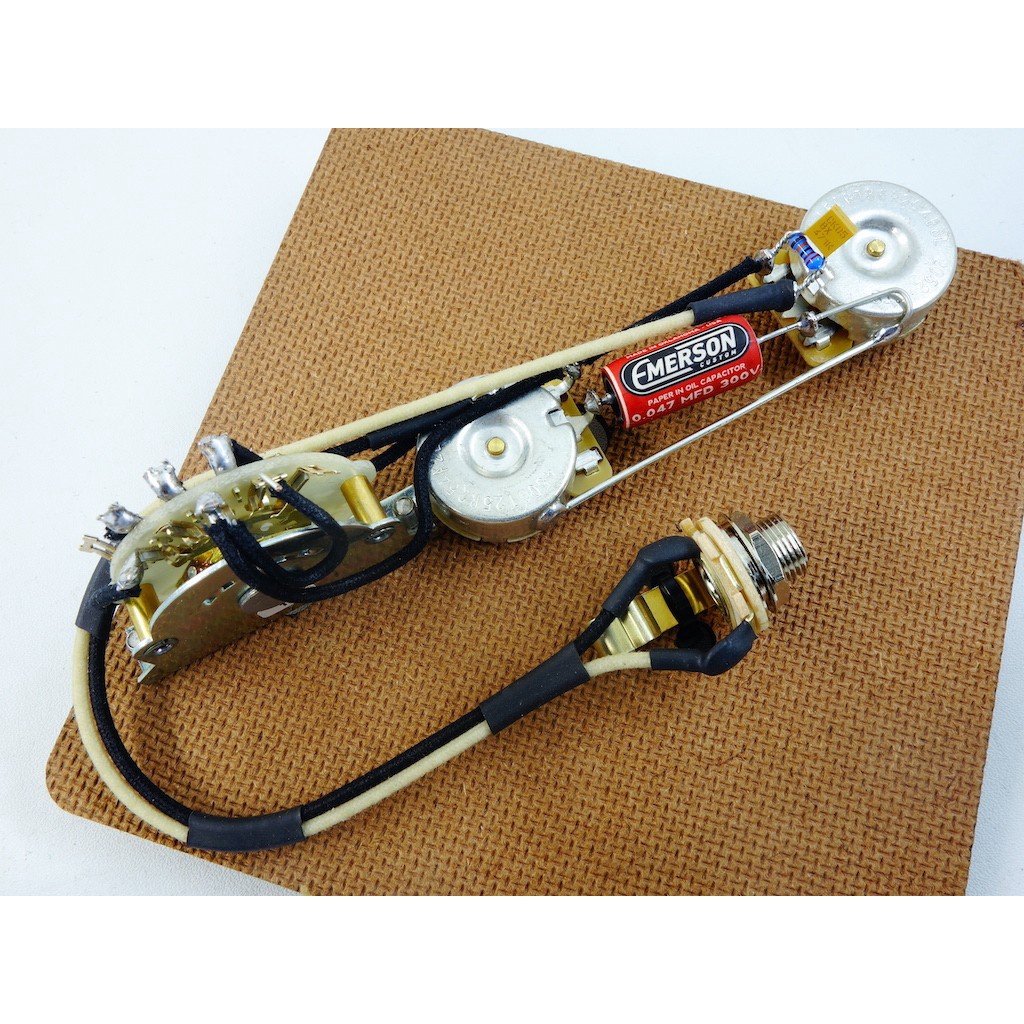

This is a 4-Way Tele prewired assembly for Telecaster style guitars featuring 2 single coil pickups. It will drop into most American Fender Teles with no modification. Wired with 22 AWG vintage push-back wire for that vintage look and sound. Soldered connections to the input jack are insulated with heat-shrink to ensure durability and long life. If you are installing this on an import guitar with metric sized pots you may need to ream your control plate holes to accept the slightly larger US-Spec pots and buy US-Spec knobs.

INCLUDE :
(2) CTS 250k Solid Shaft Potentiometers
(1) Oak Grigsby 4-Way Switch
(1) Switchcraft 1/4" Mono Input Jack
(1) 0.047uf Emerson Paper in Oil Capacitor *(0.022uf are used with 500K-Ohm Pots Option)*
(1) Volume Mod
Wiring Diagram ( INCLUDE )
Switch Positions
Bridge
Bridge & Neck in Parallel
Neck
Bridge & Neck in Series (Humbucker Type Fullness)

Reverse Control Plate Setup Note: Volume, Tone and 4-way Switch. (Volume Control is closest to the bridge pickup for ease of use)
