wiring emerson esquire 3 way 250K gitar pre wired original USA

Detail wiring emerson esquire 3 way 250K gitar pre wired original USA

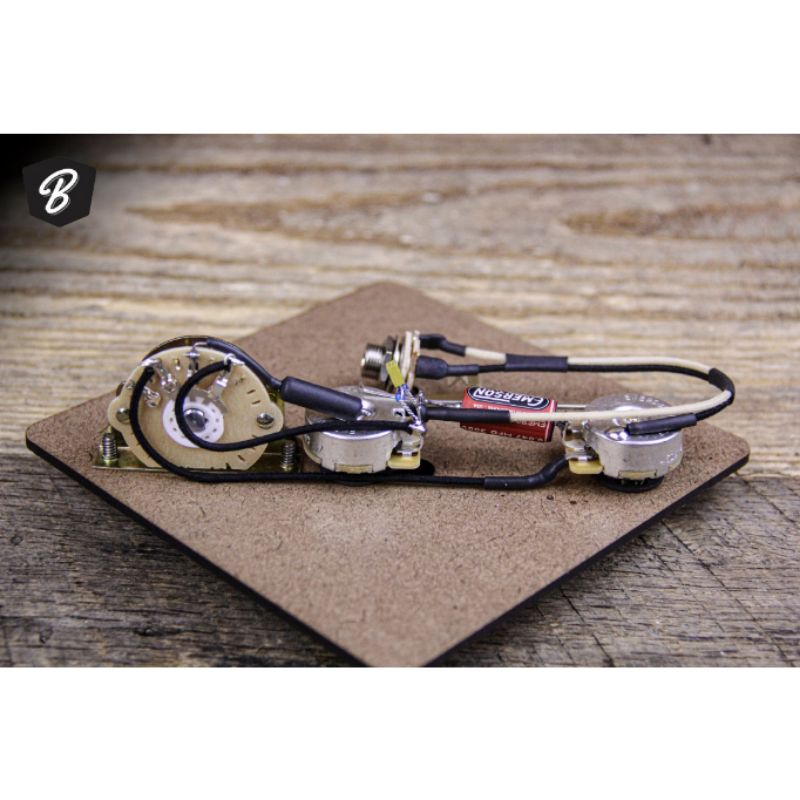

wiring gitar Emerson Esquire 3-Way 250K Pre-Wired Kit

original product
made in USA .
GARANSI UANG KEMBALI JIKA BARANG TIDAK SESUAI IKLAN.

description :

Handwired in the USA

Quality CTS Potentiometers



Switch Positions

Volume Only (Tone Pot out of Circuit)

Standard Volume & Tone (Dial in your Tone pot to your exact liking)

Volume & Fixed 0.0047uf Capacitor for a nice rolled off tone (Tone Pot of Circuit)



Description

The Emerson 3-Way Esquire Prewired kit gives you 3 unique sounding positions, and with the use of our Emerson Pro pots the taper and sweep of the volume and tone pots allow for the perfect tailoring of both volume and tone to your liking.



The 1st Position (Volume Only) is great for a straight up base tone.



Switch to the 2nd position (Standard Volume & Tone) and dial in the tone knob to your liking, giving you enough difference between the 1st positions bypassed tone signal and the 3rd positions fixed capacitor tone.



The 3rd position (Volume & Fixed Capacitor) features a 0.0047uf Paper In Oil capacitor that gives a fixed rolled off tone (Eldred Mod) that is independent of the tone pot. Great for a darker, but still useable tone.



Wired with 22 AWG vintage push-back wire for that vintage look and sound. Soldered connections to the input jack are insulated with heat-shrink to ensure durability and long life. If you are installing this on an import guitar with metric sized pots you may need to ream your control plate holes to accept the slightly larger US-Spec pots and buy US-Spec knobs.

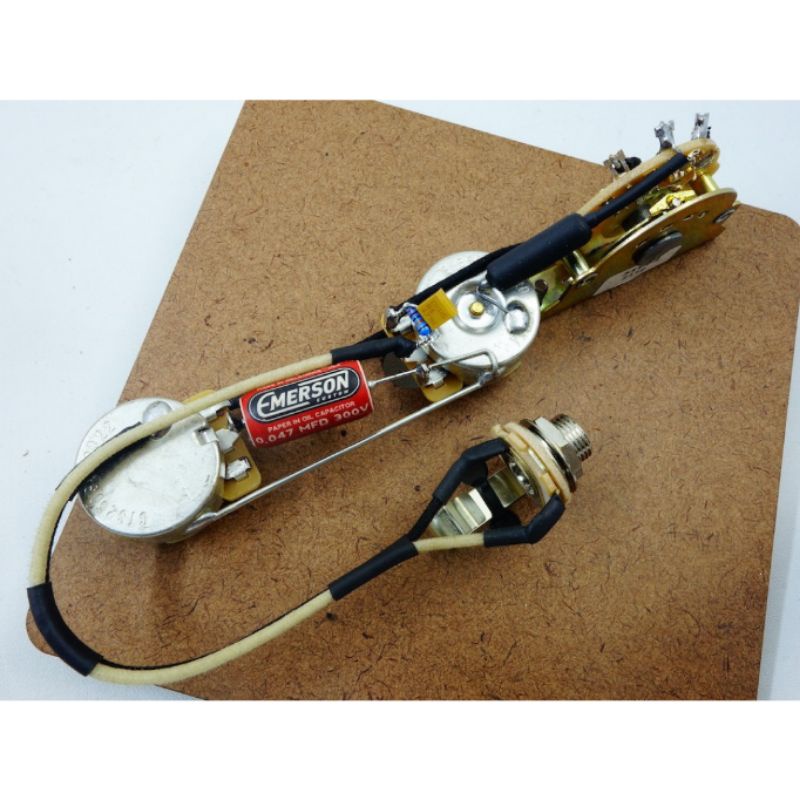

Includes

(2) Quality CTS Solid Shaft w/.375" (3/8") Shaft Length
(1) Oak Grigsby 3-Way Switch
(1) Switchcraft 1/4" Mono Input Jack
(1) 0.047uf Emerson Paper in Oil Capacitor (for Normal Tone, Postion #2)
(1) 0.0047uf Capacitor (for Fixed Tone, Postion #3)
(1) Volume Mod
Wiring Diagram
