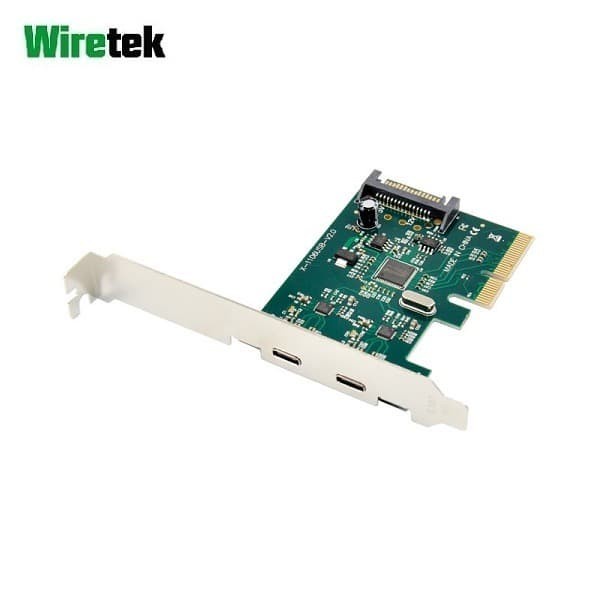

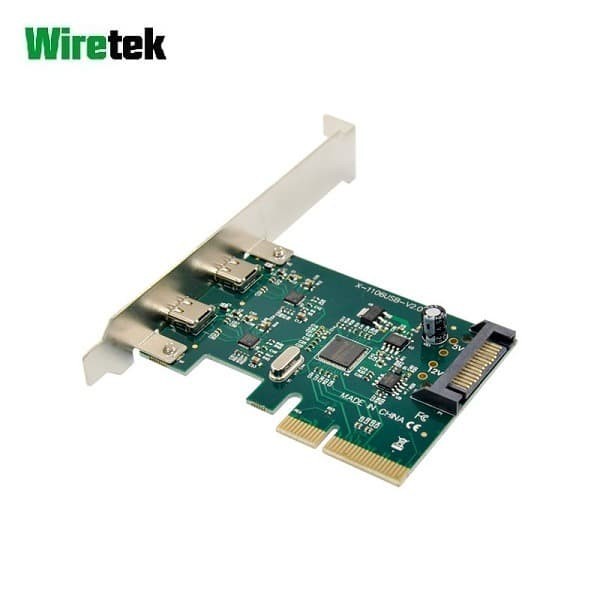

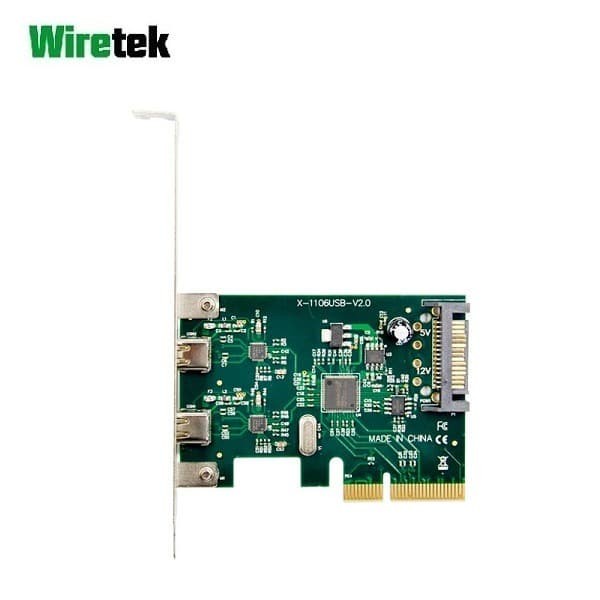

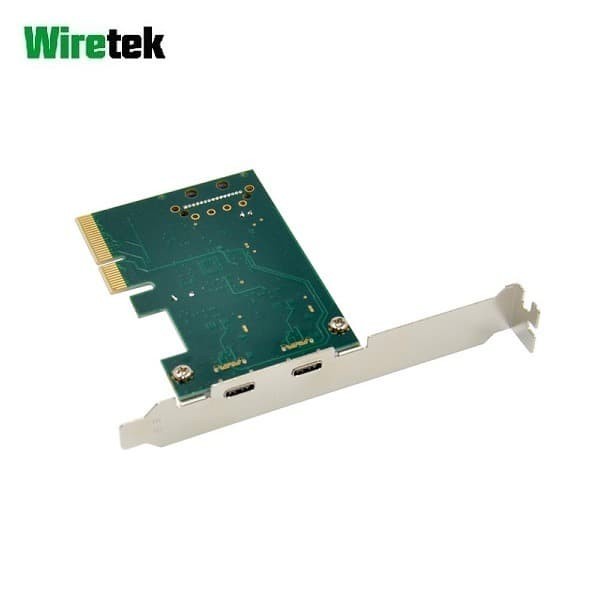

Wiretek PCI-E USB 3.1 Type C Expansion Card 2port

Detail Wiretek PCI-E USB 3.1 Type C Expansion Card 2port

Wiretek PCI-E USB 3.1 Type C Expansion Card 2port

This PCI Express Dual USB3.1 Type C expansion card converts the computer's PCIe high-speed data transfer interface into USB3.1 Type-A and USB3.1 USB-C high-speed data transfer interface, and is backward compatible with USB3.0, USB2.0 and The USB 1.1 device, with a maximum transfer speed of 10 Gbps, supports the hot-swap function of USB devices and is designed to provide faster and higher speeds for personal computers, consumer electronics and communication devices.

Features :
- PCI Express Base Specification Revision 2.0 dual-lane (x2) .
- Compliant with Universal Serial Bus 3.1 specification Gen2.
- Compliant with xHCI (eXtensible Host Controller Interface) specifications Revision 1.1.
- Supports simultaneous operation of multiple USB 3.1, 3.0, USB 2.0 and USB 1.1 devices
- Supports USB data transfer rate of 10G/5G/480/12/1.5 Mbps.
- Expands dual external USB3.1 Super-Speed plus Type-A ports on the system.
- Each USB port supplies maximum +5VDC / 900mA power output to USB device.
- Built-in over current protection on each USB port.
- Support device remote wakeup function from USB keyboard or mouse.
- Hot-swapping feature allows connect/disconnect device without powering down the system.

Specifications :
- Brand : Wiretek
- Chipset : Asmedia ASM1142
- Bus Slot : PCI Express Spec 2.0, Dual-Lane (x2)
- Interface : 2x Type C port
- Data rate : Super Speed 10Gbps
- System : Window Server 2003 / Vista / Win 7 / Win 8.x / Win 10 (X86/X64) (Windows in-box driver), Linux OS

Package Content :
1x PCI-E USB 3.1 Type C Expansion Card 2port Wiretek
1x Mini Bracket
1x CD Driver
