Cable Tester Digital NF-8601W Multifungsi

Detail Cable Tester Digital NF-8601W Multifungsi

Cable Tester Digital NF-8601W adalah alat Network cable tester digital LCD untuk PING / POE BNC RJ45 RJ11 yang dilengkapi dengan Wire Tracker.

Main Function:
1. Check the PING , POE and cross-talk functions for Network cable.
2. Hunt the target cable from a bundle of cables , such as RJ11 / RJ45 / BNC.
3. Under the situation of connecting Ethernet switches / router to find target cable.
4. Locate the short circuit location for 2 cores cable.
5. Test the RJ11 , RJ45 , BNC cable length under open circuit.
6. Wiremap the short, open, cross, reverse circuit for RJ11 / RJ45 / BNC cables.

Specifications :
1. NF-8601 Transmitter :
- Indicator : LCD 320x240mm, with back light
- Cable test types : STP / UTP Cat 5e, 6e network, RJ11 telephone, Coaxial
- Max distance wiremap : 2000 meters
- Max distance hunting for RJ11 : 1000 meters
- Max distance hunting for RJ45 : 1000 meters
- Max distance hunting for BNC : 1000 meters
- Max distance cable length RJ11 : 2000 meters
- Max distance cable length RJ45 : 2000 meters
- Max distance cable length BNC : 2000 meters
- Min distance of calibration : 10 meters
- Accuracy for RJ11 : 3 % ( after calibration )
- Accuracy for RJ45 : 5 % ( after calibration )
- Accuracy for BNC : 5 % ( after calibration )
- Compatible connectors : RJ11, RJ45, Coaxial, PING/POE, BNC
- Cable map indication : LCD ( #1 - #8 )
- Battery type : 3.7V Lithium battery 1800mah
- Work temperature / humidity : 10°C ~ -60°C / 0°C ~ 70°C
- Dimension ( LxWxD ) : 173 x 92 x 34mm

2. NF-8601 Receiver :
- Cable hunting : RJ11, RJ45, BNC
- Types of cable : ≥ 1 cores
- Battery type : 3.7V Lithium battery 1800mah
- Dimension ( LxWxD ) : 183 x 58 x 35mm

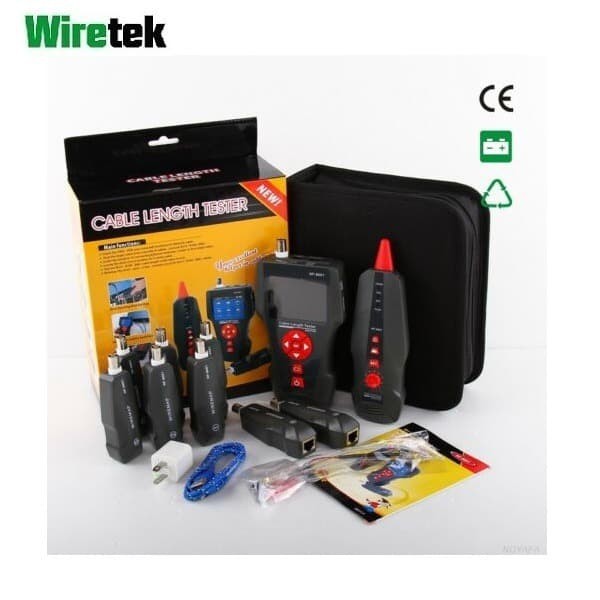

Package Content :
1 x Transmitter
1 x Receiver
8 x Wiremap Adapter
1 x RJ11 cable
1 x RJ45 cable
1 x Cable with crocodile clamp
1 x USB Cable
1 x Charger
2 x Built-in 3.7V lithium battery
1 x Instruction Manual
1 x Black Toolkit
1 x Retail Carton Box

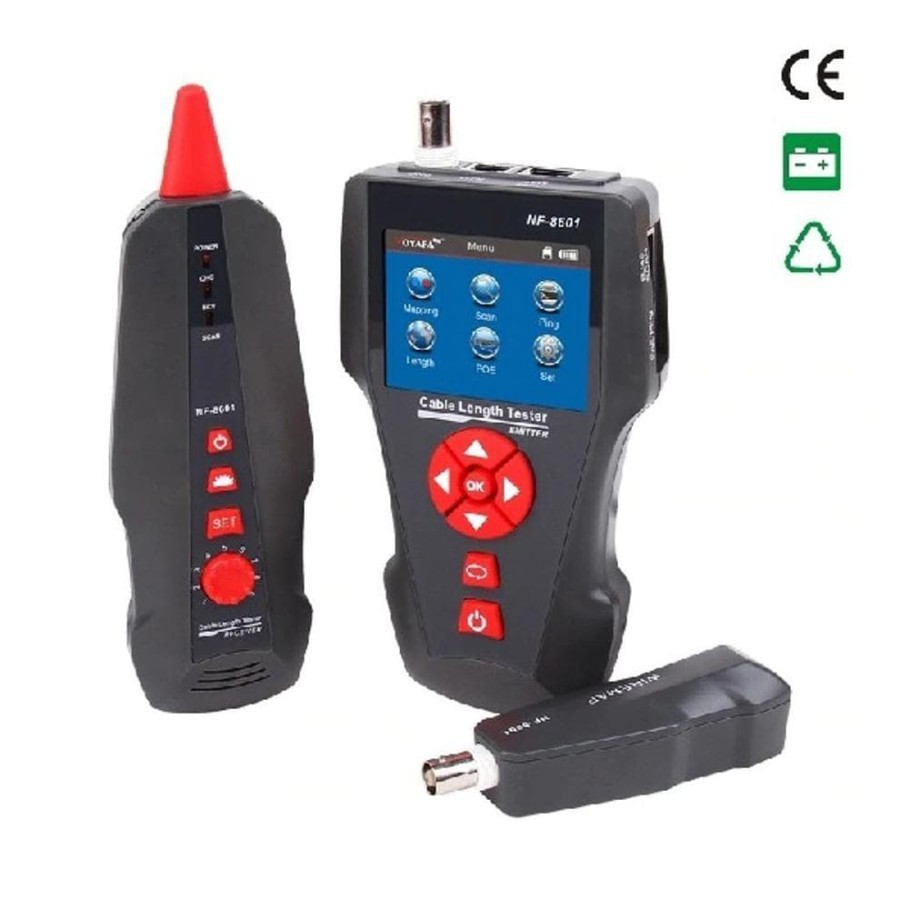

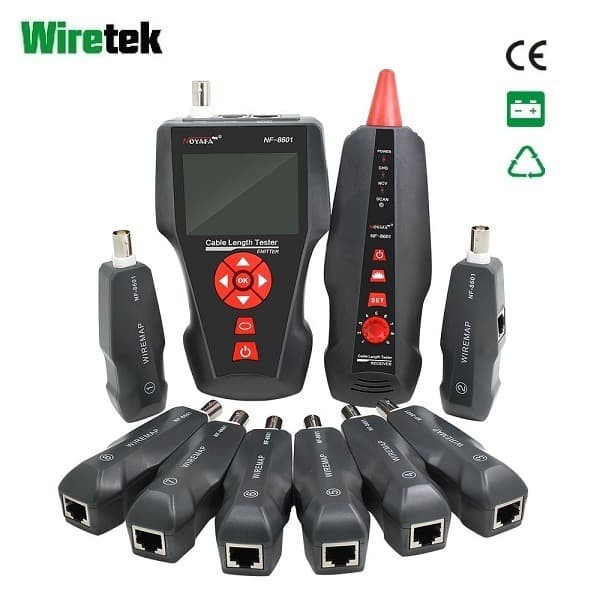

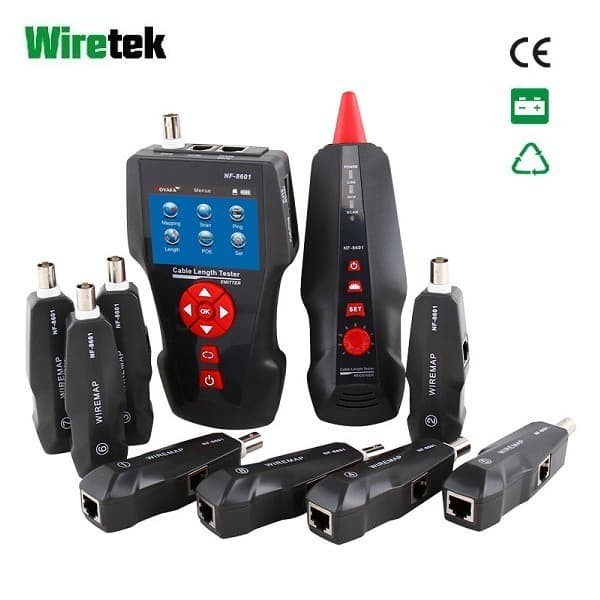

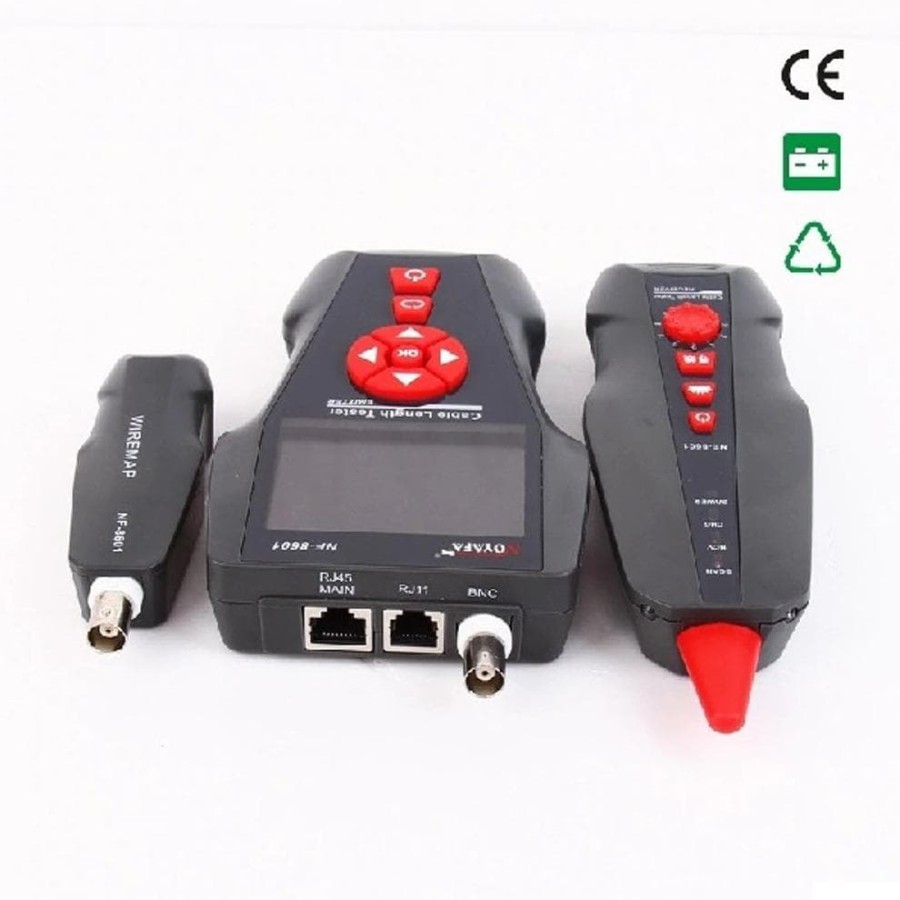

Gambar produk
