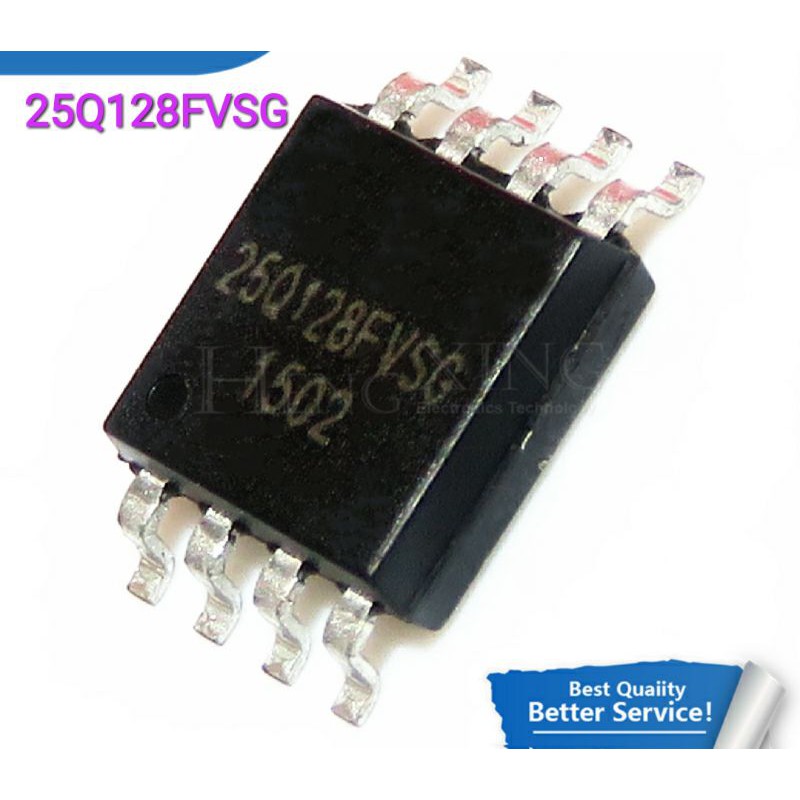

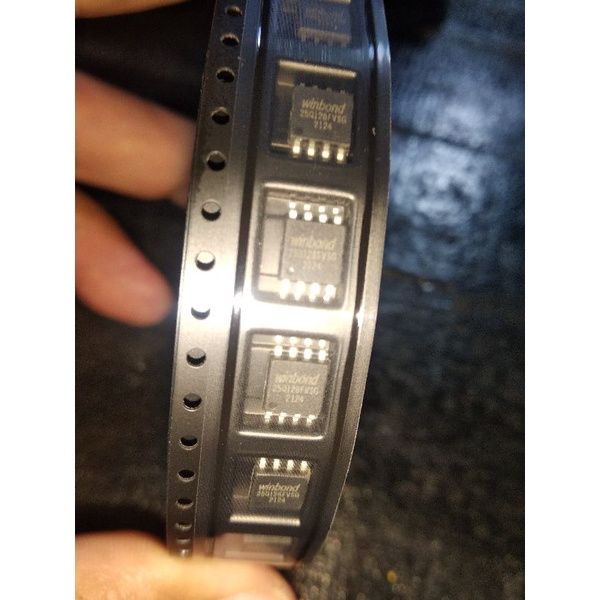

Detail Winbond W25Q128FVSG W25Q128FVSSIG W25Q128 25Q128FVSG 25Q128 SOP-8 16M Flash 128Mbit

Winbond W25Q128 W25Q128FVSSIG W25Q128FVSG SOP8 16M FLASH 128Mbit AY60
Description:
Single/Dual/Quad SPI and QPI operation
Uniform 4KB erasable sectors & 32KB/64KB erasable blocks
65,536 pages (256 bytes), page program in 0.7mS (typ.)
Continuous Read with 8/16/32/64 BByte Wrap
Quad Peripheral interface (QPI) reduces instruction overhead
Clock operation up to 104MHz (208/416MHz equivalent with Dual/Quad I/O Read)
2.7 to 3.6V power supply
4mA active read current, 1A power down current
-40 to +85C operating range
Program/Erase Suspend/Resume, Suspend Status Bit
Factory-programmed unique ID
Electronic ID with Dual/Quad I/O, Hardware and software write protection for top or bottom blocks
Volatile & Non-volatile Status Register Bits
Lock-Down and OTP protection
Serial Flash Discoverable Parameters (SFDP)
3X256byte Security Registers with OTP locks
Complement Array Protection Bit
Individual Block/Sector Write Protection
Software Reset & confiqurable hardware/RESET pin
Programmable output driver strength
