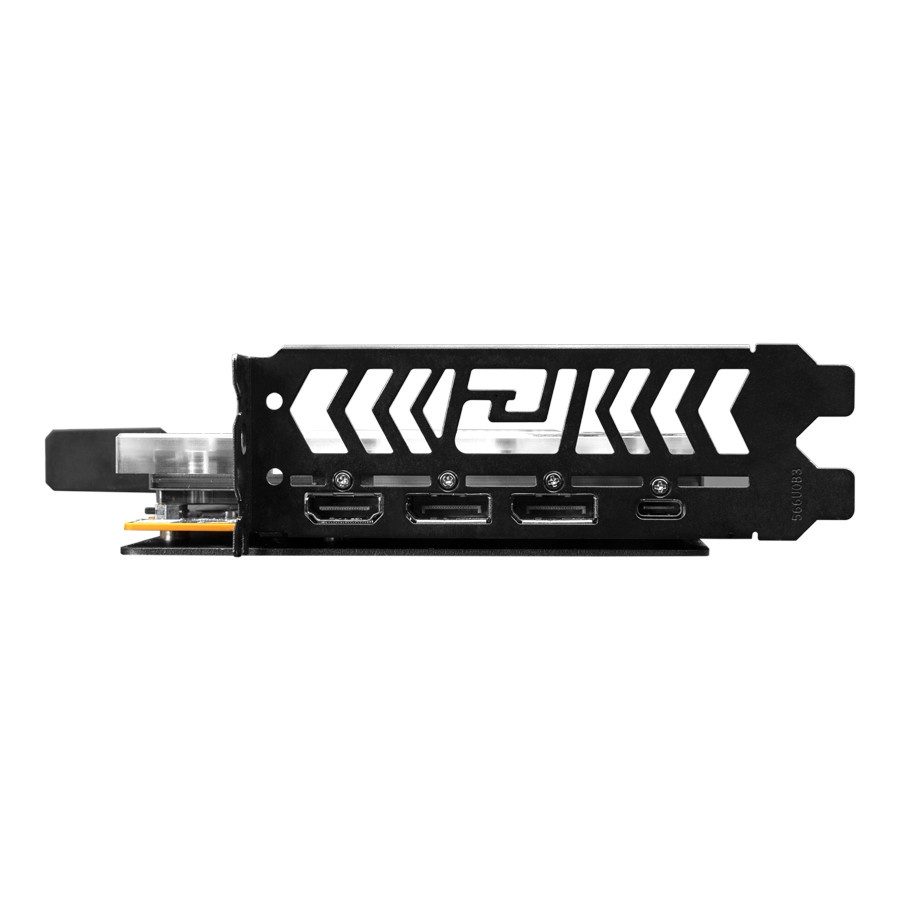

Graphics Engine AXRX 6900XT 16GBD6-W2DHC/OC Video Memory 16GB GDDR6 Stream Processor 5120 Units Engine Clock(OC) up to 2135MHz(Game) up to 2365MHz(Boost) Engine Clock(STD/Silent) Memory Clock 16.0 Gbps Memory Interface 256-bit DirectX® Support 12 Bus Standard PCIE 4.0 Standard Display Connectors 1 x HDMI 2.1 , 2 x DisplayPort 1.4, 1 x USB-C
Customized Specifications Product Remark 'Game Clock' is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. 'Boost Clock' is the maximum frequency achievable on the GPU running a burstyworkload.
Feature Support OpenGL Support CrossFireX™ Technology support (DirectX® 12/Vulkan™) AMD Stream Technology Support AMD Eyefinity Technology Support
Maximum Resolution DisplayPort 7680×4320 HDMI 7680×4320
Power Specs + Board Dimensions Board Dimensions 266mm*162mm*42 mm Minimum System Power requirement (W) 900W Extension Power Connector Three 8-pin PCI Express Power connectors
