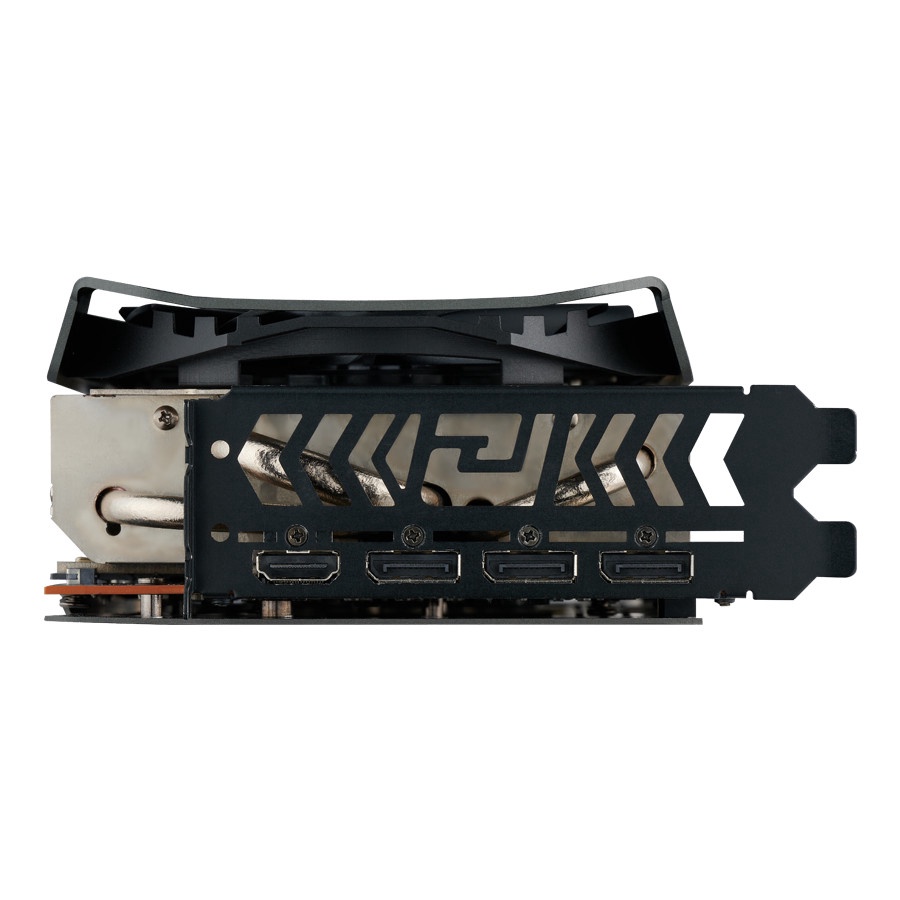

Graphics Engine AXRX 6950 XT 16GBD6-3DHE/OC Video Memory 16GB GDDR6 Stream Processor 5120 Units Engine Clock(OC) up to 2226MHz(Game) up to 2435MHz(Boost) Engine Clock(STD/Silent) up to 2116MHz(Game) up to 2324MHz(Boost) Memory Clock 18.0 Gbps Memory Interface 256-bit DirectX® Support 12 Bus Standard PCIE 4.0 x16 Standard Display Connectors 1 x HDMI 2.1 , 3 x DisplayPort 1.4
Feature Support OpenGL Support CrossFireX™ Technology support (DirectX® 12/Vulkan™) AMD Stream Technology Support AMD Eyefinity Technology Support AMD Hypermemory
Maximum Resolution VGA DVI DisplayPort 7680×4320 HDMI 7680×4320
Power Specs + Board Dimensions Board Dimensions 320mm*135mm*62 mm 332mm*153mm*62 mm Minimum System Power requirement (W) 950W Extension Power Connector Three 8-pin PCI Express Power connectors
