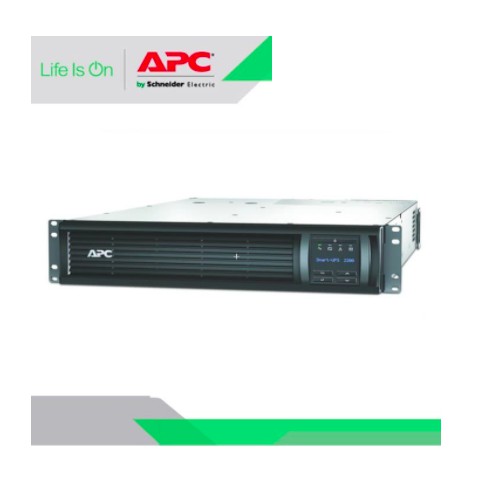

UPS APC SMT2200RMI2UNC Smart-UPS 2200VA LCD RM 2U 230V SmartConnect

Detail UPS APC SMT2200RMI2UNC Smart-UPS 2200VA LCD RM 2U 230V SmartConnect

OUTPUT
Max Configurable Power (Watts) : 1.98kWatts / 2.2kVA
Output Voltage Note : Configurable for 220 : 230 or 240 nominal output voltage
Output Frequency (sync to mains) : 50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages : 220, 240
Topology : Line interactive
Waveform type : Sine wave
Transfer Time : 4 ms typical : 8 ms maximum

INPUT
Input frequency : 50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations : 151 - 302 Adjustable, 160 - 286V
Number of Power Cords : 1
Other Input Voltages : 220, 240

BATTERIES & RUNTIME
Battery type : Lead-acid battery
Typical recharge time : 3hour(s)
Replacement Battery : RBC43
Expected Battery Life (years) : 3 - 5
RBC Quantity : 1
Battery Charge Power (Watts) : 169 Watts

COMMUNICATIONS & MANAGEMENT
Interface Port(s) : RJ-45 10/100 Base-T, RJ-45 Serial, SmartSlot, USB
Pre-Installed SmartSlot™ Cards : AP9631
Control panel : LED status display with on line : on battery : replace battery and overload indicators, Multifunction LCD status and control console

SURGE PROTECTION & FILTERING
Surge energy rating : 375Joules

PHYSICAL
Maximum Height : 8.6CM
Maximum Width : 48.0CM
Maximum Depth : 68.3CM
Net Weight : 42.22KG
Shipping weight : 49.63KG
Shipping Height : 25.4CM
Shipping Width : 60.0CM
Shipping Depth : 98.0CM
Units per Pallet : 8.0

ENVIRONMENTAL
Operating Temperature : 0 - 40 °C
Operating Relative Humidity : 0 - 95 %
Operating Elevation : 0 - 3048meters
Storage Temperature : -15 - 45 °C
Storage Elevation : 0 - 15240meters
Audible noise at 1 meter from surface of unit : 55.0dBA
Online thermal dissipation : 215.0BTU/hr

CONFORMANCE
Approvals : CE, EAC, EN 60950, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE
Standard warranty : 3 years repair or replace (excluding battery) and 2 years for battery
