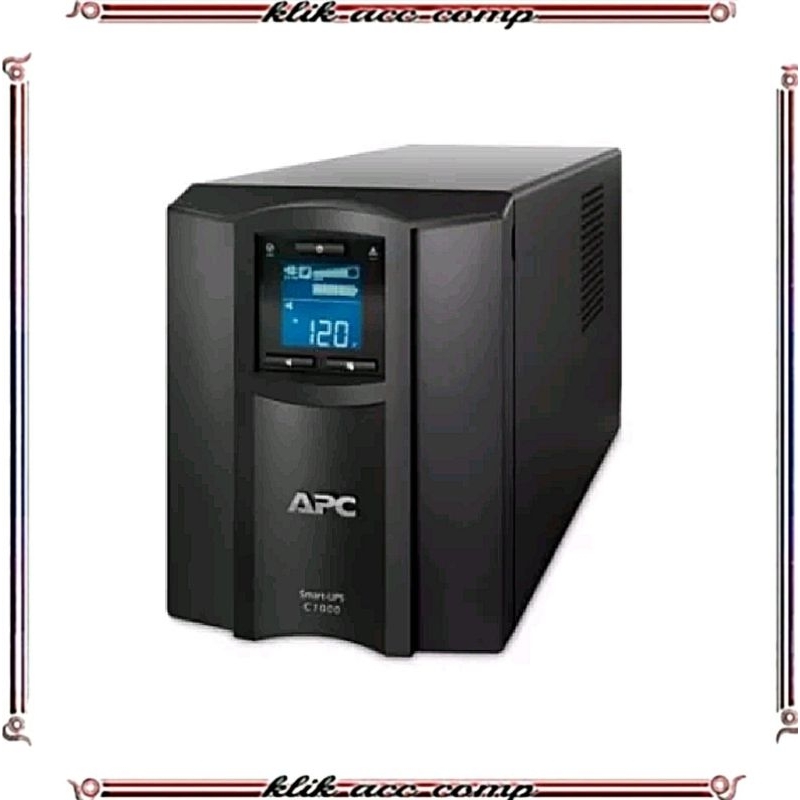

UPS APC SMC-1000IC Smart UPS 230V Output Max Configurable Power (Watts) 600 Watts

Detail UPS APC SMC-1000IC Smart UPS 230V Output Max Configurable Power (Watts) 600 Watts

Output
Max Configurable Power (Watts)
600 Watts / 1.0kVA
Output Voltage Distortion
Less than 5 %
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages
220, 240
Topology
Line interactive
Waveform type
Sine wave
Transfer Time
6 ms typical : 10 ms maximum
Input
Input frequency
50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations
170 - 300 Adjustable, 180 - 287V
Other Input Voltages
220, 240
Batteries & Runtime
Battery type
Lead-acid battery
Typical recharge time
3hour(s)
Replacement Battery
APCRBC142
Expected Battery Life (years)
3 - 5
RBC Quantity
1
Battery Charge Power (Watts)
72 Watts
Runtime
View Runtime Graph
View Runtime Chart
Efficiency
View Efficiency Graph
Communications & Management

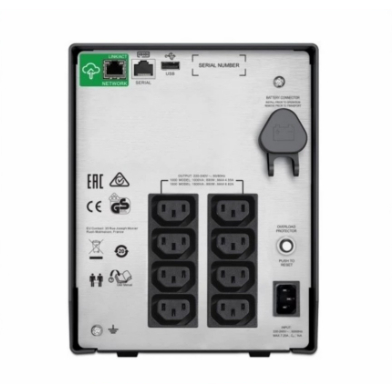

Interface Port(s)
RJ-45 Serial, USB
Control panel
Multifunction LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays
Surge Protection and Filtering
Surge energy rating
455Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
