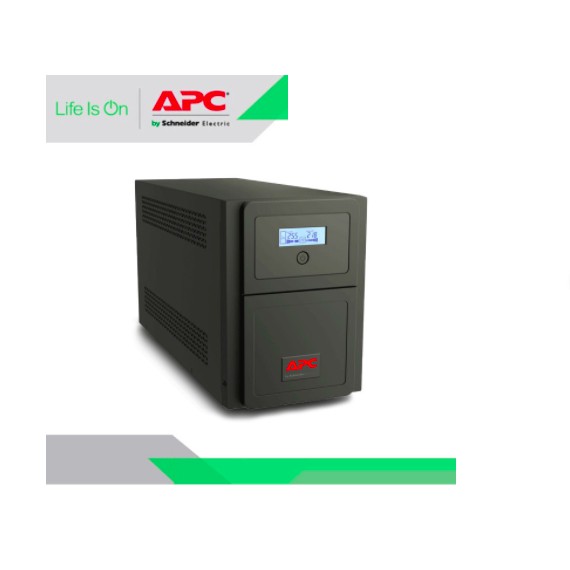

UPS APC Easy UPS SMV 1000VA, Universal Outlet, 230V SMV1000I-MS

Detail UPS APC Easy UPS SMV 1000VA, Universal Outlet, 230V SMV1000I-MS

- More real output power with 0.7 Pf

- Pure Sinewave

- Generator Compatible

- Rugged Metal Construction

- Automatic Voltage Regulation

- LCD Display

- Generous Number of Outlets

- Battery Connector

- Communication Ports



Technical Specifications :

- Max Configurable Power (Watts) : 700 Watts / 1000VA

- Output Frequency Range (Batt. Mode): 50 Hz or 60 Hz ± 1 Hz

- Output Connections : (4) Universal battery backup outlets

- Nominal Output Voltage : 230V

- Transfer Time : Typical 2-6 ms, 12ms max.

- Topology : Line interactive

- Waveform type : Pure Sine Wave

- Input frequency : 50/60 Hz (auto sensing) ±1Hz

- Input voltage range : 165-290 Vac ±5Vac

- Input Connection : IEC C14

- Typical recharge time : 4-6 hours recover to 90% capacity

- Battery type (maintenance-free) : 12V/7Ah x2

- Control panel : AC Mode, AVR Mode, Battery Mode, Battery Level, Load Level, Input

Voltage, Output Voltage, System Error, Battery Malfunction

- Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

- Interface Port(s) : USB

- Physical Maximum (Height x Width x Depth) : 220MM x 160MM x 410MM

- Physical Shipping (Height x Width x Depth) : 339MM x 272MM x 508MM

- Physical Net Weight : 13.6KG

- Physical Shipping Weight : 16.6KG

- Protection Class : IP20

- Operating Temperature : 0 - 40 °C

- Standard warranty : 2 years
