UPS APC BX650LI MS BACK UPS 650VA 230V

Detail UPS APC BX650LI MS BACK UPS 650VA 230V

GENERAL
Brand : APC
Part Number : BX650LI-MS
Model : Smart-UPS

OUTPUT
Output power capacity : 325Watts / 650VA
Max Configurable Power (Watts) : 325Watts / 650VA
Nominal Output Voltage : 230V
Output Voltage Distortion : Less than 5% at full load
Output Frequency (sync to mains) : 50/60 Hz +/-1 Hz
Topology : Line Interactive
Waveform type : Stepped approximation to a sinewave
Transfer Time : 4ms typical : 6ms maximum

INPUT
Nominal Input Voltage : 230V
Input frequency : 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections : NEMA 5-15P
Cord Length : 1.22meters
Input voltage range for main operations : 180 - 287V
Number of Power Cords : 1
Type of Input Protection Required : gL fuse
Maximum Input Current : 5.0A
Input Power Factor at Full Load : 0.5

BATTERIES & RUNTIME
Battery type : Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules : 1
Typical recharge time : 4hour(s)
Replacement Battery : APCRBC110
Expected Battery Life (years) : 2 - 4

COMMUNICATIONS & MANAGEMENT
Control panel : LED Status display with On Line : On Battery
Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

SURGE PROTECTION & FILTERING
Surge energy rating : 160Joules
Filtering : --

PHYSICAL
Maximum Height : 141mm
Maximum Width : 101mm
Maximum Depth : 300mm
Net Weight : 4.33KG
Shipping weight : 4.58KG
Shipping Height : 223mm
Shipping Width : 143mm
Shipping Depth : 347mm
Color : Black
Units per Pallet : 80.0

ENVIRONMENTAL
Operating Temperature : 0 - 40 C
Operating Relative Humidity : 0 - 95 %
Operating Elevation : 0-1968.3meters
Storage Temperature : -20 - 50 C

CONFORMANCE
Standard warranty : 2 years repair or replace

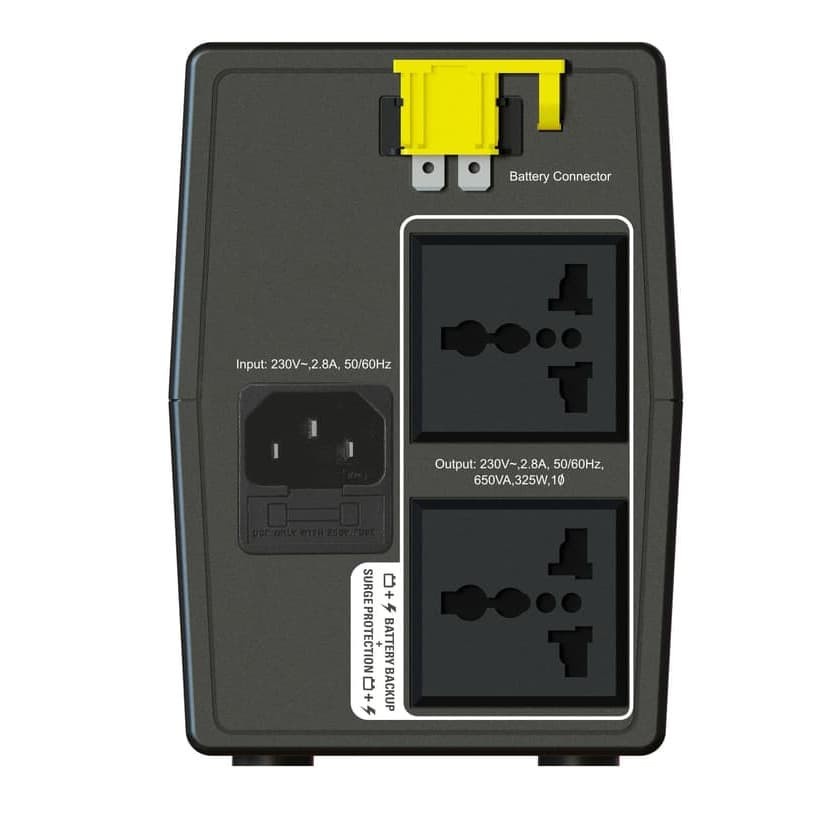

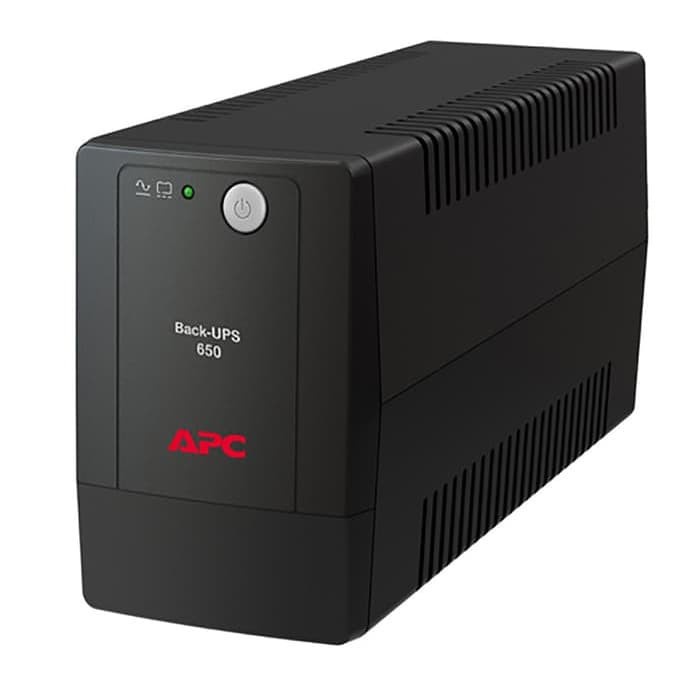

Gambar produk
