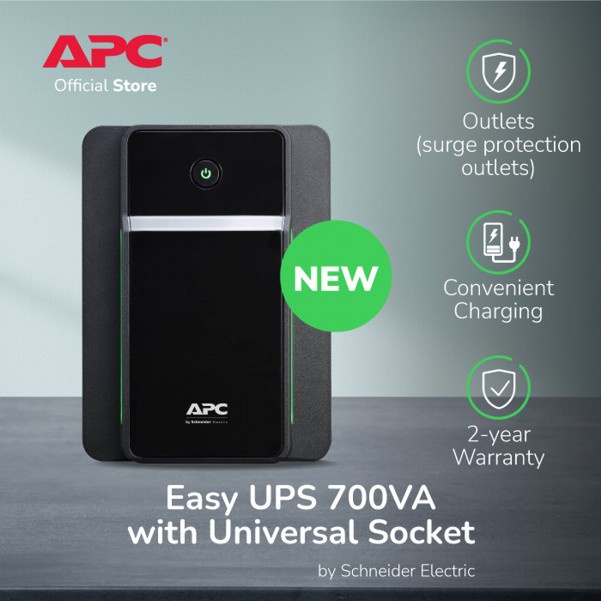

UPS APC BVX700LUI-MS BVX700LUIMS BVX700 EASY UPS 700VA 360Watt USB

Detail UPS APC BVX700LUI-MS BVX700LUIMS BVX700 EASY UPS 700VA 360Watt USB

UPS APC BVX700LUI-MS BVX700LUIMS BVX700 EASY UPS 700VA 360Watt USB

Spesifikasi :

Output
Max Configurable Power (Watts)
360 Watts / 700VA
Output Frequency (sync to mains)
50/60 Hz +/- 1 Hz Sync to mains
Topology
Line interactive
Waveform type
Stepped approximation to a sinewave
Transfer Time
6 ms typical : 10 ms maximum

Input
Input frequency
50/60 Hz +/- 5 Hz Auto-sensing
Input voltage range for main operations
170 - 280 (230 V) ACV
Number of Power Cords 1
Input Power Factor at Full Load 0.51

Batteries & Runtime
Battery type
Lead-acid battery
Typical recharge time 8hour(s)
Nominal Battery Voltage 12 V
Expected Battery Life (years) 1 - 2
Battery Volt-Amp-Hour Capacity 84
Runtime
View Runtime Graph
Efficiency
View Efficiency Graph

Communications & Management
Control panel
LED Status display with on line : on battery
Audible Alarm
Alarm when on battery : distinctive low battery alarm

Surge Protection and Filtering
Surge energy rating
273Joules

Physical
Maximum Height 138MM, 13.8CM
Maximum Width 98MM, 9.8CM
Maximum Depth 310MM, 31.0CM
Net Weight 4.2KG
Shipping weight 4.5KG
Shipping Height 222MM, 22.2CM
Shipping Width 142MM, 14.2CM
Shipping Depth 346MM, 34.6CM
Color Black
SCC Codes 10731304417610
