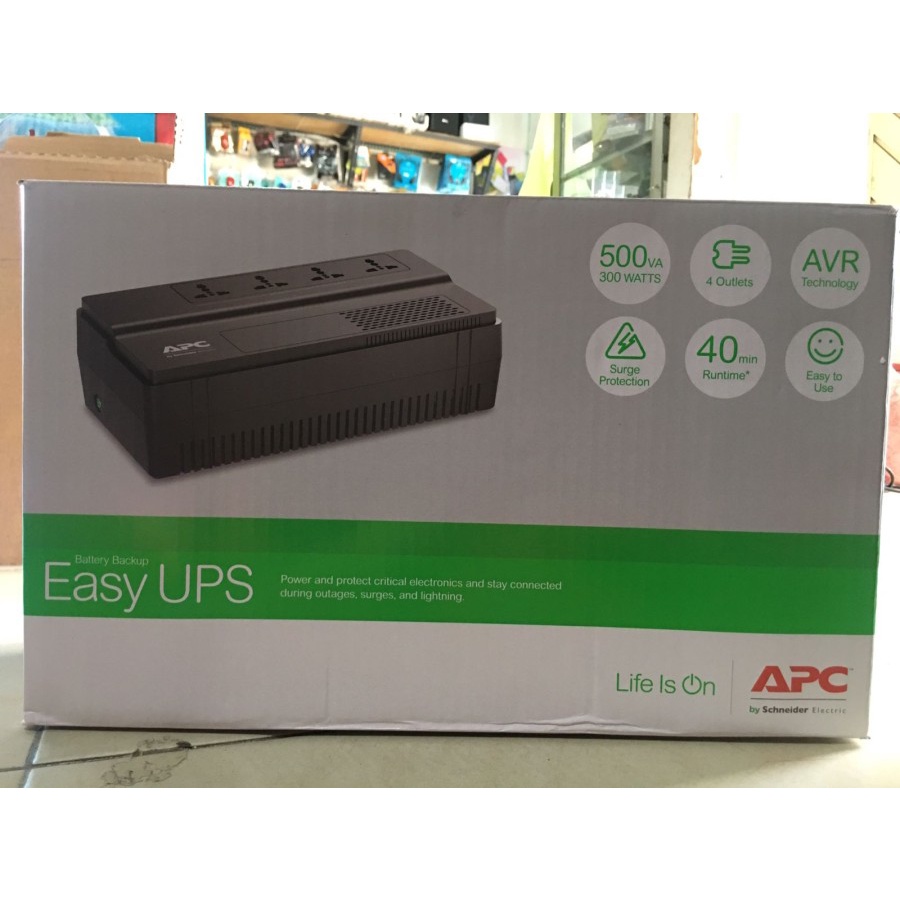

UPS APC BV500I-MS

Detail UPS APC BV500I-MS

+ Features
- Automatic Voltage Regulation (AVR)
- Wall-mount holes
- Battery and surge protected outlets
- Safety-agency approved
- Intelligent battery management
- Battery failure notification
- Sleek design
- Cold-start capable
- LED Indicators
- Audible alarms


+ Technical Specifications
- Output
Max Configurable Power (Watts) : 300 Watts / 500VA
Output Frequency (sync to mains) : 50/60 Hz +/- 1 Hz Unsynchronised
Topology : Line interactive
Waveform type : Stepped approximation to a sinewave
Transfer Time : 6 ms typical : 10 ms maximum

- Input
Input frequency : 50/60 Hz +/- 5 Hz Auto-sensing
Input voltage range for main operations : 170 - 280V
Number of Power Cords : 1

- Batteries & Runtime
Battery type : Lead-acid battery
Typical recharge time : 8hour(s)
Expected Battery Life (years) : 3 - 5

- Communications & Management
Control panel : LED Status display with on line : on battery
Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

- Surge Protection and Filtering
Surge energy rating : 156Joules

- Physical
Maximum Height : 93MM, 9.25CM
Maximum Width : 161MM, 16.05CM
Maximum Depth : 305MM, 30.5CM
Net Weight : 3.9KG
Shipping weight : 4.2KG
Shipping Height : 237MM, 23.7CM
Shipping Width : 143MM, 14.3CM
Shipping Depth : 373MM, 37.3CM
Color : Black

- Environmental
Operating Temperature : 0 - 40 °C
Operating Relative Humidity : 0 - 90 %
Operating Elevation : 0 - 2032.1meters
Storage Temperature : -20 - 50 °C
Storage Elevation : 0 - 15240meters

Audible noise at 1 meter from surface of unit : 40.0dBA

Protection Class : IP20

- Conformance
Approvals : CE
Standard warranty : 2 years repair or replace

- Sustainable Offer Status
RoHS : Compliant
