UPS APC Back UPS BX 2200VA 1200W BX2200MI-MS

Detail UPS APC Back UPS BX 2200VA 1200W BX2200MI-MS

UPS Features & Benefits :
- Intelligent battery management
- Battery failure notification
- Safety-agency approved
- Battery-protected and surge-only outlets
- LED Indicators
- Audible alarms
- Boost Automatic Voltage Regulation (AVR)
- Cold-start capable
- Automatic self-test
- Quick Mute
- Voltage Sensitivity Adjustment
- PowerChute Personal Edition Software

Technical Specifications :
- Max Configurable Power (Watts) : 1.2kWatts / 2.2kVA
- Output Frequency (sync to mains) : 50/60 Hz +/- 1 Hz Sync to mains
- Topology : Line interactive
- Waveform type : Stepped approximation to a sinewave
- Transfer Time : 6 ms typical : 10 ms maximum
- Input frequency : 50/60 Hz +/- 5 Hz Auto-sensing
- Input voltage range for main operations : 140 - 300 (230 V) VAC
- Input Power Factor at Full Load : 0.54
- Battery type : Lead-acid battery
- Typical recharge time : 8hour(s)
- Type Battery : 12, 9aH x 2
- Expected Battery Life (years) : 1 – 2
- Battery Volt-Amp-Hour Capacity : 216
- Control panel : LED Status display with on line : on battery
- Audible Alarm : Alarm when on battery : distinctive low battery alarm
- Surge energy rating : 273Joules
- Data Line Protection : RJ45 10/100/1000 Base-T Ethernet protection
- Physical Maximum (Height x Width x Depth) : 190MM x 140MM x 390MM
- Physical Shipping (Height x Width x Depth) : 297MM x 235MM x 495MM
- Physical Net Weight : 12.3KG
- Physical Shipping Weight : 13.3KG
- Protection Class : IP20
- Operating Temperature : 0 - 40 °C
- Standard warranty : 2 years repair or replace

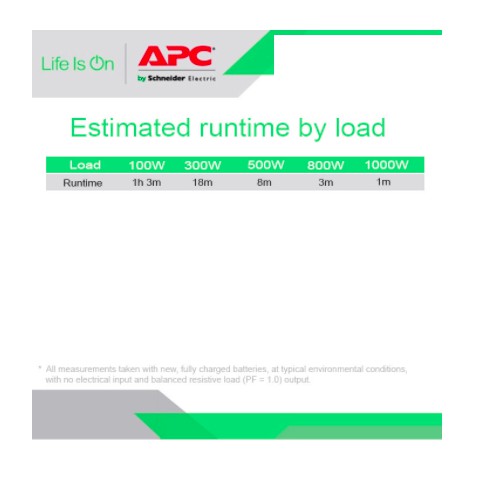

Gambar produk
