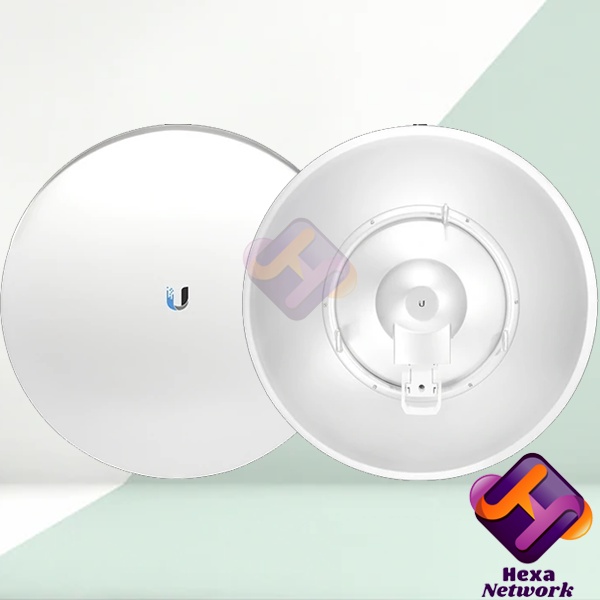

Detail Ubiquiti RD-5G31-AC Rocket Dish AC 5GHz 31dBi
The Ubiquiti RocketDish 5G31AC is a Carrier Class Dish Antenna that was designed to seamlessly integrate with Rocket M radios (sold separately).
Ubiquiti RocketDish Key Features AirMax Carrier Class 2x2 PtP Bridge Dish Antenna Models: RD-5G-30, RD-5G-34, RAD-2RD (Radome Only), RAD-3RD (Radome Only) Ultimate in RF Performance Integrated Mount lets you easily snap Rocket M into place Product Model Number: RD-5G31-AC Rocket M combines the two brains in one robust unit; pair Rocket M with Ubiquiti RocketDish to create powerful 2x2 MIMO PtP bridging applications. This seamless integration gives network architects unparalleled flexibility and convenience.
Specifications RocketDish RD-5G31-AC
Dimensions
748 x 748 x 349 mm (29.45 x 29.45 x 13.74")
Weight
7.6 kg (16.76 lb)
(Mount Included)
Frequency
5.1 - 5.8 GHz
Gain
31 dBi
Max. VSWR
1.4:1
Wind Survivability
200 km/h (125 mph)
Wind Loading
1,028 N @ 200 km/h (231 lbf @ 125 mph)
Polarization
Dual Linear
Cross-Pol Isolation
35 dB Min.
ETSI Specification
EN 302 326 DN2
Mounting
Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
