Ubiquiti unifi ac lite / uap-ac-lite / uap ac lite

Detail Ubiquiti unifi ac lite / uap-ac-lite / uap ac lite

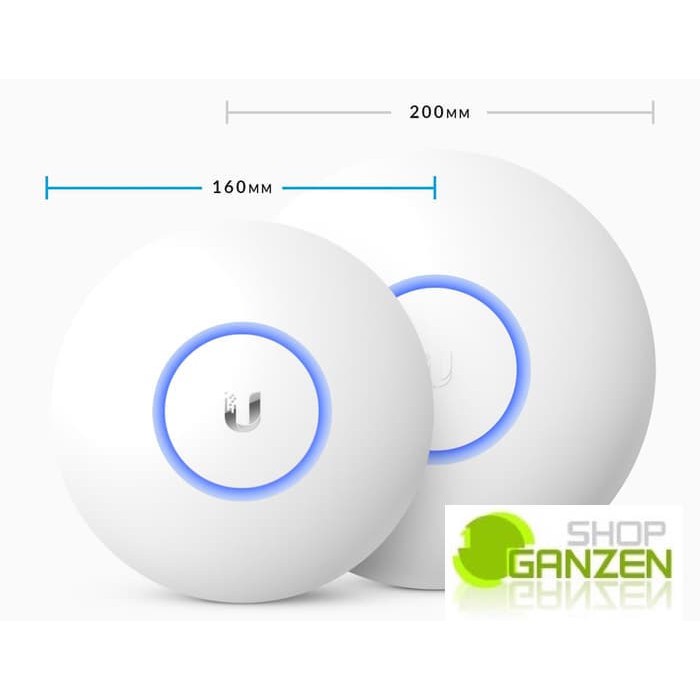

Dimensions 160 x 160 x 31.45 mm (6.30 x 6.30 x 1.24")
Weight
With Mounting Kits
170 g (6.0 oz)
185 g (6.5 oz)
Networking Interface (1) 10/100/1000 Ethernet Port
Buttons Reset
Power Method 802.3af/A PoE
24V Passive PoE (Pairs 4, 5+; 7, 8 Return)
Power Supply 24V, 0.5A Gigabit PoE Adapter*
Power Save Supported
Maximum Power Consumption 6.5W
Maximum TX Power
2.4 GHz
5 GHz
20 dBm
20 dBm
Antennas (2) Dual-Band Antennas, 3 dBi Each
Wi-Fi Standards 802.11 a/b/g/n/ac
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID Up to 8 per Radio
Mounting Wall/Ceiling (Kits Included)
Operating Temperature -10 to 70° C (14 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
* Only the single-pack of the UAP-AC-LITE includes a PoE adapter.
Advanced Traffic Management
VLAN 802.1Q
Advanced QoS Per-User Rate Limiting
Guest Traffic Isolation Supported
WMM Voice, Video, Best Effort, and Background
Concurrent Clients 250+
Supported Data Rates (Mbps)
Standard Data Rates
802.11ac 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps

Gambar produk
