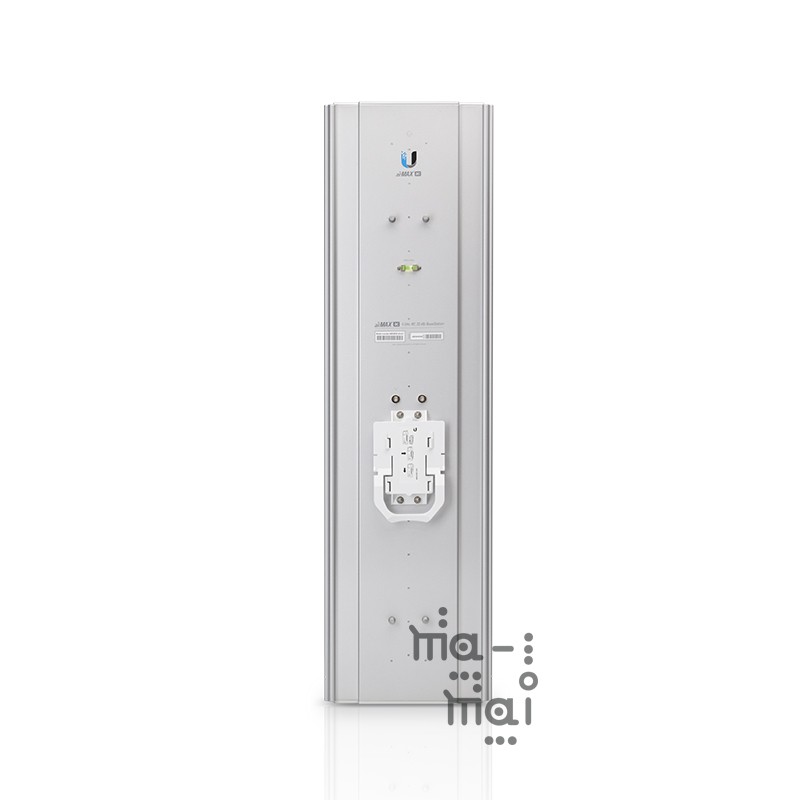

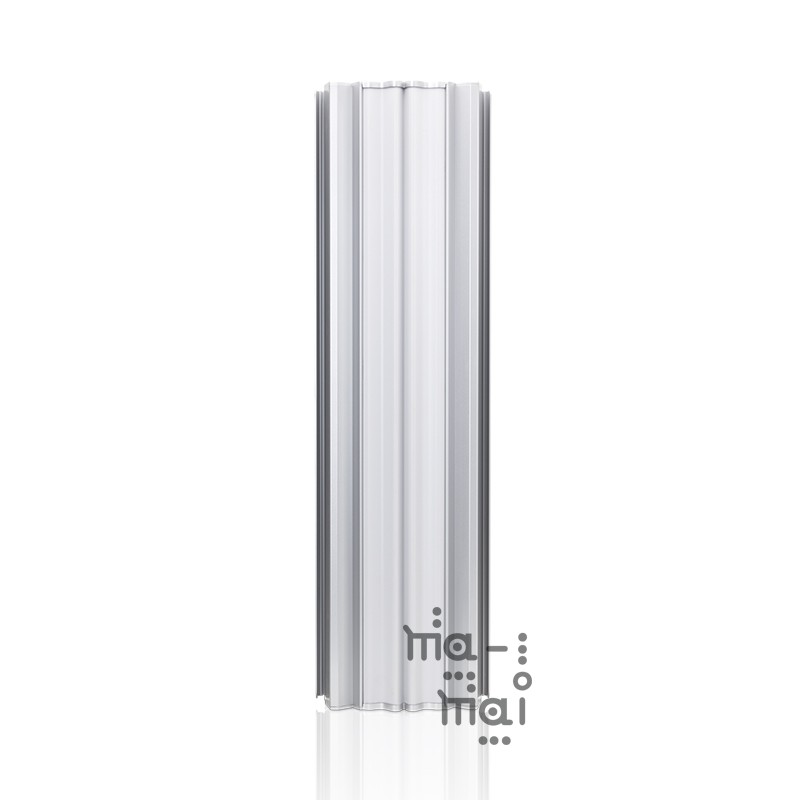

Ubiquiti airMAX Antenna AM‑5AC22‑45 5GHz , 22dBi, 45

Merek: Ubiquiti Networks | Lihat selengkapnya produk Komputer & Aksesoris dari Ubiquiti Networks
Komputer & Aksesoris > Komponen Network > Modem & Router Wireless > Ubiquiti airMAX Antenna AM‑5AC22‑45 5GHz , 22dBi, 45
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:Kurnia Abadi SemestaLihat semua produk Komputer & Aksesoris oleh Kurnia Abadi Semesta
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail Ubiquiti airMAX Antenna AM‑5AC22‑45 5GHz , 22dBi, 45

Terima kasih Sudah berkunjung di ma-mai.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

5GHz AirMax BaseStation, 22dBi, 45 deg, AC

AM-5AC22-45

airMAX® ac 2x2 BaseStation Sector Antenna The airMAX® ac Sector Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket™5ac radios in Point‑to‑MultiPoint (PtMP) networks. They are compatible with RocketM5 models; however, optimal performance requires the Rocket5ac.

AM-5AC22-45
Dimensions (mm) 750 x 215 x 94
Weight 6 kg
Frequency Range 5.10 - 5.85 GHz
Gain 22 dBi
HPOL Beamwidth 45° (6 dBi)
VPOL Beamwidth 45° (6 dBi)
Electrical Beamwidth 4°
Electrical Downtilt 2°
Max. VSWR 1.5:1
Wind Survivability 200 km/h (125 mph)
Wind Loading 347 N @ 200 km/h (78 lbf @ 125 mph)
Polarization Dual-Linear
Cross-pol Isolation 30 dB Min.
ETSI Specification EN 302 326 DN2
Mounting Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included

Gambar produk

Ubiquiti airMAX Antenna AM‑5AC22‑45 5GHz , 22dBi, 45
Ubiquiti airMAX Antenna AM‑5AC22‑45 5GHz , 22dBi, 45
Ubiquiti airMAX Antenna AM‑5AC22‑45 5GHz , 22dBi, 45
Ubiquiti airMAX Antenna AM‑5AC22‑45 5GHz , 22dBi, 45
Lihat lebih banyak informasi produk
