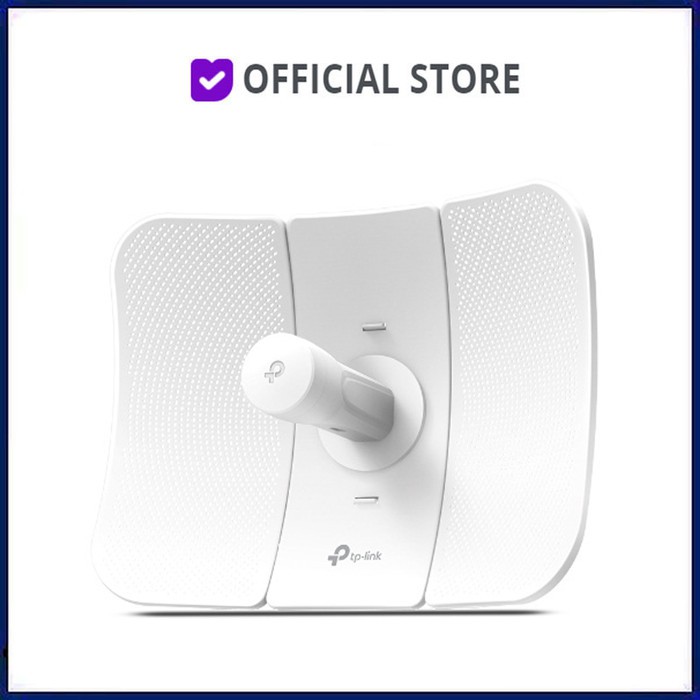

TP-Link CPE610 TPLink 5GHz 300Mbps 23dBi Outdoor CPE Antenna Antena

Detail TP-Link CPE610 TPLink 5GHz 300Mbps 23dBi Outdoor CPE Antenna Antena

HARDWARE FEATURES
Processor
Qualcomm 560MHz CPU, MIPS 74Kc

Memory
64MB DDR2 RAM,8MB Flash

Interface
1 10/100Mbps Shielded Ethernet Port (LAN/POE)
1 Reset Button

Power Supply
Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
Voltage range: 16-27VDC

Dimensions 360 x 280 x 207 mm (14.4 x 11.0 x 8.1 in.) (No mount)
Antenna Gain 23dBi
Antenna Beamwidth 9(Azimuth), 7(Elevation)
Protection 15KV ESD Protection
6KV Lightning Protection

Enclosure
Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof design

WIRELESS FEATURES
Wireless Standards IEEE 802.11a/n
Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
Wireless Speeds Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
Frequency 5.15~5.85GHz
Transmit Power Max. 29dBm/790mW (Adjustable power by 1dBm)

SOFTWARE FEATURES
Operating Modes AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP Client)
Network Configuration WAN: Static/Dynamic/PPPoE/L2TP/PPTP
LAN: Static/Dynamic/DHCP
Forwarding: DMZ/ALG/UPnP/Virtual Server/Port Trigger
Security: SPI Firewall/ Ping Forbidden/VPN/DoS Protection
Access Control
Static Routing
Bandwidth Control
IP & MAC Binding
Wireless Configurations Pharos MAXtream TDMA Technology
Selectable Channel Width: 5/10/20/40MHz
Auto Channel Selection
Transmit Power Control
Dynamic Frequency Selection(DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging(AP Mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter

Package Contents
- Outdoor Wireless CPE
- 24V 0.5A Passive PoE Adapter
- Pole Mounting Straps
- AC Power Cord
- Installation Guide
