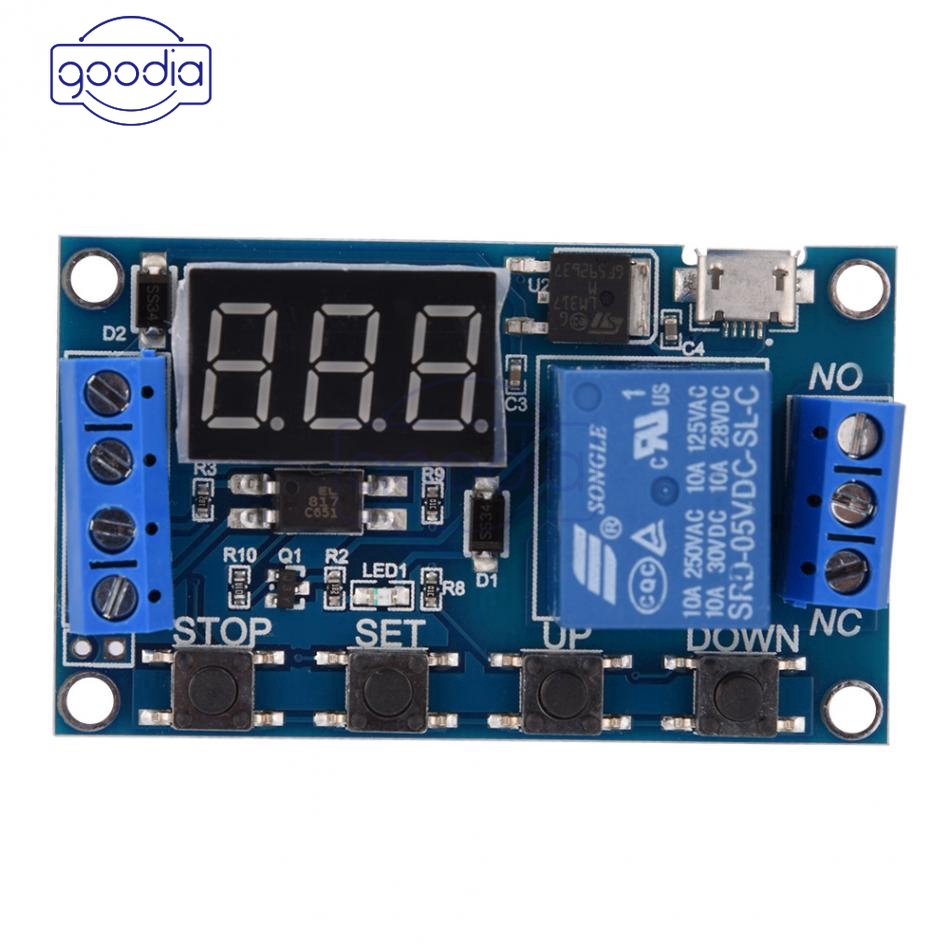

Detail Time delay relay Saklar Kontrol Timer Relay Digital Led Micro USB 5V
【Friends Welcome to #OlahragaOutdoorElektronik# store , If you love our products, please click and give me five-star✧✧✧✧✧thanks. My product is very good quality, my price is also very Cost-effective, my friends, just enjoying your shopping here, come on baby!】
Why choose our store? » 〖 FREE SHIPPING 〗 RM0.00 for order > IDR232,000 (mix products) from our store. » 〖 READY STOCK 〗 for all of our products. » 〖 SAME DAY POST 〗 for all orders made before 5pm. » 〖 FAST DELIVERY 〗 post from Overseas, normally shipping out 1-2 days. » 〖 WARRANTY PROGRAM 〗 if you are not satisfy with our product or whatsoever, please do contact us to learn more without hesitate » Working hour : Mon - Sta @ 09:00 -20:00 »〖 Follow #OlahragaOutdoorElektronik# 〗 You can get IDR2000 discount Highlights: 1. Wide voltage power supply (6 ~ 30V), supports microUSB 5.0V power supply, easy to use; 2. The interface is clear and simple, powerful, easy to understand, meet almost all your needs; 3. The emergency stop function (“STOP” key);With reverse polarity protection, reverse polarity will not burn the product. 4. Increase the sleep mode, if this mode is enabled, without any operation within 5 minutes, then automatically turn off the monitor, any key wake-up; 5. You can set a different OP, CL, LOP parameters, which are independent of each other, and are automatically saved; 6. After the module is powered down, all parameter settings are not lost.
Product parameters: 1: Operating voltage: 6--30V, support microUSB 5.0V power supply 2: Trigger Source: Active-high (3.0V-24V), have optocoupler isolation, can improve the system's anti-jamming capability (customers can also shorting common ground). 3: Output capability: You can control the DC 30VDC 5A or 220VAC 5A device. 4: Quiescent Current: 20mA; Operating Current: 50mA 5: life: more than 10 million times; Working temperature: -40-85 ℃; Size: 6: with optocoupler isolation, enhanced anti-jamming capability, industrial grade board.
Special Note: The relay outputs are passive contact, just a switch.
Package Included : 1 x Micro USB 5V LED Automation Delay Timer Control Switch Relay Module Display
#Digital #LEDTrigger #Delay #CycleTimer #Control #Switch #RelayModule Delivery Info : » All items are dispatched same day from Monday - Saturday (except Sunday & public holiday). » Our order cut off time is 5pm, any order after 5pm will dispatch the following day. » Please make sure that the address you provided is accurate, we DO NOT responsible for any mistakes that did by the customer.
【After sales policy】 We will provide a free replacement or repair service in the following cases: 1. We make logistics mistakes 2.We send the wrong product 3.Product have quality problems which is not damaged by human factor within warranty period, the warranty period will depends on specific product warranty 4.You receive a fake one
»Still have questions? ….Let's CHAT NOW!
