Description:

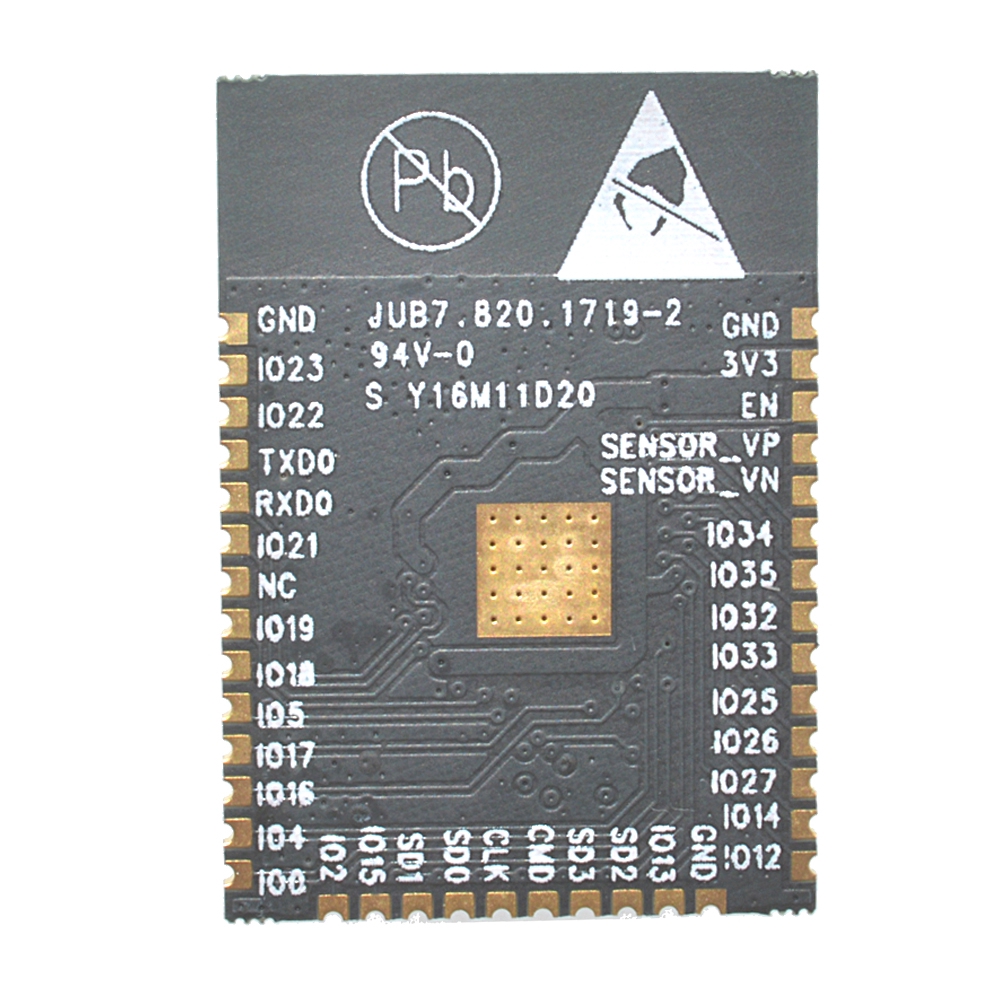

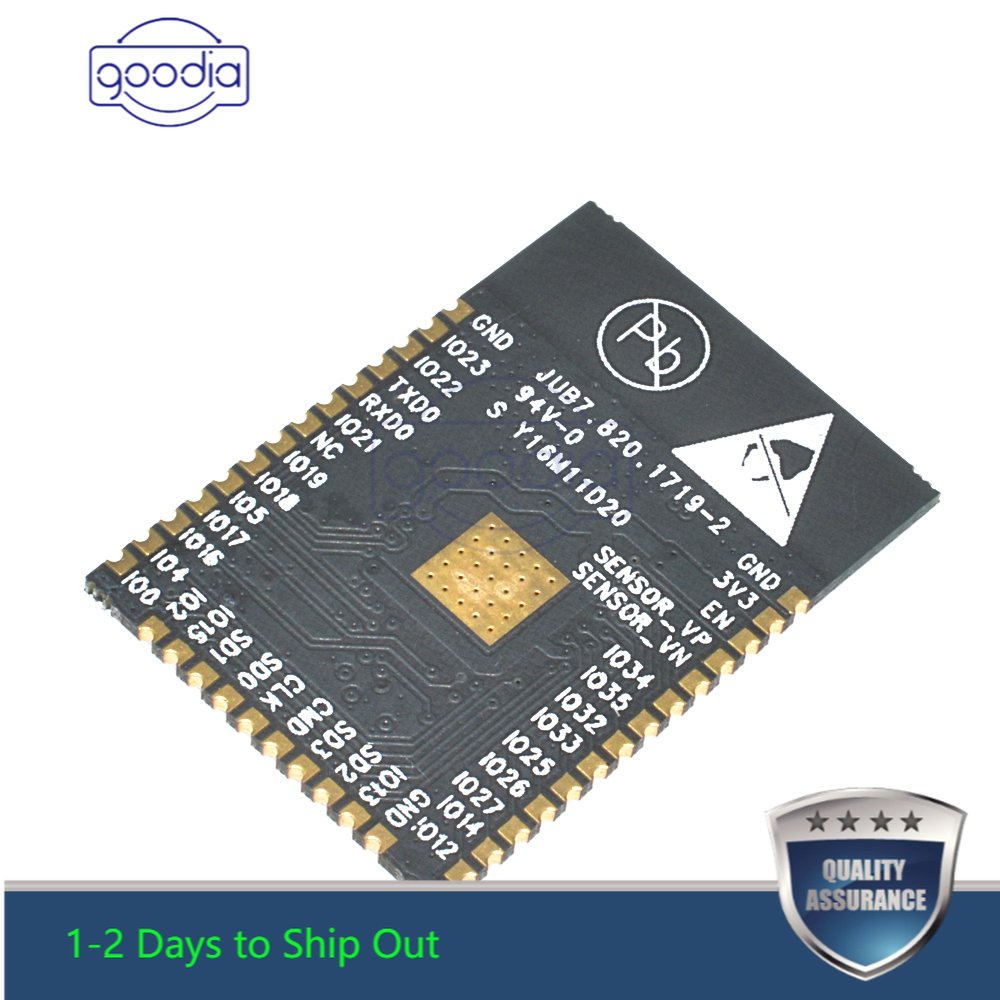

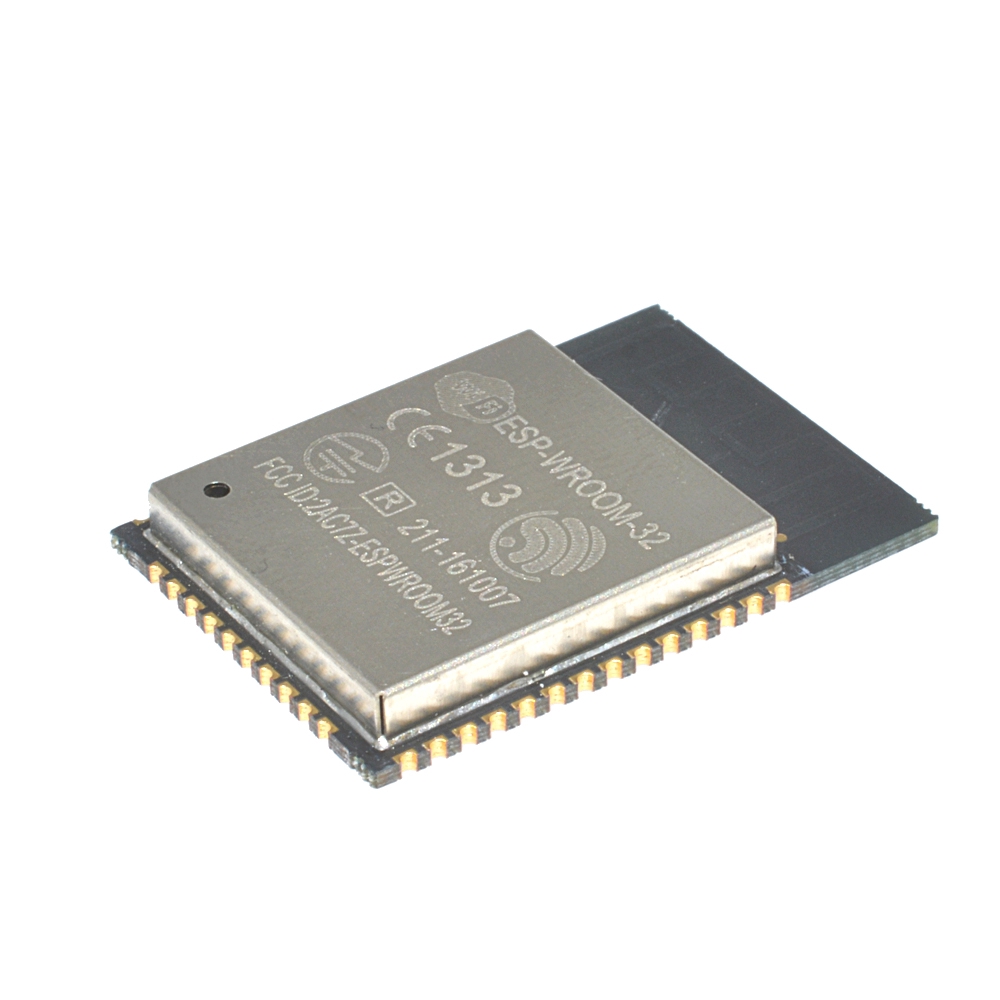

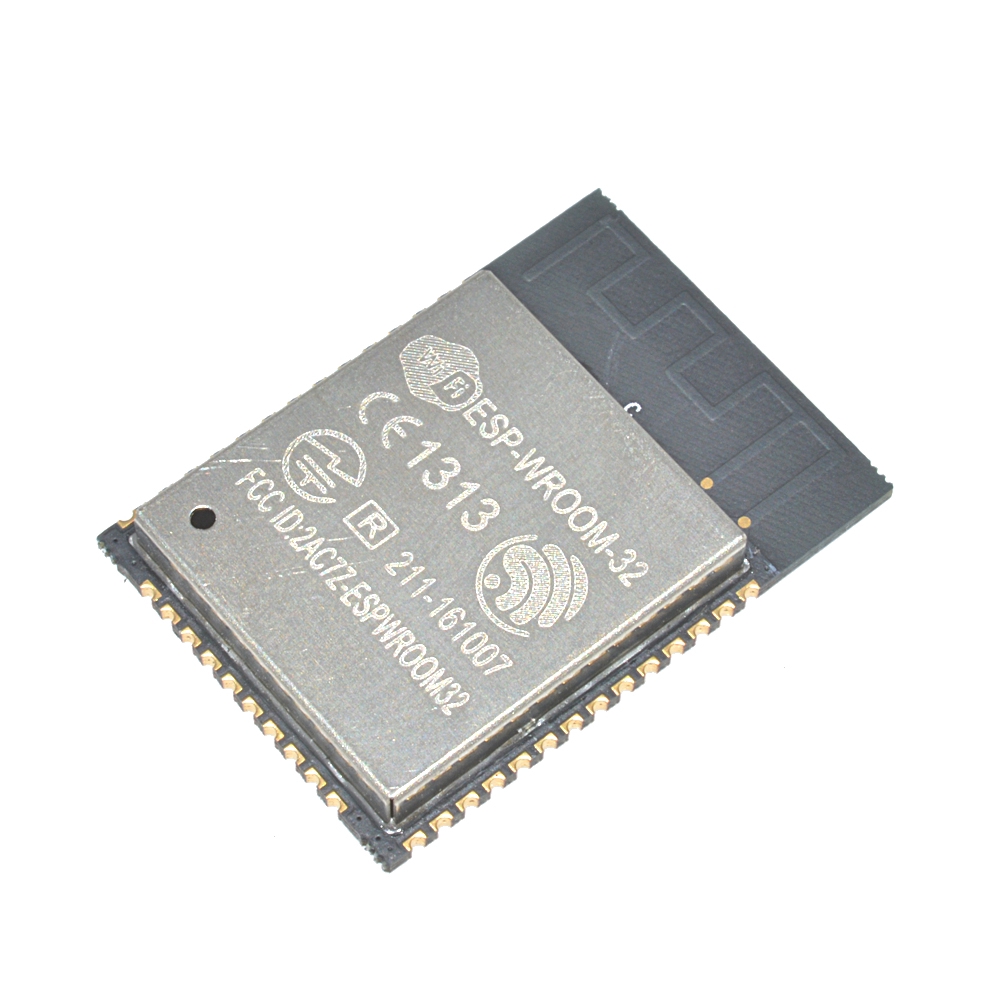

ESP-WROOM-32 is Powered by Espressif’s most advanced SoC, the ESP-WROOM-32 features high performance, a wide range of peripherals, Wi-Fi and Bluetooth radio, which provide a complete solution tailored to advanced IoT applications.
240 MHz dual core Tensilica LX6 microcontroller with 600 DMIPS
Integrated 520 KB SRAM
Integrated 802.11BGN HT40 Wi-Fi transceiver, baseband, stack and LWIP
Integrated dual mode Bluetooth (classic and BLE)
16 MByte flash
2.2V to 3.6V operating voltage
-40°C to +125°C operating temperature
On-board PCB antenna / IPEX connector for external antenna
Supports sniffer, station, softAP and Wi-Fi direct modes
Max data rate of 150 Mbps@11n HT40, 72 Mbps@11n HT20, 54 Mbps@11g, and 11 Mbps@11b
Maximum transmit power of 19.5 dBm@11b, 16.5 dBm@11g, 15.5 dBm@11n
Minimum receiver sensitivity of -98 dBm
135 Mbps UDP sustained throughput
2.5 µA deep sleep current

Wi-fi 802.11 b/g/n/e/i
802.11 n (2.4 GHz), up to 150 Mbps
802.11 e: QoS for wireless multimedia technology
WMM-PS, UAPSD
A-MPDU and A-MSDU aggregation
Block ACK
Fragmentation and defragmentation
Automatic Beacon monitoring/scanning
802.11 i security features: pre-authentication and TSN
Wi-Fi Protected Access (WPA)/WPA2/WPA2-Enterprise/Wi-Fi Protected Setup (WPS)
Infrastructure BSS Station mode/SoftAP mode
Wi-Fi Direct (P2P), P2P Discovery, P2P Group Owner mode and P2P Power Management
UMA compliant and certified
Antenna diversity and selection
Compliant with Bluetooth v4.2 BR/EDR and BLE specification

Bluetooth Class-1, class-2 and class-3 transmitter without external power amplifier
Enhanced power control
+10 dBm transmitting power
NZIF receiver with -98 dBm sensitivity
Adaptive Frequency Hopping (AFH)
Standard HCI based on SDIO/SPI/UART
High speed UART HCI, up to 4 Mbps
BT 4.2 controller and host stack
Service Discover Protocol (SDP)
General Access Profile (GAP)
Security Manage Protocol (SMP)
Bluetooth Low Energy (BLE)
ATT/GATT
HID
All GATT-based profile supported
SPP-Like GATT-based profile
BLE Beacon
A2DP/AVRCP/SPP, HSP/HFP, RFCOMM
CVSD and SBC for audio codec
Bluetooth Piconet and Scatternet

ESP32 ESP8266
Ethernet MAC Interface Nicht vorhanden
GPIOs für 10 Touch-Sensoren Nicht vorhanden
Temperatur-Sensor (on-chip) Nicht vorhanden
Remote-Controller-Funktionalität Nicht vorhanden
Hall-Sensor Nicht vorhanden
Digital-to-Analog Converter (DAC) Nicht vorhanden
CAN 2.0 Nicht vorhanden
Analog-to-Digital Converter (ADC): 16 Kanäle mit 12-Bit
SAR-ADC mit Unterstützung für einen Low-Noise Amplifier (LNA) 10-bit ADC, kein LNA
2 I2C-Schnittstellen 1 I2C-Schnittstelle
16 Kanäle für PWM 8 Kanäle für PWM
GPIOs (General-Purpose Input/Output): 36 GPIOs: 17
4 SPI-Schnittstellen mit Quad-SPI und maximal 80 MHz 3 SPI-Schnittstellen mit Quad-SPI und maximal 80 MHz

Package Included:
1PC*Espressif ESP32 Inside ESP-WROOM-32 WLAN & BLE IoT Modul - 2.Gen ESP8266
