Switch hub tp-link 5 port metal 1Gbps gigabit easy smart lan rj45 ethernet tl-sg105e - tplink sg-105e

Detail Switch hub tp-link 5 port metal 1Gbps gigabit easy smart lan rj45 ethernet tl-sg105e - tplink sg-105e

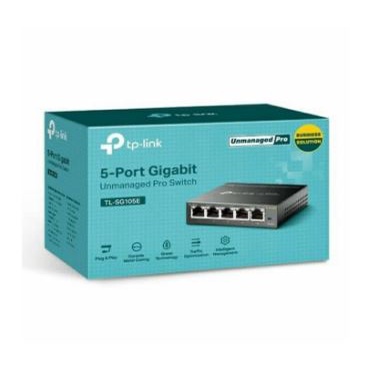

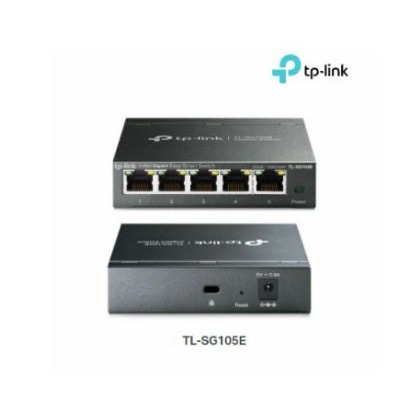

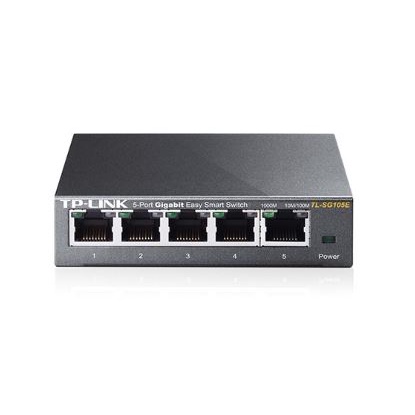

TP-LINK TL-SG105E
5-Port Gigabit Easy Smart Switch

- 5 10/100/1000Mbps RJ45 ports
- Plug and play, with no configuration required
- Durable metal housing for physical robustness
- Easy management through the web interface or standalone Windows utility
- Green technology reduces power consumption

HARDWARE FEATURES
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Interface 5 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Fan Quantity Fanless
Power Supply 100-240VAC, 50/60Hz
Dimensions (W X D X H) 3.9 * 3.9 *1.0 in. (100 * 98 *25 mm)
PERFORMANCE
Packet Forwarding Rate 7.4Mpps
MAC Address Table 2K
Packet Buffer Memory 1.5Mb
Jumbo Frame 15KB
SOFTWARE FEATURES
Quality of Service Support Port-based/802.1p/DSCP priority 2
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Transmission Method Store-And-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents TL-SG105E
Power Cord
Installation Guide
Resource CD
Rubber Feet
System Requirements Microsoft Windows for running Utility
Environment Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Package Contents :
- TL-SG105E
- Power Adapter
- Installation Guide
- Rubber Feet

Ready Stock !
