TP-LINK MC100CM 10/100Mbps Multi-Mode Media Converter

Merek: TP-Link | Lihat selengkapnya produk Komputer & Aksesoris dari TP-Link
Komputer & Aksesoris > Komponen Network > Switch Internet & PoE > TP-LINK MC100CM 10/100Mbps Multi-Mode Media Converter
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:Ganzen_shopLihat semua produk Komputer & Aksesoris oleh Ganzen_shop
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail TP-LINK MC100CM 10/100Mbps Multi-Mode Media Converter

TP-Link MC100CM
10/100Mbps Multi-Mode Media Converter

- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Extends fiber distance up to 1.2 miles (2km)

MEDIA CONVERTER & MODULE
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Basic Function Half/Full-Duplex transfer mode for FX port
Full Duplex Flow Control (IEEE 802.3x)
Half Duplex Flow Control (Backpressure)
Extends fiber distance up to 2km
Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
Ports 1 100M SC/UPC port
1 100M RJ45 port (Auto MDI/MDIX)
Wave Length 1310nm
Network Media 10BASE-T UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Network Media 100BASE-T UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
Network Media 100BASE-FX Multi-mode Fiber
LED Indicators PWR, FDX/Col, Link/Act, SPD
Dimensions (W*D*H) 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
Power Supply External power supply
Max Power Consumption 2.5W
Safety & Emission FCC, CE, RoHS
Environment Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

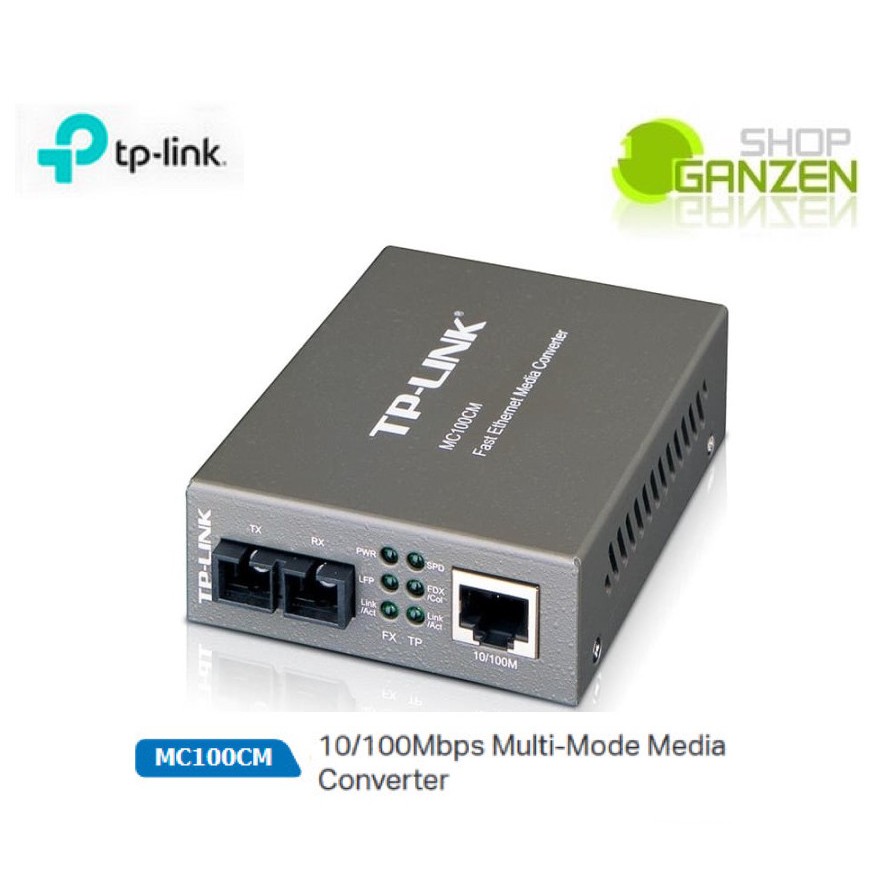

Gambar produk

TP-LINK MC100CM 10/100Mbps Multi-Mode Media Converter
TP-LINK MC100CM 10/100Mbps Multi-Mode Media Converter
