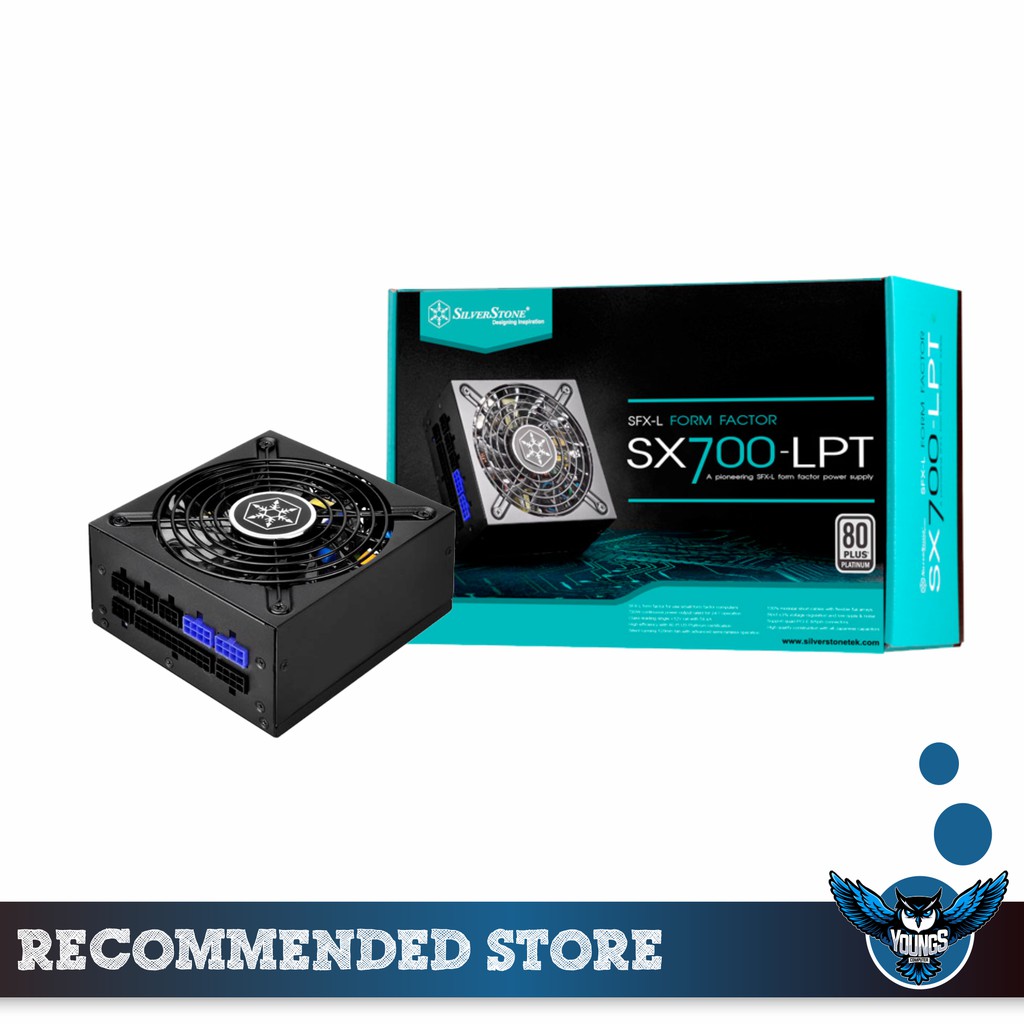

Detail PSU SILVERSTONE SFX 700W 80+ Platinum Full Modular SX700-LPT
Extra bubble wrap dan packing kayu untuk keamanan paket agan agar barang lebih aman pada saat proses pengiriman (REKOMENDASI) - Packing Kayu https://seller.shopee.co.id/portal/product/8001513386/ - Extra Bubble Wrap https://seller.shopee.co.id/portal/product/5241237073/
SPECIFICATION :
Model No. SST-SX700-LPT
Max. DC Output 700W (Peak 750W)
Power density 678W per liter
Load Range +3.3V +5V +12V +5VSB -12V
Max.(Amps) 22A 22A 58.4A 3.0A 0.3A
Peak (Amps) / / / / /
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±3% ±3% ±3% ±5% ±10%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 50mA 50mA 120mV 50mV 120Mv
Color Black(Lead-Free Paint)
Combined +3.3V & +5V 120W
Combined +12V 700W
Input Voltage 90V ~ 264V
Input Frequency Range 47Hz ~ 63Hz
PFC Active PFC(PF>0.95 at full load)
Efficiency 89% ~ 92% at 20% ~ 100% loading
MTBF 100,000 hours
Operating temperature 0°C ~ 40°C
Protection Over current protection Over power protection Over voltage protection Short circuit protection Under voltage protection Over temperature protection
Connectors 1 x 24 / 20-Pin motherboard connector(300mm) 1 x 8 / 4-Pin EPS / ATX 12V connector(400mm) 2 x 8 / 6-Pin PCIE connector(400mm / 150mm) 2 x 8 / 6-Pin PCIE connector(550mm / 150mm) 6 x SATA connector("300mm / 200mm / 100mm" x 2) 3 x SATA connector(600mm / 150mm / 150mm) 3 x 4-Pin Peripheral connector(300mm / 200mm / 200mm) 1 x 4-Pin Floppy adapter connector(100mm)
Cooling System Single 120mm FDB* silent fan
Form factor SFX-L
Noise Level 0 ~ 36 dBA
Dimension 125 mm (W) x 63.5 mm (H) x 130 mm (D) 4.92" (W) x 2.5" (H) x 5.12" (D)
Weight 1.68 Kg
Certification 80 PLUS Platinum
Other GPU Support list Compatible with ATX12V v2.4
Note : - Wajib tanyakan stok sebelum order melalui Diskusi/ Chat (Ketersediaan Terbatas). - Spesifikasi lengkap dapat dicek melalui website resmi masing- masing produk. - Gambar hanya ilustrasi, versi produk dapat berbeda tergantung kebijakan vendor, namun tidak mengurangi spesifikasi dan fungsi produk. - Simpan dus dan invoice pembelian untuk garansi. - Jika belum paham silahkan tanya via Chat. - HATI HATI tertipu, barang murah yang belum tentu original. Kami jamin produk yang kami jual adalah barang
