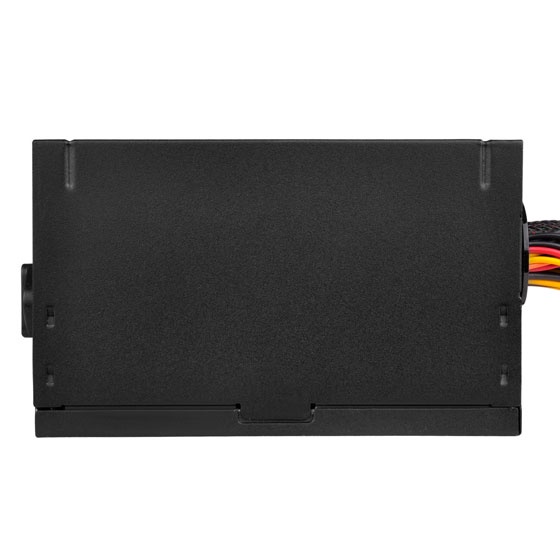

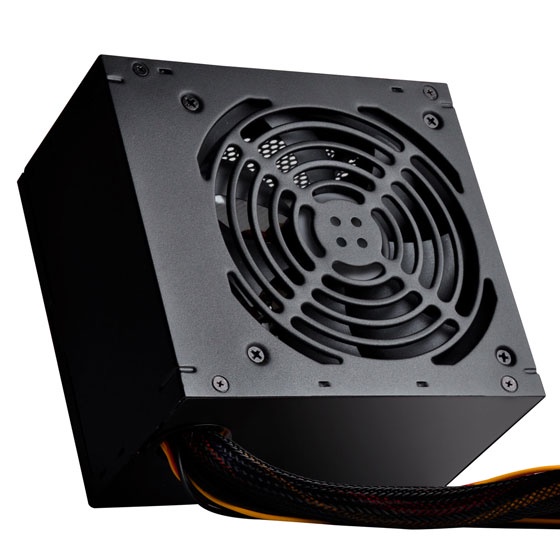

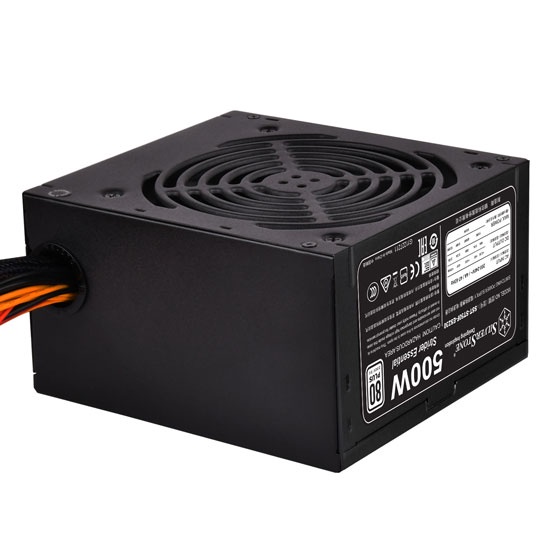

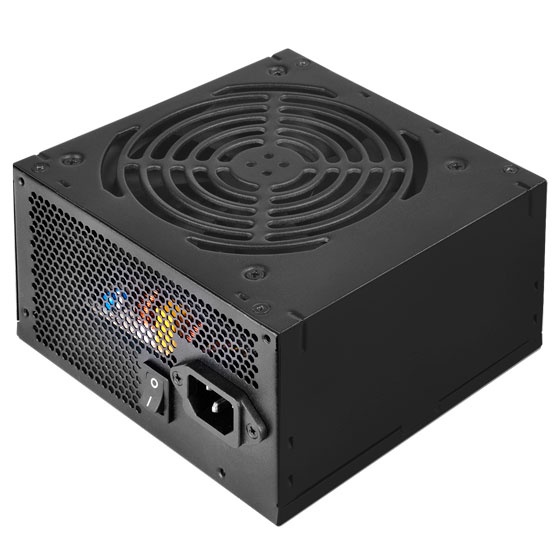

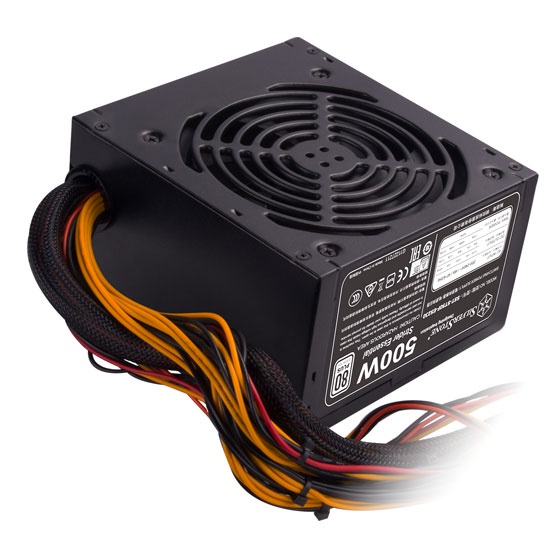

PSU SILVERSTONE 500 Watt 80+ ST50F-ES230 Power Supply

Detail PSU SILVERSTONE 500 Watt 80+ ST50F-ES230 Power Supply

Mohon menanyakan stock terlebih dahulu sebelum membeli
Terimakasih

SPECIFICATION :

Model No.
SST-ST50F-ES230

Max. DC Output
500W

Power density
277W per liter

Combined +3.3V & +5V
110W

Combined +12V
456W

Input Voltage
180 ~ 264Vrms

Input Frequency Range
47Hz ~ 63Hz

PFC
Active PFC.PF>0.9 at Full Load

Efficiency
82%~85% @ 20% ~ 100% loading

MTBF
100,000 hours

Operating temperature
0C ~ 40C

Protection
Over power protection
Over voltage protection
Short circuit protection

Connectors
1 x 24 / 20-Pin motherboard connector500mm
1 x 8 / 4-Pin EPS / ATX 12V connector750mm
2 x 8 / 6-Pin PCIE connector"500mm / 150mm"
2 x SATA connector and
1 x 4-Pin Peripheral connector and
1 x 4-Pin Floppy connector 500mm / 150mm / 150mm / 150mm
2 x SATA connector and
2 x 4-Pin Peripheral connector500mm / 150mm / 150mm / 150mm

Cooling System

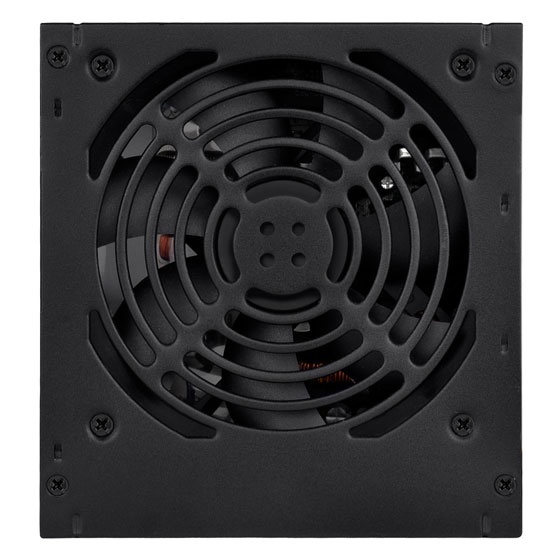

Silent 120mm fan

Noise Level
18 dBA minimum

Dimension
150 mm (W) x 86 mm (H) x 140 mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D)

Weight
1.31kg

Certification
80 PLUS

Other
GPU Support list
Compatible with ATX12V v2.4

Gambar produk
