prewired gitar emerson esquire 3 way 500K original wiring set potensio jack kapasitor switch

Detail prewired gitar emerson esquire 3 way 500K original wiring set potensio jack kapasitor switch

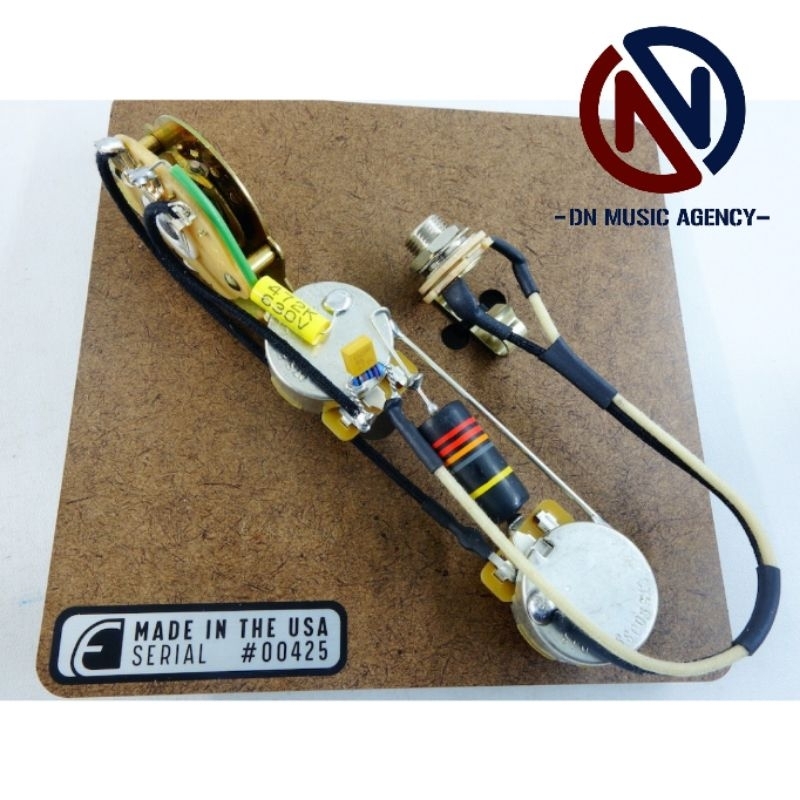

wiring set gitar Emerson Esquire 3-Way 500K Pre Wired Kit

100% authentic emerson parts
made in USA .
GARANSI UANG KEMBALI JIKA BARANG TIDAK SESUAI IKLAN.

Description :
The Emerson 3-Way Esquire Prewired kit gives you 3 unique sounding positions, and with the use of our Emerson Pro pots the taper and sweep of the volume and tone pots allow for the perfect tailoring of both volume and tone to your liking.

The 1st Position (Volume Only) is great for a straight up base tone.

Switch to the 2nd position (Standard Volume & Tone) and dial in the tone knob to your liking, giving you enough difference between the 1st positions bypassed tone signal and the 3rd positions fixed capacitor tone.

The 3rd position (Volume & Fixed Capacitor) features a 0.0047uf Paper In Oil capacitor that gives a fixed rolled off tone (Eldred Mod) that is independent of the tone pot. Great for a darker, but still useable tone.

Wired with 22 AWG vintage push-back wire for that vintage look and sound. Soldered connections to the input jack are insulated with heat-shrink to ensure durability and long life. If you are installing this on an import guitar with metric sized pots you may need to ream your control plate holes to accept the slightly larger US-Spec pots and buy US-Spec knobs.



Includes :
(2) Quality CTS Solid Shaft w/.375 (3/8) Shaft Length
(1) Oak Grigsby 3-Way Switch
(1) Switchcraft 1/4 and Mono Input Jack
(1) 0.047uf Emerson Paper in Oil Capacitor (for Normal Tone, Postion #2)
(1) 0.0047uf Capacitor (for Fixed Tone, Postion #3)
(1) Volume Mod
Wiring Diagram

Switch Positions :
Volume Only (Tone Pot out of Circuit)
Standard Volume & Tone (Dial in your Tone pot to your exact liking)
Volume and Fixed 0.0047uf Capacitor for a nice rolled off tone (Tone Pot of Circuit)
