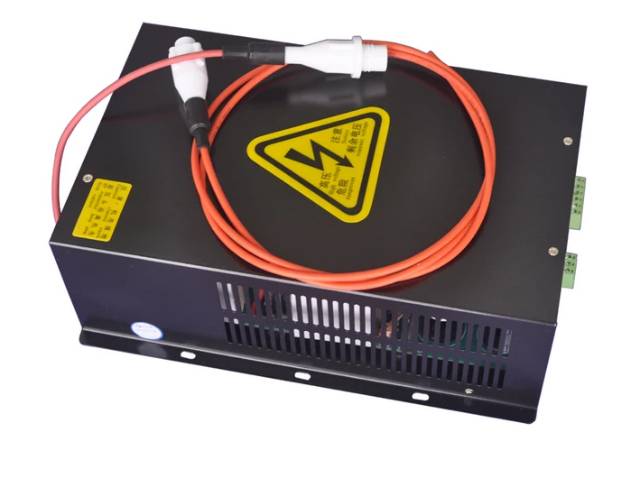

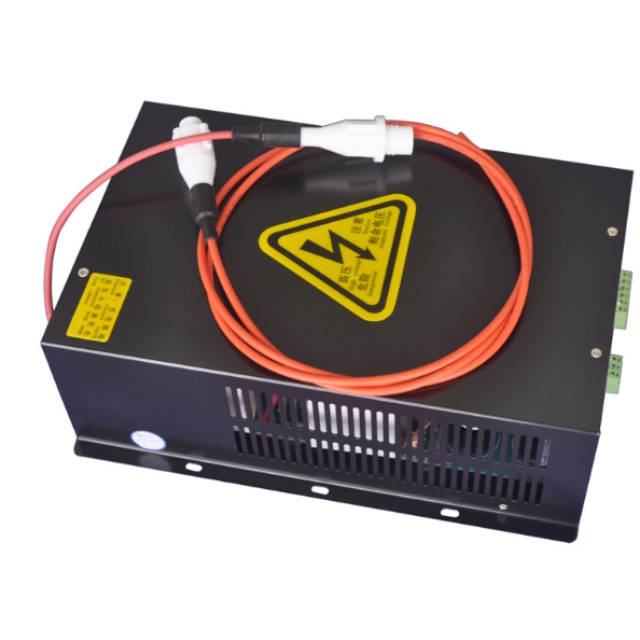

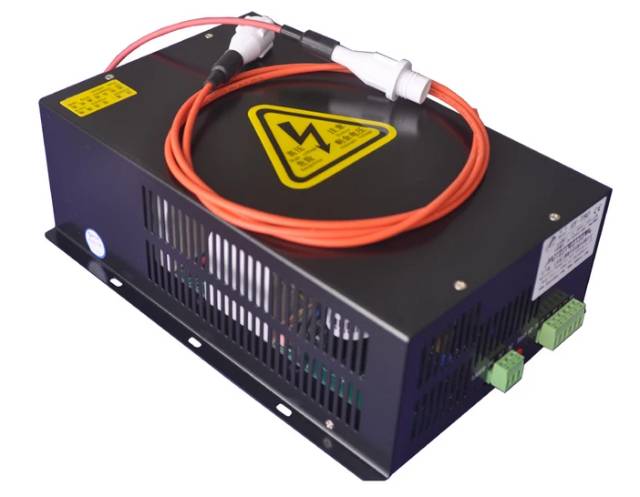

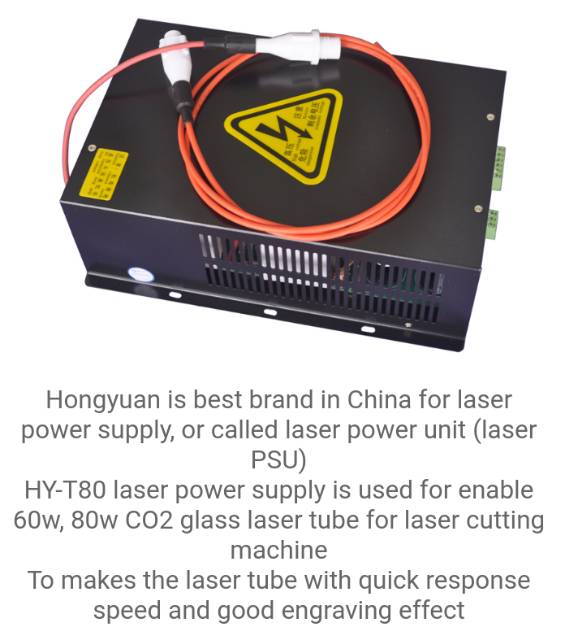

Power Supply Psu 80w mesin laser cutting and engraving

Detail Power Supply Psu 80w mesin laser cutting and engraving

Input Voltage:AC220V
AC frequency: 47440HZ
Cold Surge Current: 60A(AC220V Input)
Current Leakage:0.7mAAC220V Input
Output Max Output Voltage: DC 40KV
Max Output Current: DC 28mA
Efficiency: 90full load
Mean Time Between Failure (MTBF): 10000H
Response Speed: 1msfrom the switch Signal is given to the output current up to 90% of the setting current

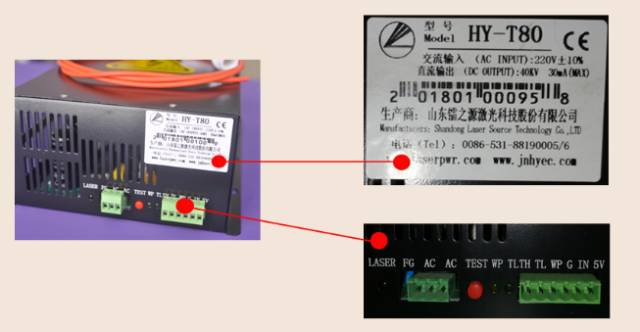

Control Interface: TTL level switch control; high or low effective level can be chosen (details refer to the control terminal specification)
Pressure-proof Input-Output/Input-Shell: AC1500V 10MA 60S; Output negative is connected with machine shell.
Protection: can work in open-circuit condition for a short timeRequire a good protective earthing and avoid arc between the positive and the machine shell

Environmental Operating Temperature-10~40Relative Humidity (RH)90
Cooling Way Force: -Air Cooling (FAC)

Gambar produk
