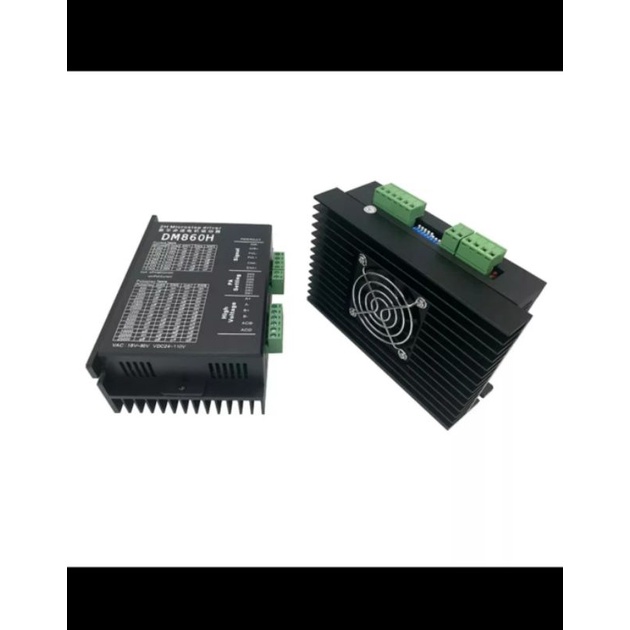

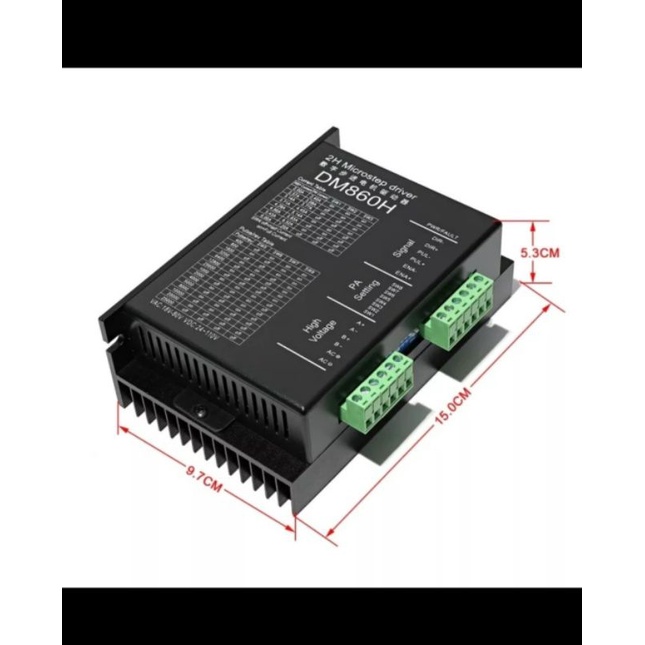

Motor driver DM860H nema 23 nema 34 nema 17 DM860H driver

Detail Motor driver DM860H nema 23 nema 34 nema 17 DM860H driver

Common for 5V and 24V signals
Features: DSP digital dm860h stepper motor driver,
subdivision and heightening to 128 subdivision, suitable
for high subdivision purposes. Applicable to stepping
motor: 2-phase and 4-phase (4-wire, 6-wire and 8-wire) of
57 and 86 types
1.24v-110v DC/18v-80v AC power supply
2. H-bridge bipolar constant phase current drive;
3. Eight output currents with current up to 7.2A are
optional;
4.15 subdivision modes that can be subdivided to 128
are optional;
5. High speed photoelectric isolation of input signal;
6. Standard single pulse interface;
7.Offline hold function;
8. Large cooling fan for efficient heat dissipation;
9. Provide energy-saving semi-automatic current locking
function,
10. Built in temperature protection and overcurrent
protection.

Gambar produk
