Power Amplifier TOA ZA 2120 MPU / ZA-2120MPU

Detail Power Amplifier TOA ZA 2120 MPU / ZA-2120MPU

TOA ZA-2120MPU (120 Watt)
ZA-2120MPUmerupakan power mixer amplifier dengan Mp3 Player memiliki daya output 120Watt, dilengkapi dengan Slot USB & SD Card, berfungsi untuk input music dengan format MP3.

Cocok dipergunakan untuk perkantoran, mall, supermarket, sekolahan, masjid, musholla, pergudangan, pabrik.

Specifications:
Power Source220 - 240 V AC, or 24 V DC
Rated Output120 W
Power Consumption124 W (EN60065), 8 A (DC operation at rated output)
Frequency Response50 - 20,000 Hz (3 dB)
Distortion1% or less at 1 kHz, 1/3 rated power
InputMIC 1: -60 dB*, 600 , balanced, DIN type (5 pins)
MIC 2, 3: -60 dB*, 600 , balanced, phone jack
AUX 1, 2: -20 dB*, 10 k, unbalanced, RCA pin jack
Mute:Contact pin 4 - 5 closure input (for MIC 1)
Output Speaker out:Balanced (floating), M3.5 screw terminal,
distance between barriers: 8.3 mm (0.33")
High impedance:83 (100 V), 42 (70 V)
Low impedance:4 (22 V)
Rec out:0 dB*, 600 , unbalanced, RCA pin jack
Phantom Power DC +21 V (MIC 1)
S/N Ratio 60 dB or more
Tone Control Bass:10 dB at 100 Hz
Treble:10 dB at 10 kHz
MutingMIC 1 overrides other input signals with 0 - 30 dB attenuation by mute terminal
contact in MIC 1 DIN type connector.
Finish Panel:ABS resin, black
Case:Steel plate, black
Dimensions :420 (W) 100.9 (H) 360.3 (D) mm (16.54" 3.97" 14.19")
Weight :10.8 kg (23.81 lb)
Mp3 Player :USB Slot & SD Card Slot

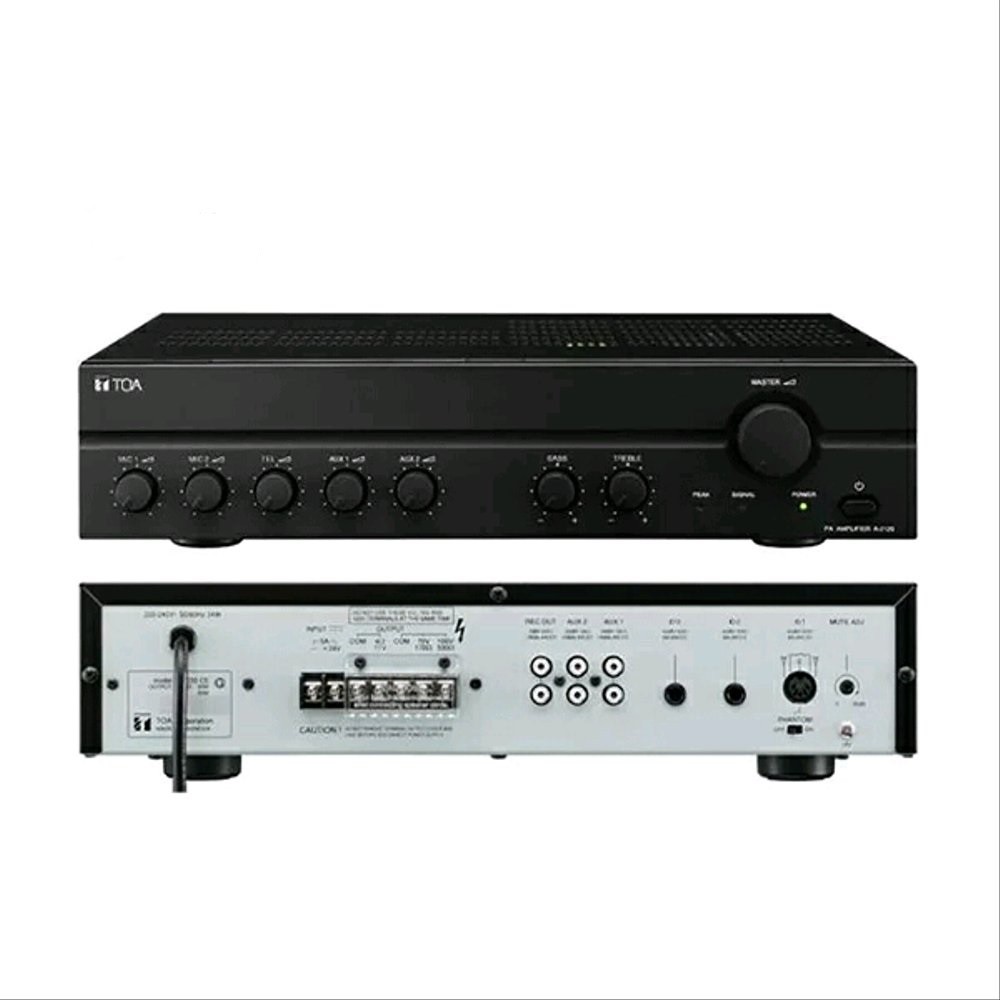

Gambar produk
