Power Amplifier TOA ZA 2240 MPU / ZA-2240 MPU

Detail Power Amplifier TOA ZA 2240 MPU / ZA-2240 MPU

POWER AMPLIFIER TOA ZA 2240 MPU
Spesifik:
Power Source: 220 - 240 V AC, or 24 V DC
Rated Output: 240 W
Power Consumption: 238 W (EN60065), 15 A (DC operation at rated output)
Frequency Response: 50 - 20,000 Hz (3 dB)
Distortion1% or less at 1 kHz, 1/3 rated power
InputMIC 1: -60 dB*, 600 , balanced, DIN type (5 pins)
MIC 2, 3: -60 dB*, 600 , balanced, phone jack
AUX 1, 2: -20 dB*, 10 k, unbalanced, RCA pin jack
Mute: Contact pin 4 - 5 closure input (for MIC 1)
Output Speaker out: Balanced (floating), M3.5 screw terminal,
distance between barriers: 8.3 mm (0.33")
High impedance: 42 (100 V), 21 (70 V)
Low impedance: 4 (31 V)
Rec out:0 dB*, 600 , unbalanced, RCA pin jack
Phantom Power DC +21 V (MIC 1)
S/N Ratio 60 dB or more
Tone Control Bass:10 dB at 100 Hz
Treble: 10 dB at 10 kHz
Muting MIC 1 overrides other input signals with 0 - 30 dB attenuation by mute terminal
contact in MIC 1 DIN type connector.
Ventilation Fan cooling
Finish Panel: ABS resin, black
Case: Steel plate, black
Dimensions: 420 (W) 100.9 (H) 360.3 (D) mm (16.54" 3.97" 14.19")
Weight: 13.2 kg (29.1 lb)
Mp3 Player :USB Slot & SD Card Slot

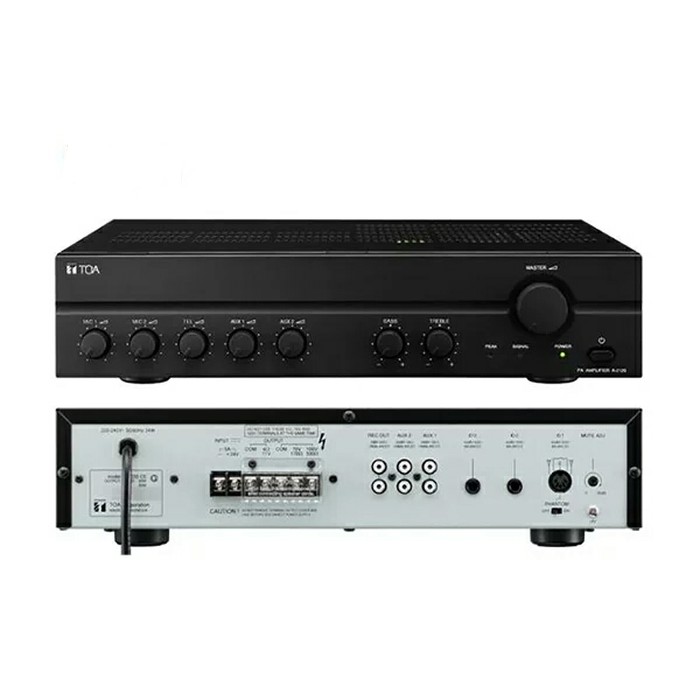

Gambar produk
